5V 2-Channel Relay Module High Low Level Trigger with Optocoupler Isolation Relay Load AC 0-250V 10A DC 0-30V 10A Circuit Switch Board
- Can set high or low level trigger with jumper, to meet the demand of more trigger applications.; With patch optical isolation, strong drive ability and stable performance, the trigger current is 5mA.; With Fault Tolerant Design, humanized terminals, even if the control line is broken, the relay will not take any action.; With green power light, red relay status indicator light, can directly reflect the current module working condition.
+
+
Overview
Specs
Reviews
NOYITO 5V9V12V24V 2-Channel Relay Module High Low Level Trigger User
Manual https: //1drv. ms/b/c/4a0865b22350d05c/IQBc0FAjsmUIIIB
KtwAAAAAAAT
AiufKBNE8ldRKbdVOgzMY? e=5Qrqvd

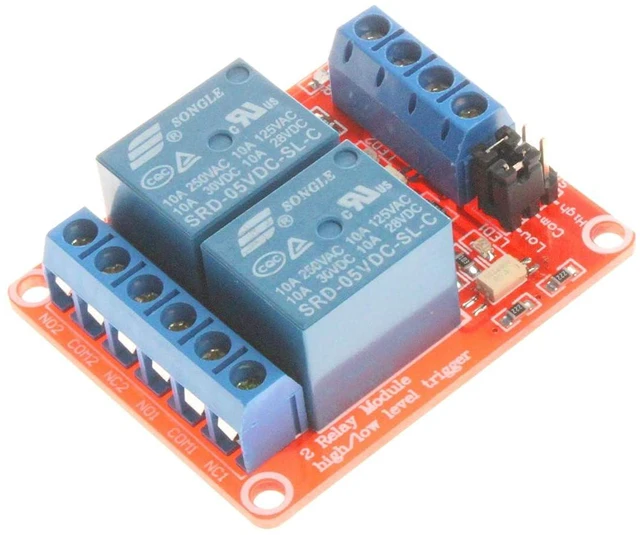

Feature: Module
Size: 50*41* 18.5 mm / 2× 1.6 × 0.7L * W * H With 4 fixed bolt holes, diameter 3.1 mm, spacing 44.5 * 35.5 mm High and low level trigger selection: Trigger current is 2-4mA,. 1. S1 First channel relay high or low level trigger selection; 2. S2 Second channel relay high or low level trigger selection; 3. com and low in short circuit, the relay is low level trigger, com and high end in short circuit, the relay is high level trigger.

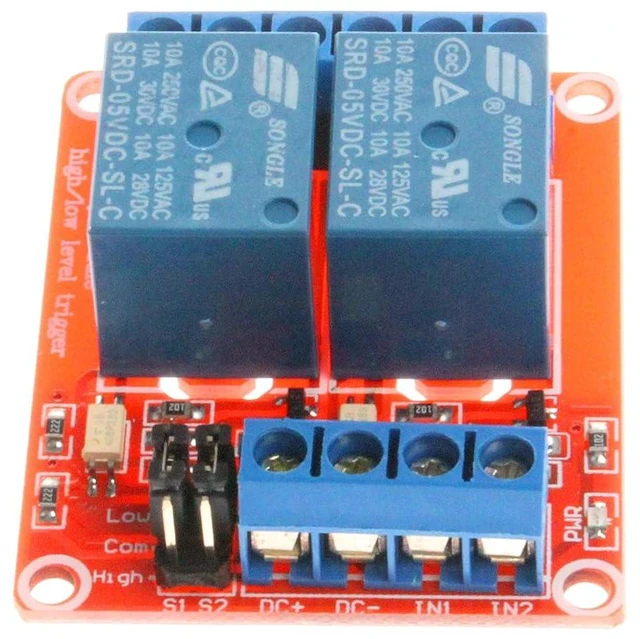

Input Interface: 1.
DC+: to connect the power positive 2.
DC-: to connect the power negative 3. IN 1: 1 way signal trigger end, can set the high or low level control relay 4. IN 2: 2 way signal trigger end, can set the high or low level control relay
Output Interface: 1.
NO1: First channel relay normally open interface, suspend the relay before pulling, then short connect with COM1 2.
COM1: First channel relay common interface 3.
NC1: First channel relay normally close interface, short connect the relay with COM1 before pulling, then suspend 4.
NO2: Second channel relay normally open relay interface, suspend the relay before pulling, then short connect with COM2 5.
COM2: Second channel relay common interface 6.
NC2: Second channel relay normally close interface, short connect the relay with COM2 before pulling, then suspend
Package Inlcuded: 1pcs NOYITO 2-Channel Relay Module
Manual https: //1drv. ms/b/c/4a0865b22350d05c/IQBc0FAjsmUIIIB
KtwAAAAAAAT
AiufKBNE8ldRKbdVOgzMY? e=5Qrqvd
Feature: Module
Size: 50*41* 18.5 mm / 2× 1.6 × 0.7L * W * H With 4 fixed bolt holes, diameter 3.1 mm, spacing 44.5 * 35.5 mm High and low level trigger selection: Trigger current is 2-4mA,. 1. S1 First channel relay high or low level trigger selection; 2. S2 Second channel relay high or low level trigger selection; 3. com and low in short circuit, the relay is low level trigger, com and high end in short circuit, the relay is high level trigger.
Input Interface: 1.
DC+: to connect the power positive 2.
DC-: to connect the power negative 3. IN 1: 1 way signal trigger end, can set the high or low level control relay 4. IN 2: 2 way signal trigger end, can set the high or low level control relay
Output Interface: 1.
NO1: First channel relay normally open interface, suspend the relay before pulling, then short connect with COM1 2.
COM1: First channel relay common interface 3.
NC1: First channel relay normally close interface, short connect the relay with COM1 before pulling, then suspend 4.
NO2: Second channel relay normally open relay interface, suspend the relay before pulling, then short connect with COM2 5.
COM2: Second channel relay common interface 6.
NC2: Second channel relay normally close interface, short connect the relay with COM2 before pulling, then suspend
Package Inlcuded: 1pcs NOYITO 2-Channel Relay Module
