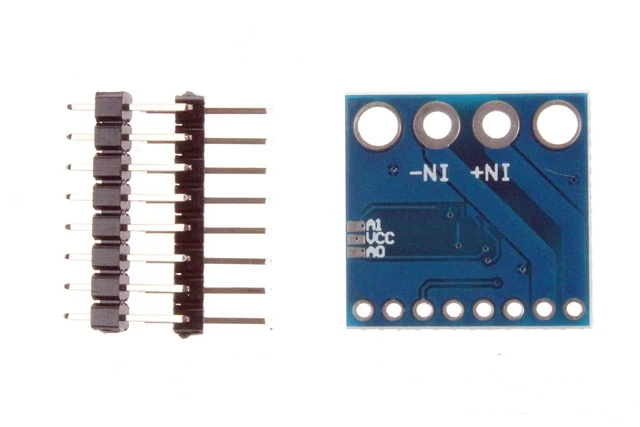

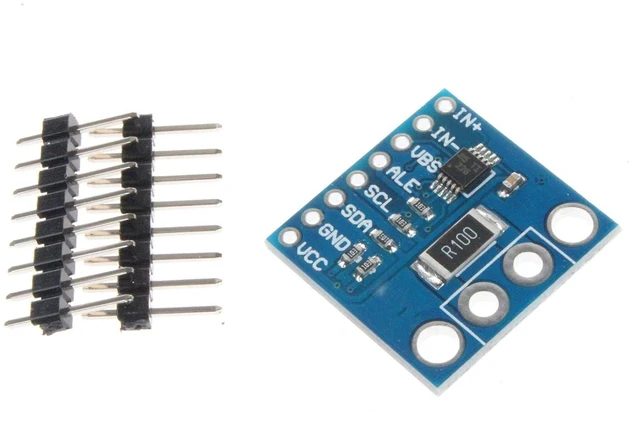

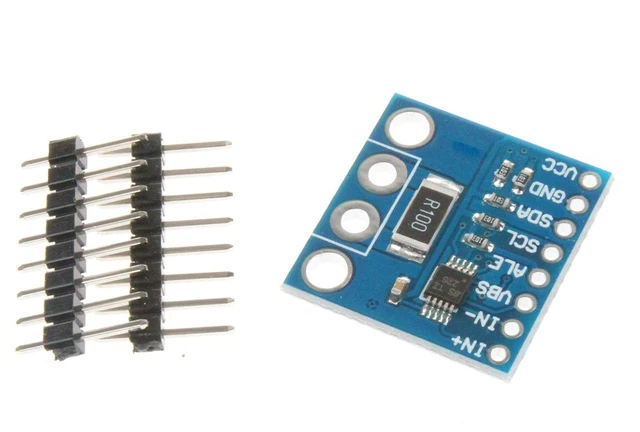

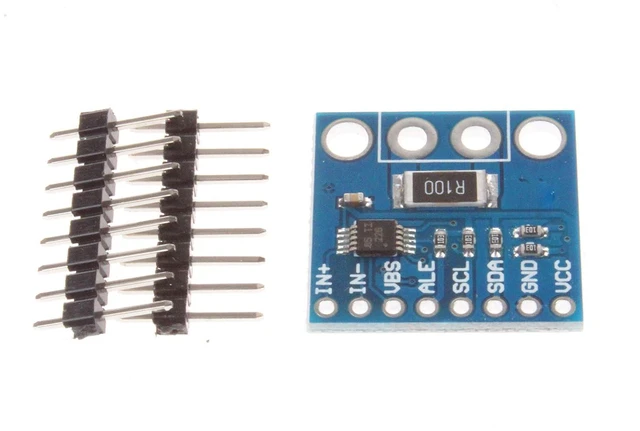

INA226 Bi-Directional Current and Power Monitor Module High-Side or Low-Side Measurement with IIC Compatible Interface Senses Bus Voltages from 0V to 36V
- The INA226 is a current shunt and power monitor with an IIC or SMBUS-compatible interface. The device monitors both a shunt voltage drop and bus supply voltage. Programmable calibration value, conversion times, and averaging, combined with an internal multiplier, enable direct readouts of current in amperes and power in watts.; The INA226 senses current on common-mode bus voltages that can vary from 0 V to 36 V, independent of the supply voltage. The device operates from a single 2.7-V to 5.5-V supply, drawing a typical of 330 A of supply current.; The device is specified over the operating temperature range between 40°C and 125°C and features up to 16 programmable addresses on the I2C-compatible interface.; Senses Bus Voltages From 0 V to 36 V High-Side or Low-Side Sensing . Reports Current, Voltage, and Power . High Accuracy: 0.1% Gain Error (Max) 10 V Offset (Max)
+
+
Overview
Specs
Reviews
NOYITO INA226 Bi-Directional Current and
Power Monitor Module Document https: //1drv. ms/b/c/4a0865b22350d05c/IQBc0FAjsmUIIIBKsAAAAAAAAR8u2UJ6cKtsmbyUtqxV7vM? e=a4VDwC Description The INA226 is a current shunt and power monitor with an IIC or SMBUS-compatible interface. The device monitors both a shunt voltage drop and bus supply voltage. Programmable calibration value, conversion times, and averaging, combined with an internal multiplier, enable direct readouts of current in amperes and power in watts. Features Senses Bus Voltages From 0 V to 36 V High-Side or Low-Side Sensing Reports Current, Voltage, and
Power High Accuracy: 0.1 % Gain Error (Max) 10 V Offset (Max) Configurable Averaging Options 16 Programmable Addresses of the supply voltage. Operating temperature range between 40°C and 125°C
Pacakge Included: 1Pcs NOYITO INA226 Bi-Directional Current and Power Monitor Module
Power Monitor Module Document https: //1drv. ms/b/c/4a0865b22350d05c/IQBc0FAjsmUIIIBKsAAAAAAAAR8u2UJ6cKtsmbyUtqxV7vM? e=a4VDwC Description The INA226 is a current shunt and power monitor with an IIC or SMBUS-compatible interface. The device monitors both a shunt voltage drop and bus supply voltage. Programmable calibration value, conversion times, and averaging, combined with an internal multiplier, enable direct readouts of current in amperes and power in watts. Features Senses Bus Voltages From 0 V to 36 V High-Side or Low-Side Sensing Reports Current, Voltage, and
Power High Accuracy: 0.1 % Gain Error (Max) 10 V Offset (Max) Configurable Averaging Options 16 Programmable Addresses of the supply voltage. Operating temperature range between 40°C and 125°C
Pacakge Included: 1Pcs NOYITO INA226 Bi-Directional Current and Power Monitor Module
