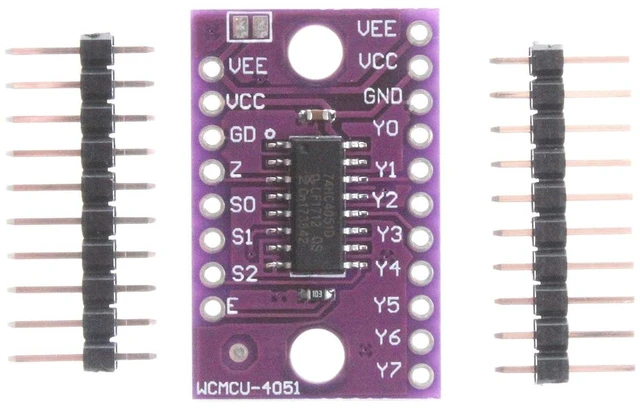

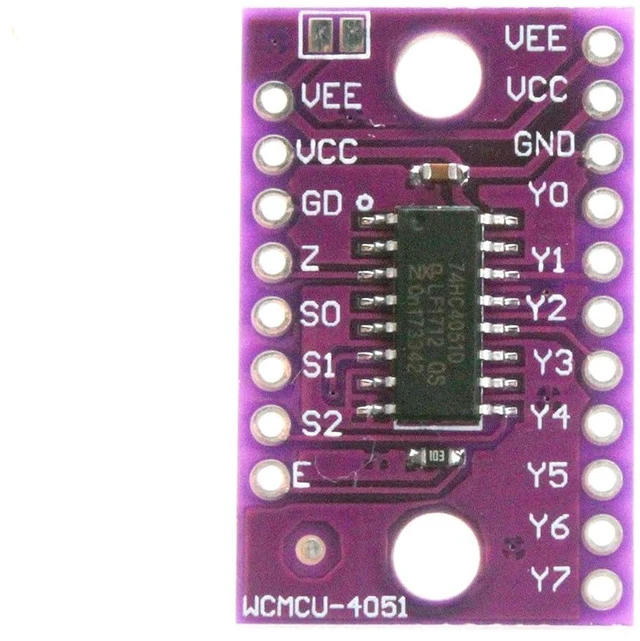

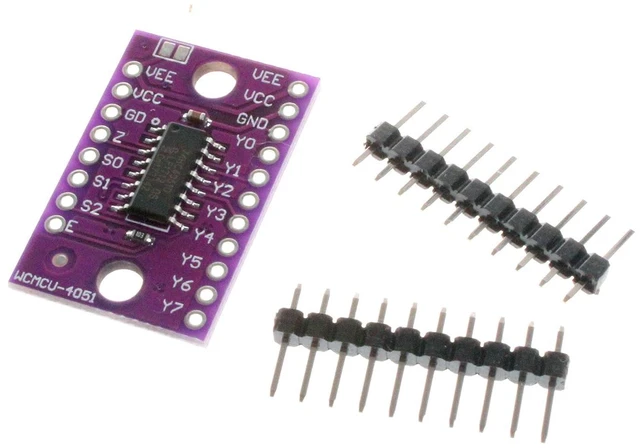

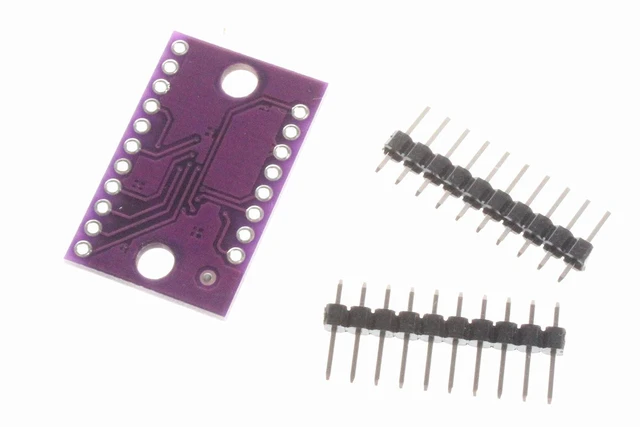

74HC4051 8-Channel-Mux Analog Multiplexer Selector Module
- The 74HC4051 is an 8-channel analog multiplexer/demultiplexer with 3 digital selects (S0-S2), one active low enable (E), and 8 independent inputs/outputs (Y0-Y7) ) and a common input / output (Z).; The 74HC4051 is an 8-channel analog multiplexer/demultiplexer with 3 digital selects (S0-S2), one active low enable (E), and 8 independent inputs/outputs (Y0-Y7) ) and a common input / output (Z).; When E is low, one of the 8 switches will be selected by S0-S2 (low-impedance state). When E is high, all switches enter a high-impedance state, directly ignoring S0-S2.; VCC and GND are the supply pins for the digital control terminals (S0-S2, E). The VCC to GND range of the 74HC4051 is 2.0V-10.0V. The analog input/output terminals (Y0-Y7, Z) of the 74HC4051 swing between the upper limit VCC and the lower limit VEE, and VCC-VEE should not exceed 10.0V.; As a digital multiplexer/demultiplexer, the VEE will be connected to GND (typically grounded).
+
+
Overview
Specs
Reviews
Description: 74HC4051 is a single-pole octal-throw analog switch (SP8T) suitable for use in analog or digital 8:1 multiplexer/demultiplexer applications. The switch features three digital select inputs (S0, S1 and S2), eight independent inputs/outputs (Yn), a common input/output (Z) and a digital enable input (E). When E is HIGH, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Features: Wide analog input voltage range from -5 V to +5 V Complies with JEDEC standard no.
7A Low ON resistance: 80 ohm (typical) at VCC - VEE = 4.5 V 70 ohm (typical) at VCC - VEE = 6.0 V 60 ohm (typical) at VCC - VEE = 9.0
V Logic level translation: to enable 5 V logic to communicate with±5 V analog signals Typical break before make built-in
ESD protection: HBM JESD22-A114F exceeds 2000 V MM JESD22-A115-A exceeds 200 V CDM JESD22-C101E exceeds 1000 V Specified from -40 to +85 and -40 to +125
Package Included: 1Pcs NOYITO 74HC4051 8-Channel-Mux Analog Multiplexer Selector Module
Features: Wide analog input voltage range from -5 V to +5 V Complies with JEDEC standard no.
7A Low ON resistance: 80 ohm (typical) at VCC - VEE = 4.5 V 70 ohm (typical) at VCC - VEE = 6.0 V 60 ohm (typical) at VCC - VEE = 9.0
V Logic level translation: to enable 5 V logic to communicate with±5 V analog signals Typical break before make built-in
ESD protection: HBM JESD22-A114F exceeds 2000 V MM JESD22-A115-A exceeds 200 V CDM JESD22-C101E exceeds 1000 V Specified from -40 to +85 and -40 to +125
Package Included: 1Pcs NOYITO 74HC4051 8-Channel-Mux Analog Multiplexer Selector Module
