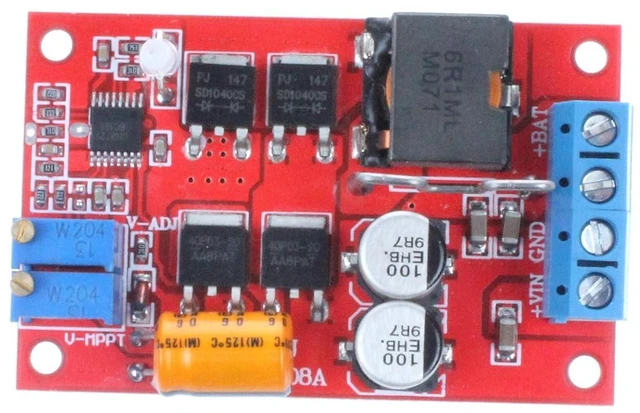

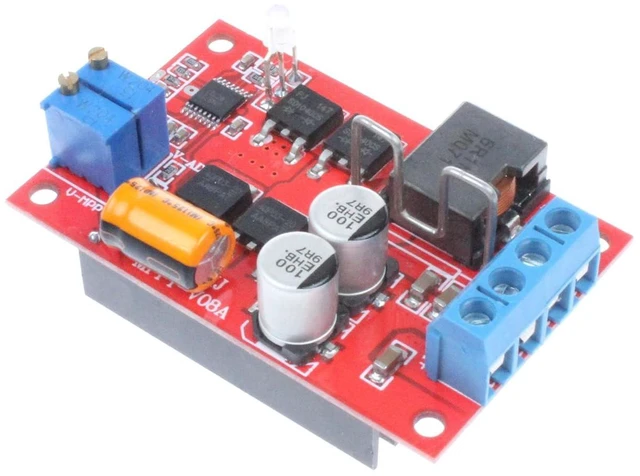

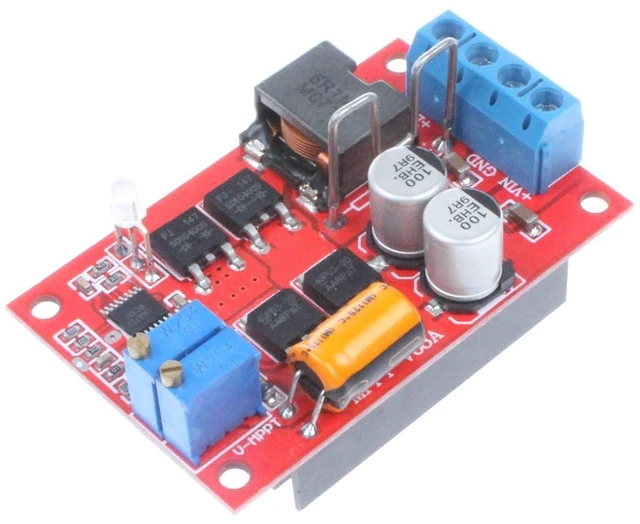

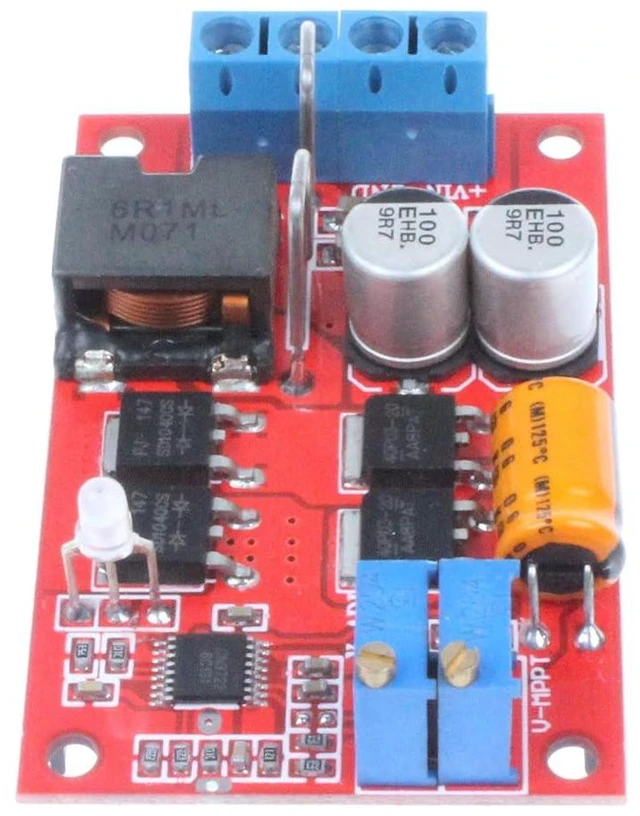

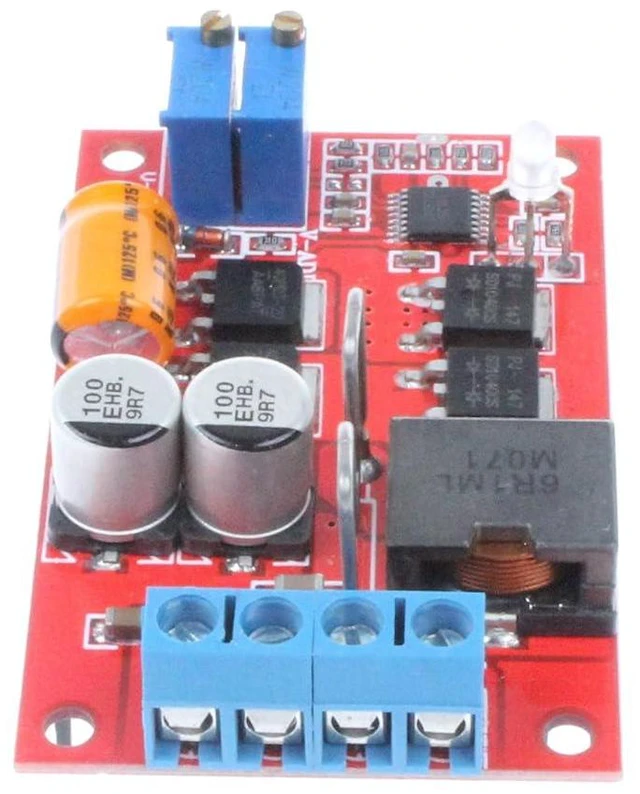

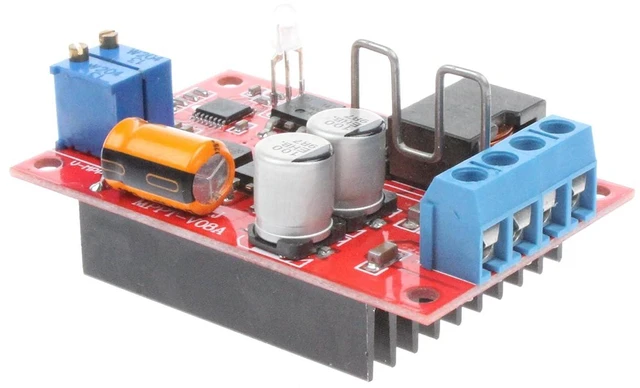

MPPT 5A Solar Charging Board 1-100W 9-28V with Reverse Connection Protection - Anti-backflow Prevention - Low Power Consumption
- MPPT 5A Solar Charging Board Suitable for 1W-100W 9V-28V 9V 12V 18V 24V solar panels to charge batteries, nickel-cadmium, nickel-metal hydride, lithium batteries (battery packs), wind turbines, solar street lights, etc.; High-quality switching power supply dedicated high-frequency low-resistance electrolytic capacitors (LOW ESR) are used at the input and output terminals to ensure output ripple. With thick radiator.; Input voltage: DC 8-28V Input DC voltage (disable AC input).; Output voltage: DC 5-26V stepless adjustable output. Output current: 5A maximum charging current.; Can charge 6V or 12 V batteries or 8.4V, 12.6V, 16.8V lithium batteries, 7.2V, 10.8V, 14.4V lithium iron phosphate batteries, 2-4 string lithium batteries, lithium iron phosphate charge management board.
+
+
Overview
Specs
Reviews
NOYITO MPPT 5A Solar Charging Board User manual https: //1drv. ms/b/c/4a0865b22350d05c/IQBc0FAjsmUIIIBK
YgUAAAAAAUG395PCSo52IqaMmLMf_fc? e=HxdWqw
Parameter: Module
properties: MPPT solar maximum power point tracking function, automatic intelligent charging management, low power consumption.
Input voltage: DC 8-28V Input DC voltage (disable AC input).
Output voltage: DC 5-26V stepless adjustable transmission.
Output current: 5A
max Charge indicator: Yes. The fast charging red light glows brightly, full of red, blue, and alternating lights. Full automatic stop.
MPPT function: Yes.
The lowest pressure difference: 1V. Ultra low dropout design is used to achieve low power consumption and higher conversion efficiency, professionally adapting solar panels.
Operating temperature: Industrial grade (-40°C to +85°C).
Load regulation: ±1%.
Voltage regulation rate: ± 0.5 %.
Conversion efficiency:
Max: 93% /
Peak: 95% Different lighting conditions are different.
Charging method: automatic intelligent three-phase charging mode. Tracking solar power automatically adjusts the size of the charging current
No-load current: 3mA.
Input reverse protection: Yes.
Output reverse protection: Yes.
MPPT voltage: adjustable, NOTE: For the first charge, adjust the output voltage in advance and monitor the battery voltage closely to prevent overcharging! Do not charge an unprotected lithium battery!
Package Included: 1pcs MPPT 5A Solar Charging Board
YgUAAAAAAUG395PCSo52IqaMmLMf_fc? e=HxdWqw
Parameter: Module
properties: MPPT solar maximum power point tracking function, automatic intelligent charging management, low power consumption.
Input voltage: DC 8-28V Input DC voltage (disable AC input).
Output voltage: DC 5-26V stepless adjustable transmission.
Output current: 5A
max Charge indicator: Yes. The fast charging red light glows brightly, full of red, blue, and alternating lights. Full automatic stop.
MPPT function: Yes.
The lowest pressure difference: 1V. Ultra low dropout design is used to achieve low power consumption and higher conversion efficiency, professionally adapting solar panels.
Operating temperature: Industrial grade (-40°C to +85°C).
Load regulation: ±1%.
Voltage regulation rate: ± 0.5 %.
Conversion efficiency:
Max: 93% /
Peak: 95% Different lighting conditions are different.
Charging method: automatic intelligent three-phase charging mode. Tracking solar power automatically adjusts the size of the charging current
No-load current: 3mA.
Input reverse protection: Yes.
Output reverse protection: Yes.
MPPT voltage: adjustable, NOTE: For the first charge, adjust the output voltage in advance and monitor the battery voltage closely to prevent overcharging! Do not charge an unprotected lithium battery!
Package Included: 1pcs MPPT 5A Solar Charging Board
