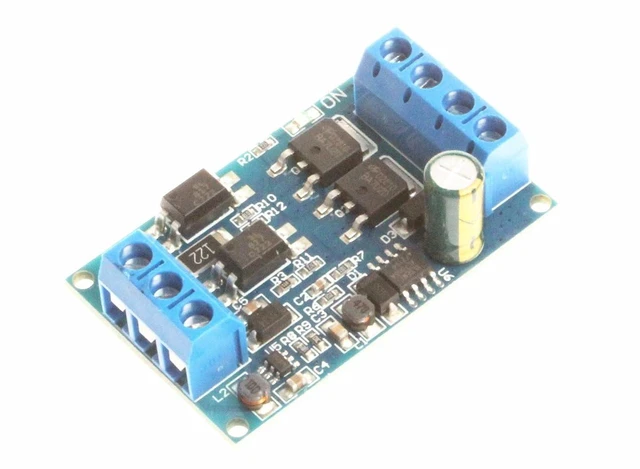

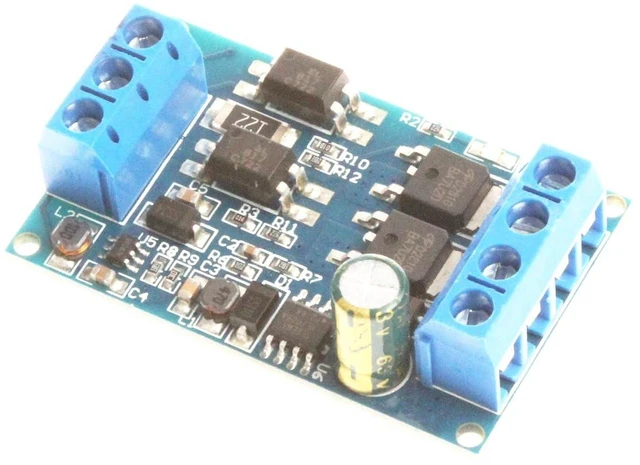

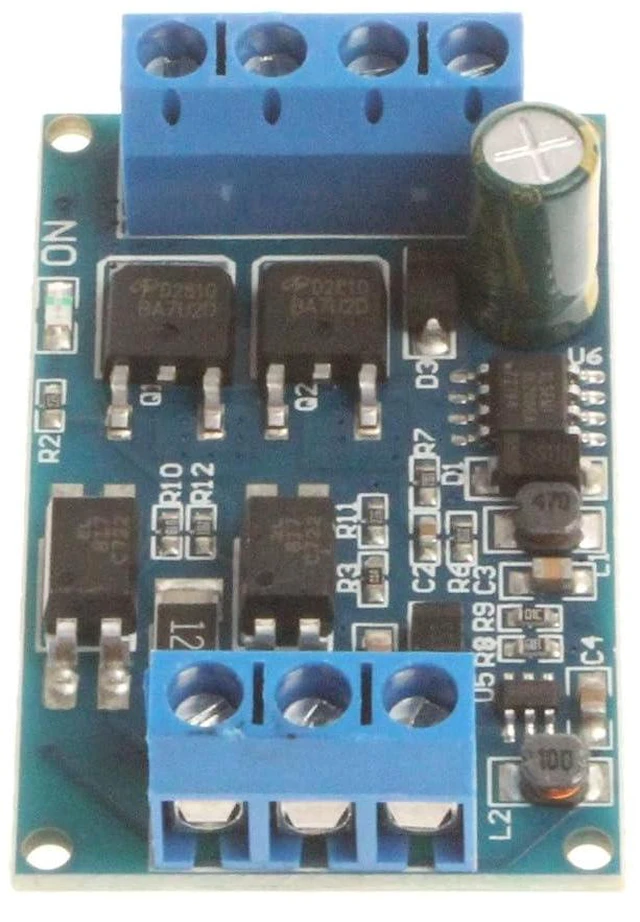

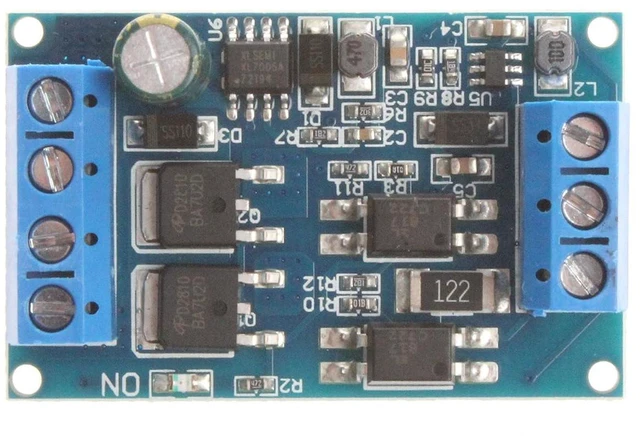

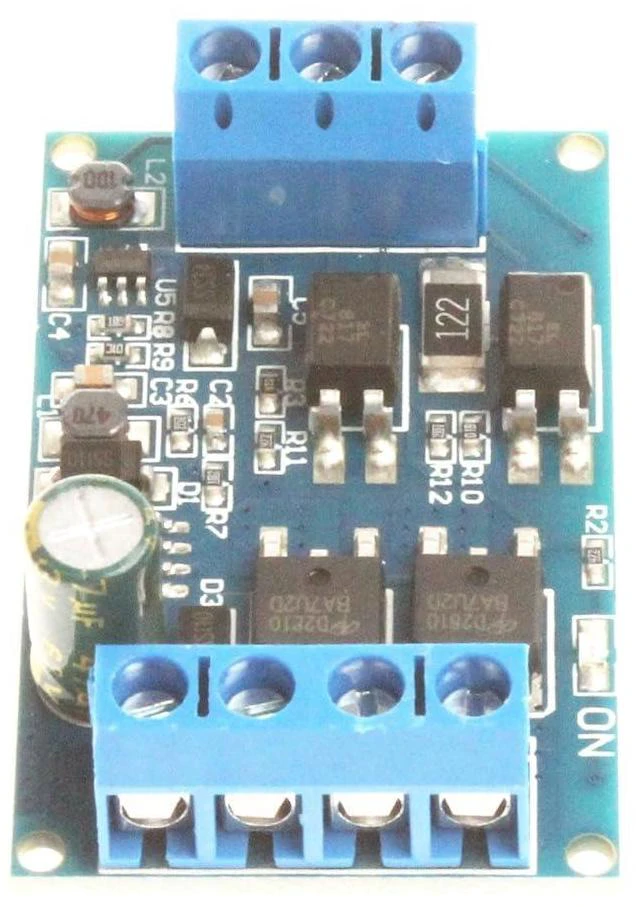

10A 600W High Power MOS Trigger Switch Driver Module PWM Conditioning Electronic Switch Control Board FET MOS Trigger Switch Driver Module

Features: The module supports high level trigger, low level trigger, switch control, PWM control; It adopts imported dual MOS parallel active output, low internal resistance, strong current and strong power. The continuous current is 10A, 600W at room temperature, which is suitable for most equipments; Easy to control high power equipment.
NOTE: At the same time, there is only one signal to control the module, and two or more signals cannot be used to control the module;
Product parameters: Working
voltage: DC 4V - 60V;
Working temperature: -40- + 85 ° C;
Size: 3.4 * 1.7 * 1.2 cm (LWH).
High Level trigger voltage range: DC 3.0V -24V, the trigger signal is at 3.0V -24V, and the MOS transistor is turned on; Less than 0.6V, that is, 0V- 0.6V, the MOS tube is turned off; The signal voltage cannot be 0.6V - 3.0V, because the MOS tube is not fully open, the high power output will burn MOS;
Low Level trigger voltage range: DC 0V- 0.6V, the trigger signal is at 0V- 0.6V, and the MOS tube is turned on; Above 3.0V, the MOS tube is turned off; The signal voltage cannot be 0.6V - 3.0V, because the MOS tube is not completely open, and the high power output will burn the MOS.

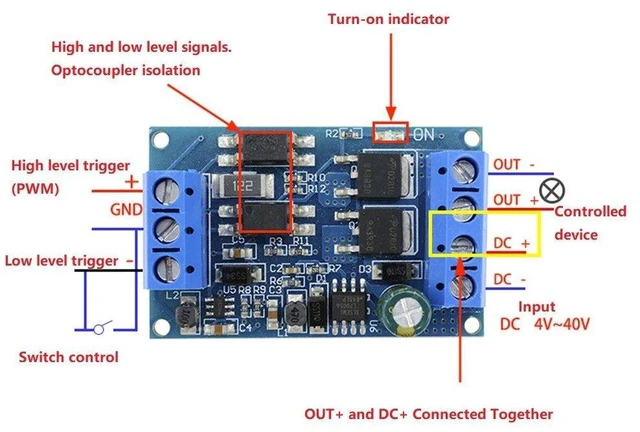

Trigger source: High level trigger (DC 3.0V - 24V), low level trigger (DC 0.0V - 0.6V ), switch control, can be connected to MCU IO port, PLC interface, DC power supply and other PWM signals, the range is 0 - 2.5KHZ.
Output capacity: DC 4V - 60V, continuous current 10A, room temperature, power 600W! The current can reach 15A under auxiliary cooling conditions.
Package Included: 1pcs NOYITO 10A 600W High Power MOS Trigger Switch Driver Module
