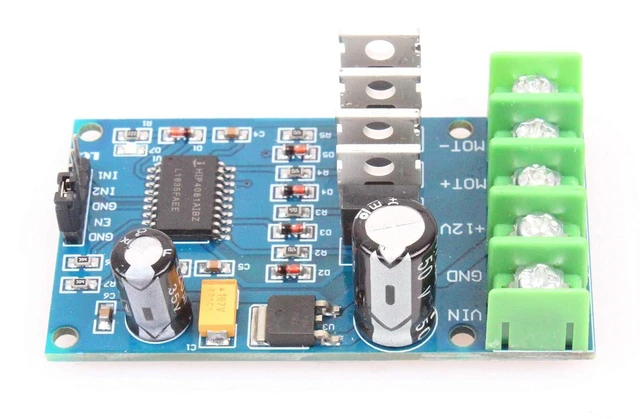

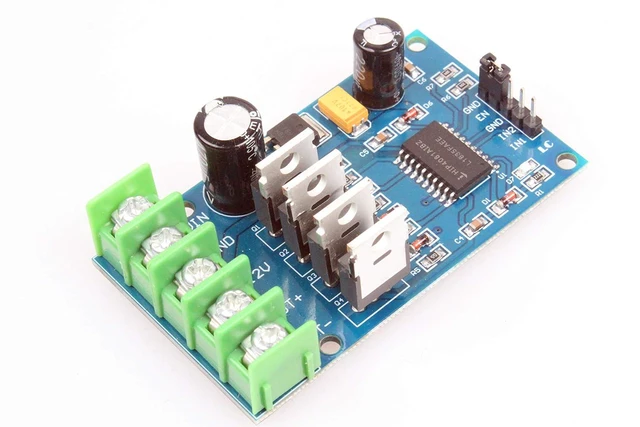

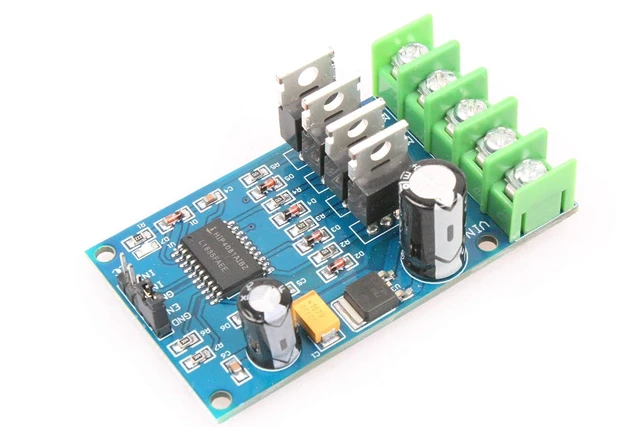

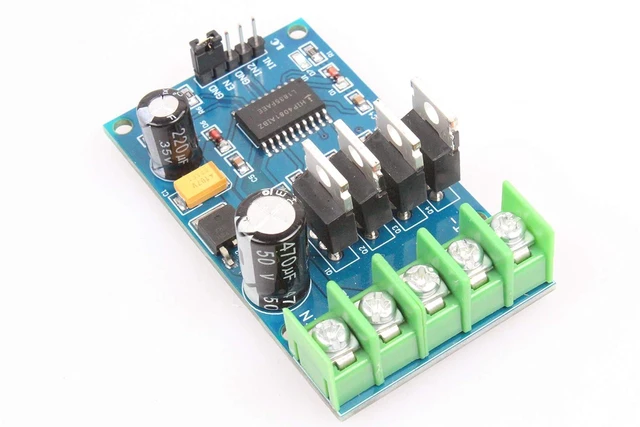

170W High-power H-bridge Motor Drive Module 2-Channel PWM Inputs 0-100% Duty Cycle with Instantaneous Braking Capability Forward Reverse Support 3.3V 5V Logic input Analog input MCU IO Port

NOYITO 170W High-power H-bridge Motor Drive Module User Manual Schematics Wiring Diagram https: //1drv. ms/u/s! AlzQUC
OyZQhKggdGTmoExd0-JMLB? e=2rVeoZ
Features: Full-bridge driver chip + low-pass internal resistance 55V 110A NMOS can be used to achieve forward and reverse rotation of the motor. 2-Channel PWM inputs, the duty cycle can be adjusted between 0-100%, with instantaneous braking capability. The control is simple and convenient. Only three input lines are needed to control the motor. The chip has built-in dead-band hardware control, which can better adapt to frequent steering changes of the motor and reduce its own loss. The wires on the back of the module are tin-plated and can withstand larger currents. Supports 3.3V and 5V logic inputs. It is suitable for direct control of various types of single-chip IO ports, and can also control the motor's forward and reverse rotation through analog input.
Parameter: Working voltage is 10V-30V.
Power: 170Wmax
Board size: 67.5 * 38.8 ** 20.5 mm (LWH) Suitable for 5-40V motor.

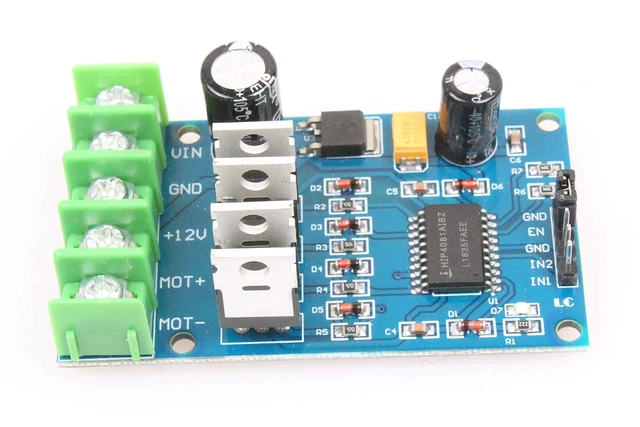

Instructions for use: Motor

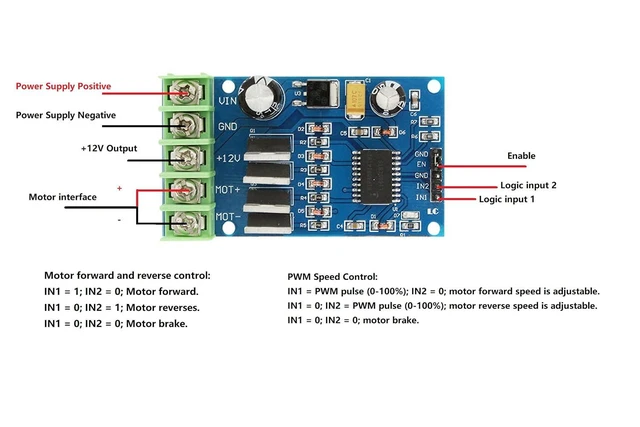

forward and reverse control: IN1 = 1; IN2 = 0; Motor forward. IN1 = 0; IN2 = 1; Motor reverses. IN1 = 0; IN2 = 0; Motor brake.
PWM Speed Control: IN1 = PWM pulse (0-100%); IN2 = 0; motor forward speed is adjustable. IN1 = 0; IN2 = PWM pulse (0-100%); motor reverse speed is adjustable. IN1 = 0; IN2 = 0; motor brake.
Package Included: 1pcs NOYITO 170W High-power H-bridge Motor Drive Module
