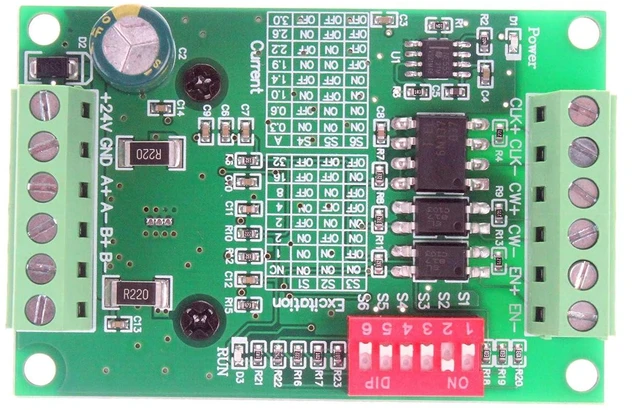

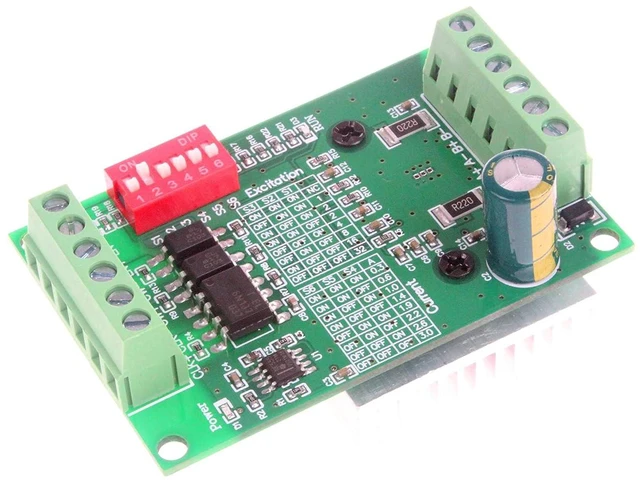

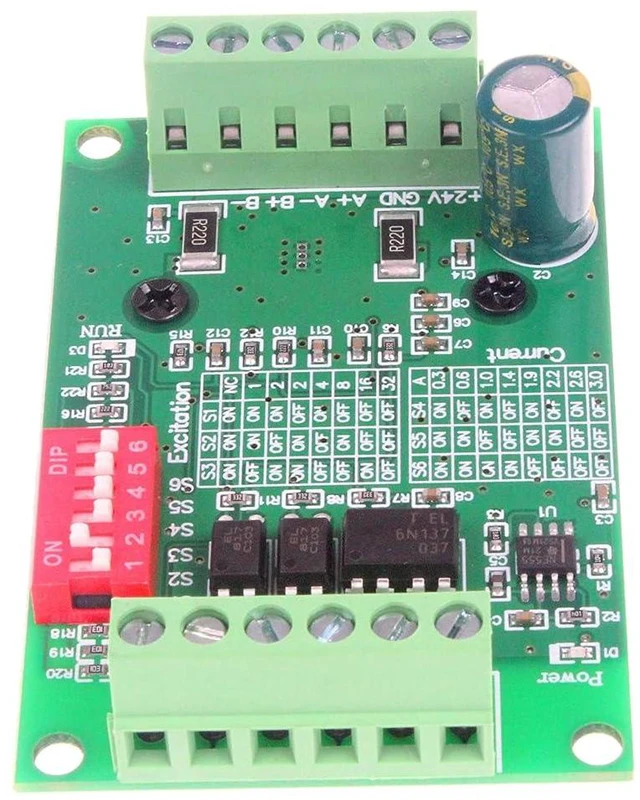

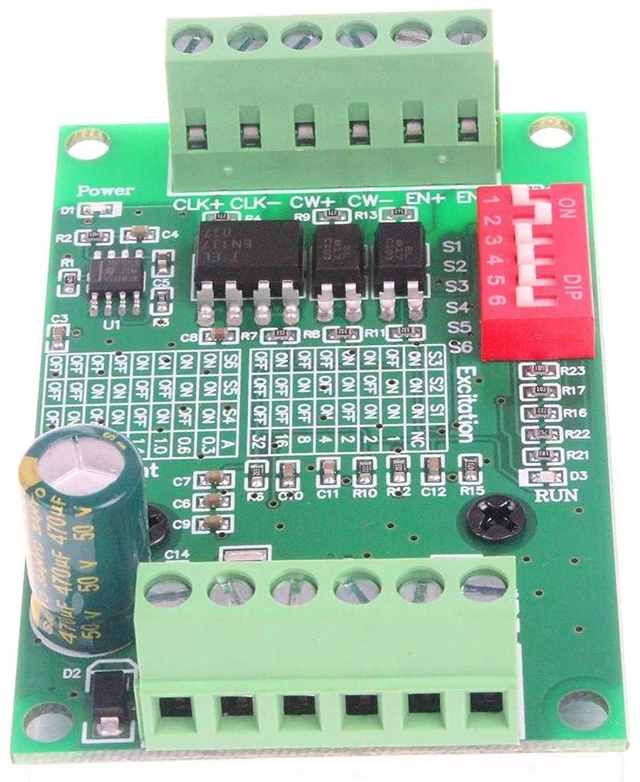

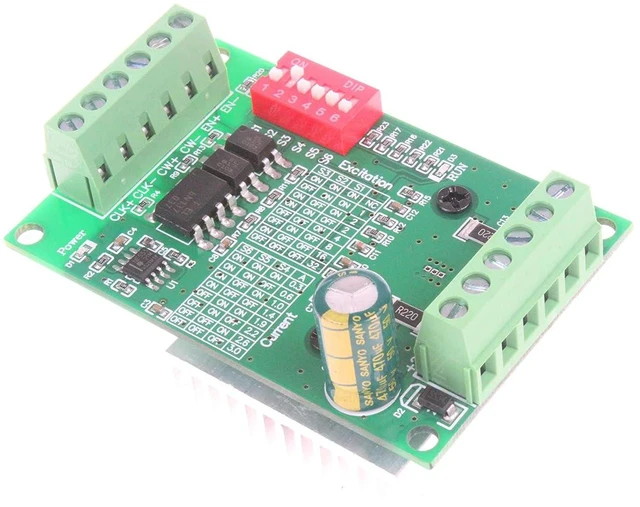

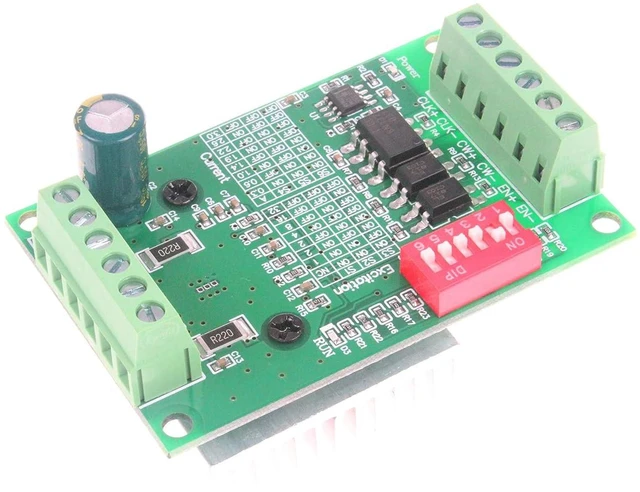

TB6560 3A Single-Axis Controller Stepper Motor Driver Board 10-35V
- Working voltage DC 10V-35V. Recommended to use a switching power supply DC24V power supply.; 6N137 high-speed optical coupling, guarantee high speed without losing step.; Using the TB6560AHQ chip with low voltage shutdown, overheating stop and overcurrent protection circuit to ensure optimal performance.; Rated maximum output: ± 3A, peak 3.5A.TB6600 4.5A Single-Axis Controller Stepper Motor Driver Board ASIN: B07BDGDMLY; For two-phase within 42,57 stepping 3A / four-phase / four-wire / six-wire stepper motor, and is not suitable for more than 3A stepper motor.
+
+
Overview
Specs
Reviews
Description: Working voltage DC 10V-35V. Recommended to use a switching power supply DC24V power supply. 6N137 high-speed optical coupling, guarantee high speed without losing step. Using the TB6560AHQ chip with low voltage shutdown, overheating stop and overcurrent protection circuit to ensure optimal performance.
Rated maximum output: ± 3A, peak 3.5A. For two-phase within 42, 57 stepping 3A / four-phase / of line four / six-wire stepper motor, and is not suitable for more than 3A stepper motor. Automatic half current function.
Subdivision: whole step, half-step, 1/8 step, 1/16 step, a maximum of 16 subdivisions.
Specification: Working
voltage: DC 10-35V
Rated maximum output: ± 3A, peak 3.5A
Main color: Green
Size: Approx. 75 x 50 x 33mm / 2.95 x 1.97 x 1.3 inch
Package Included: 1Pcs TB6560 3A Single-Axis Controller Stepper Motor Driver Board
Rated maximum output: ± 3A, peak 3.5A. For two-phase within 42, 57 stepping 3A / four-phase / of line four / six-wire stepper motor, and is not suitable for more than 3A stepper motor. Automatic half current function.
Subdivision: whole step, half-step, 1/8 step, 1/16 step, a maximum of 16 subdivisions.
Specification: Working
voltage: DC 10-35V
Rated maximum output: ± 3A, peak 3.5A
Main color: Green
Size: Approx. 75 x 50 x 33mm / 2.95 x 1.97 x 1.3 inch
Package Included: 1Pcs TB6560 3A Single-Axis Controller Stepper Motor Driver Board
