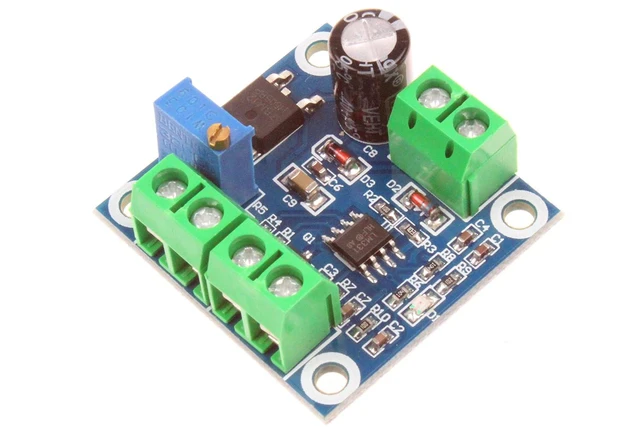

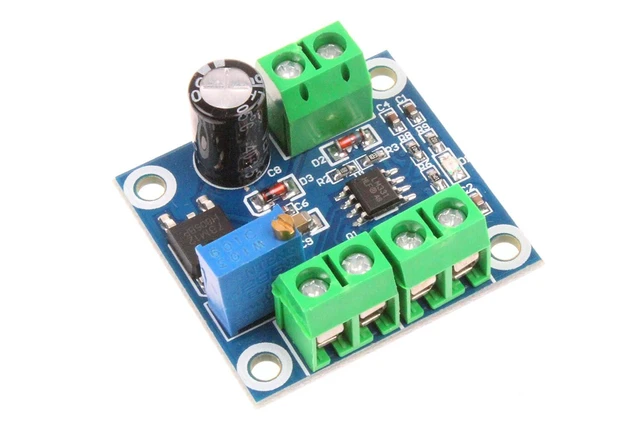

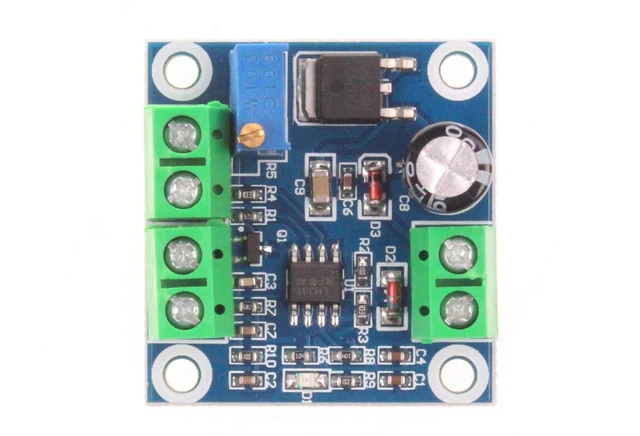

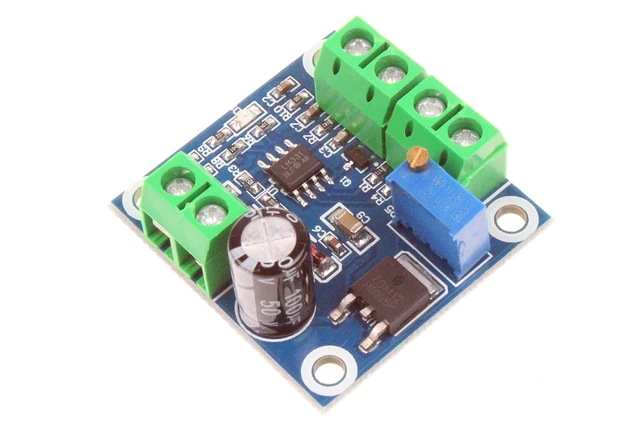

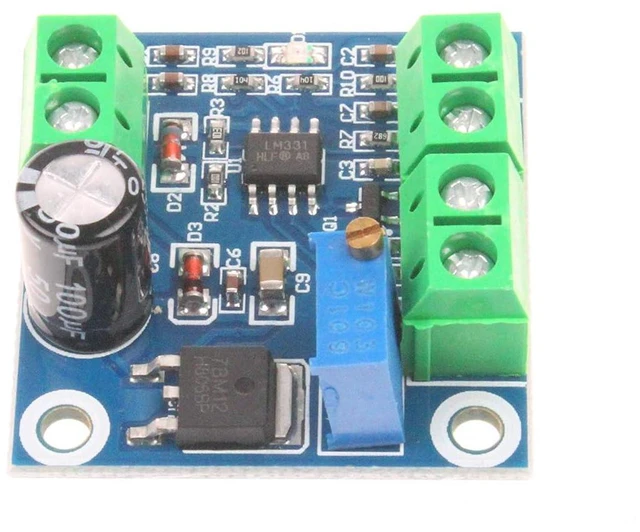

Voltage to Frequency Module 0-10V to 0-10KHz Signal Conversion Module
- NOYITO voltage-to-frequency module is a module that can generate different frequencies depending on the input voltage. It can convert 0-10V voltage into a frequency pulse signal of 0-10KHz.; Working voltage: 13.5V-30V.; Input voltage range: 0-10V.; Output frequency range: 0-10KHz.; The output signal can be fine-tuned, and the potentiometer can be adjusted to calibrate the correspondence between voltage and frequency.
+
+
Overview
Specs
Reviews
NOYITO Voltage to Frequency Module User
Manual https: //1drv. ms/b/c/4a0865b22350d05c/IQBc0FAjsmUIIIB
KhwAAAAAAA
WsN-KElrmb5HCnVYggDyuY? e=2yz7yQ Features
1. Input voltage, output frequency signal.
2. The output signal can be fine-tuned, and the potentiometer can be adjusted to calibrate the corresponding relationship between voltage and frequency.
3. The output of this module can be supplied to the driver as a pulse signal. When it is used with the driver, the common anode wiring is required. The relevant wiring instructions are as follows:
OC-OUT: To connect the drive's PUL- terminal or
PUL terminal 12-30V: Connect to the PUL+ terminal of the driver or the common terminal +5V.
Technical Parameter: Working
voltage: 13.5V -30V.
Input controllable voltage range: 0-10V.
Output frequency range: 0-10KHz.
3. Hardware introduction and description
Wiring Instructions:
VCC: Power supply +.
GND: Power supply ground -.
IN+: input voltage signal +.
IN-: input voltage signal -.
OCOUT: Signal collector output port (use this output port when matching the driver).
FOUT: Frequency output port (general frequency output port). Two separate outputs, OC-OUT is NPN, FREQ-OUT is IC output. The common cathode is used with the "-" GND of the power supply. When the common anode is connected, it is used together with the power supply "+" VCC. When the common anode is connected, if it is 13-24V power supply, a 2.7KR resistor should be connected in series, and if it is DC12V power supply, a 330R resistor should be connected in series.
Module Working Instructions: Connect the positive and negative of the 0-10V voltage signal to IN+ and IN- respectively, and there is a corresponding frequency signal output between FOUT and GND.
Correspondence between input and output: 1V = 1KHz. 10V = 10KHz. If there is a deviation in the corresponding relationship during use, you can adjust the potentiometer on the board to calibrate
Package Included: 1Pcs NOYITO Voltage to Frequency Module
Manual https: //1drv. ms/b/c/4a0865b22350d05c/IQBc0FAjsmUIIIB
KhwAAAAAAA
WsN-KElrmb5HCnVYggDyuY? e=2yz7yQ Features
1. Input voltage, output frequency signal.
2. The output signal can be fine-tuned, and the potentiometer can be adjusted to calibrate the corresponding relationship between voltage and frequency.
3. The output of this module can be supplied to the driver as a pulse signal. When it is used with the driver, the common anode wiring is required. The relevant wiring instructions are as follows:
OC-OUT: To connect the drive's PUL- terminal or
PUL terminal 12-30V: Connect to the PUL+ terminal of the driver or the common terminal +5V.
Technical Parameter: Working
voltage: 13.5V -30V.
Input controllable voltage range: 0-10V.
Output frequency range: 0-10KHz.
3. Hardware introduction and description
Wiring Instructions:
VCC: Power supply +.
GND: Power supply ground -.
IN+: input voltage signal +.
IN-: input voltage signal -.
OCOUT: Signal collector output port (use this output port when matching the driver).
FOUT: Frequency output port (general frequency output port). Two separate outputs, OC-OUT is NPN, FREQ-OUT is IC output. The common cathode is used with the "-" GND of the power supply. When the common anode is connected, it is used together with the power supply "+" VCC. When the common anode is connected, if it is 13-24V power supply, a 2.7KR resistor should be connected in series, and if it is DC12V power supply, a 330R resistor should be connected in series.
Module Working Instructions: Connect the positive and negative of the 0-10V voltage signal to IN+ and IN- respectively, and there is a corresponding frequency signal output between FOUT and GND.
Correspondence between input and output: 1V = 1KHz. 10V = 10KHz. If there is a deviation in the corresponding relationship during use, you can adjust the potentiometer on the board to calibrate
Package Included: 1Pcs NOYITO Voltage to Frequency Module
