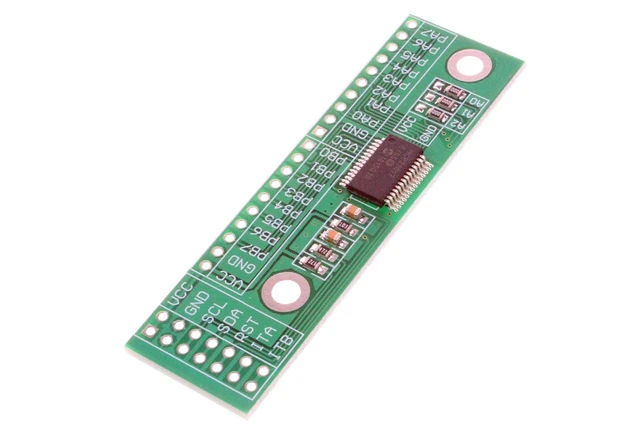

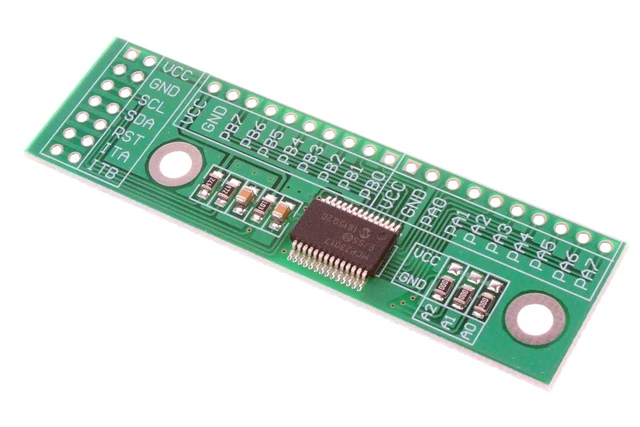

MCP23017-E SS I2C Interface 16-Channel IO Expansion Module Compatible IIC Input and Output Expansion Board
- This module is the 16 channel IO extension module of the 12C interface, and built in the MCP23017 chip of MicroChip.; Each IO can be arbitrarily configured as input or output, and a pull up resistor can be set, and the interrupt function can be enabled for the IO configured as input. The IO interface has a strong driving capacity, and the current and current can reach 25mA.; MCP23017 is a high-speed IIC interface. It supports the IIC frequency of 100KHz, 400KHz and 1.7MHz.; The chip has 3 address pins, which can be set up for 8 different addresses. So 8 modules can be connected through two IIC buses to achieve up to 128 IO extensions.; The chip has 3 address pins, which can be set up for 8 different addresses. So 8 modules can be connected through two IIC buses to achieve up to 128 IO extensions.; NOYITO MCP23017-E SS I2C Interface 16-Channel IO Expansion Module Schematic Document
+
+
Overview
Specs
Reviews
Parameters: Operating voltage 3.0V - 5.5V Drive chipMCP23017 Number of
IO: 16 (input, output, interruption)
Drive power supply: 25mA1
12C frequency: 100KHz, 400KHz, 1..
7MHz Working temperature: -40 Celsius -125
Celsius Chip level: Industrial grade
Parallel multiple: Up to 8
Driver: 51 and

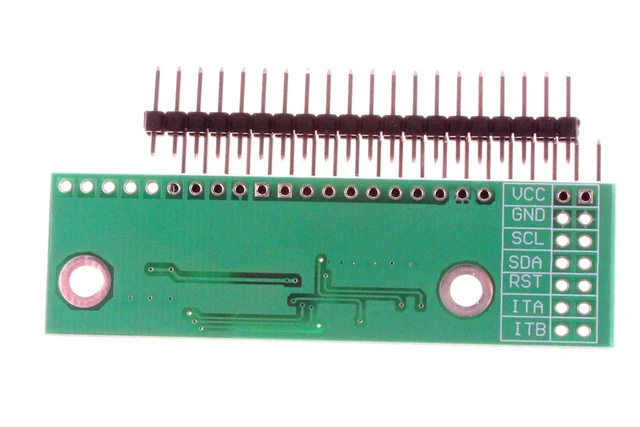

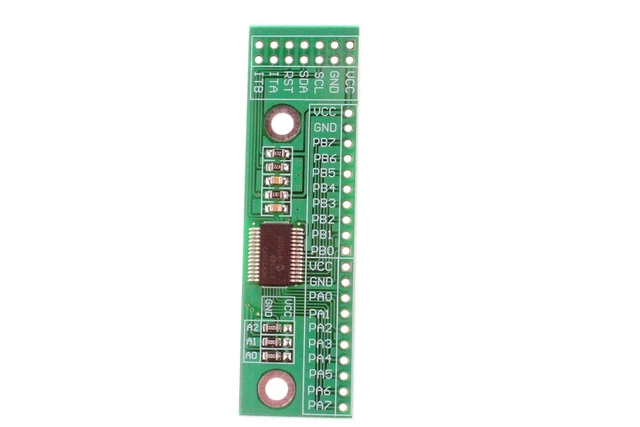

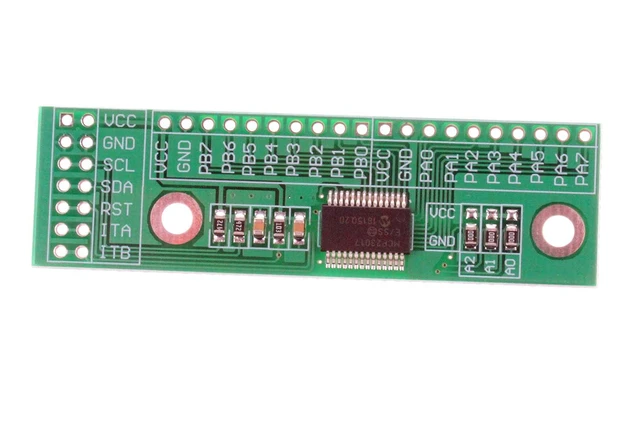

Arduino Module size: 65mm*19mm Pin description
VCC: Power source input ( 3.0V - 5.5V )
GND: Power negative electrode (0V)
SCL: 12C clock line (SCL connecting single chip IO pin or MCU 12C interface)
SDA: 12C data line (SDA connecting single chip IO pin or MCU 12C interface)
RST: Chip reduction (Low level effective, connecting MCU IO pin or unconnected)
ITA: GPIOA port interrupt output (Connect MCU IO pin, without connection when interruption)
ITB: GPIOB port interrupt output (Connect MCU IO pin, without connection when interruption)
Package Included: 1pcs NOYITO MCP23017-E/SS I2C Interface 16-Channel IO Expansion Module
IO: 16 (input, output, interruption)
Drive power supply: 25mA1
12C frequency: 100KHz, 400KHz, 1..
7MHz Working temperature: -40 Celsius -125
Celsius Chip level: Industrial grade
Parallel multiple: Up to 8
Driver: 51 and
Arduino Module size: 65mm*19mm Pin description
VCC: Power source input ( 3.0V - 5.5V )
GND: Power negative electrode (0V)
SCL: 12C clock line (SCL connecting single chip IO pin or MCU 12C interface)
SDA: 12C data line (SDA connecting single chip IO pin or MCU 12C interface)
RST: Chip reduction (Low level effective, connecting MCU IO pin or unconnected)
ITA: GPIOA port interrupt output (Connect MCU IO pin, without connection when interruption)
ITB: GPIOB port interrupt output (Connect MCU IO pin, without connection when interruption)
Package Included: 1pcs NOYITO MCP23017-E/SS I2C Interface 16-Channel IO Expansion Module
