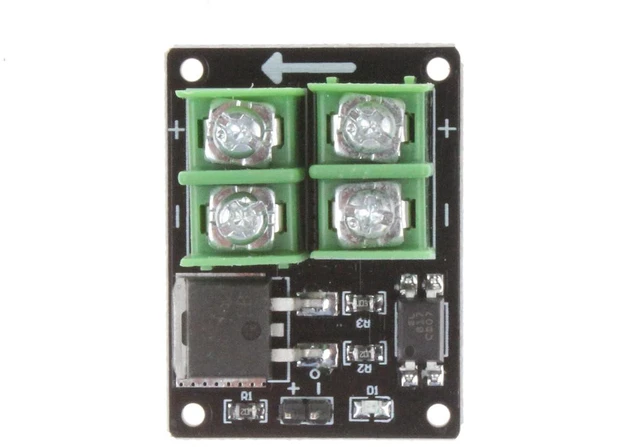

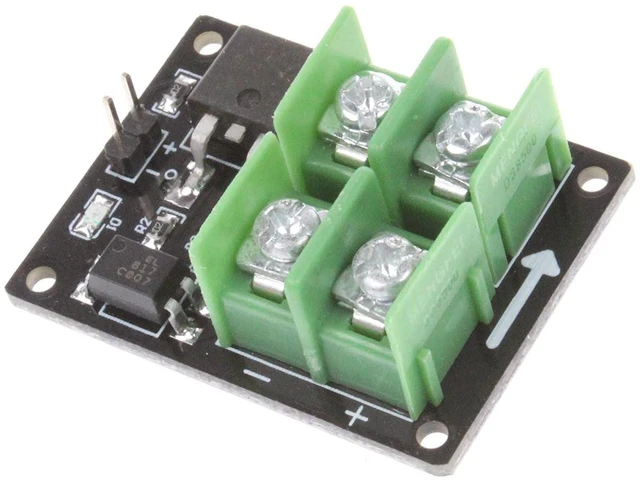

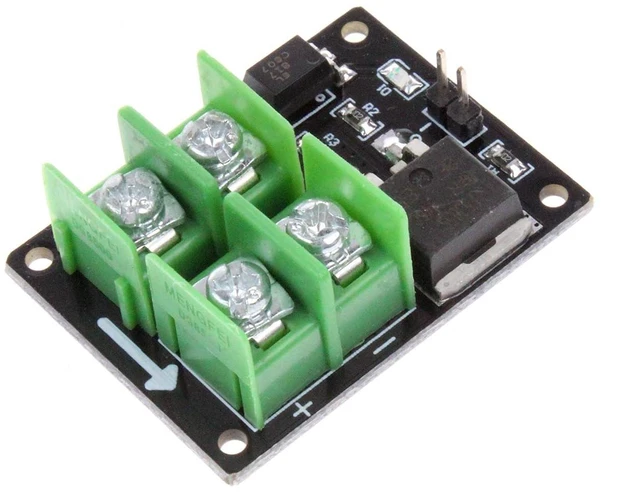

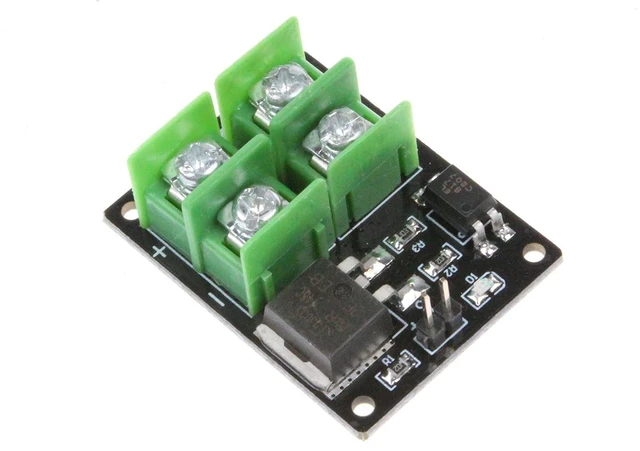

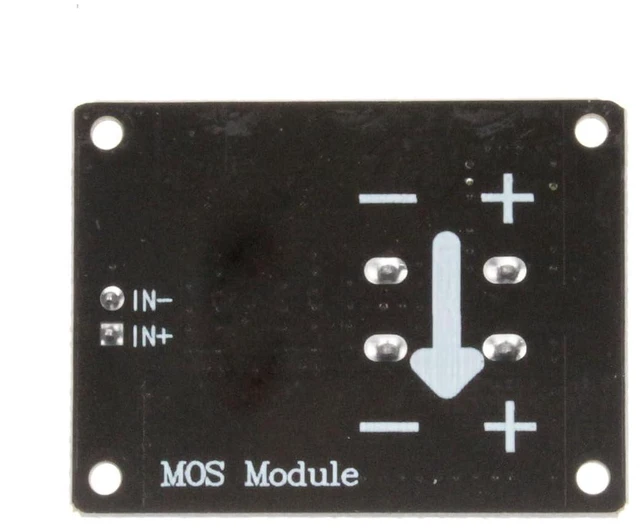

Low Voltage MOSFET Switching Module 3V 5V Low Control High Voltage 12V 24V 36V Field Effect Transistor Module
Limited time offer, ends 11/01 By Kepler Forge
- Input control voltage: 3.3V-12V; Output voltage: 5-36V; The board uses optical isolation and is completely separated from the 2-terminal voltage.; The input is controlled by 2-pin control and the ground control can be directly connected to the control switch.; Control current 1-5MA control voltage is different, the current difference is mainly the loss on the LED.
+
+
Overview
Specs
Reviews
Product Description: Input
control voltage: 3.3V -12V
Output voltage: 5-36V The board uses optical isolation and is completely separated from the 2-terminal voltage. The input is controlled by 2-pin control and the ground control can be directly connected to the control switch. Control current 1-5MA control voltage is different, the current difference is mainly the loss on the LED.
Charging maximum current: 22A, more than 5A need to add a heat sink. Onboard LED lights Host input and output screw terminal block The control terminal uses 2.54MM pins for easy wiring. Control can be directly connected to the microcontroller IO. The MCU can control the motor speed, light level, etc. with ARDUINO PWM. Please note that high current needs to add an extra radiator
Board size: 4.2 x 2.6 cm
Package Included: 1pcs Low Voltage MOSFET Switching Module
control voltage: 3.3V -12V
Output voltage: 5-36V The board uses optical isolation and is completely separated from the 2-terminal voltage. The input is controlled by 2-pin control and the ground control can be directly connected to the control switch. Control current 1-5MA control voltage is different, the current difference is mainly the loss on the LED.
Charging maximum current: 22A, more than 5A need to add a heat sink. Onboard LED lights Host input and output screw terminal block The control terminal uses 2.54MM pins for easy wiring. Control can be directly connected to the microcontroller IO. The MCU can control the motor speed, light level, etc. with ARDUINO PWM. Please note that high current needs to add an extra radiator
Board size: 4.2 x 2.6 cm
Package Included: 1pcs Low Voltage MOSFET Switching Module
