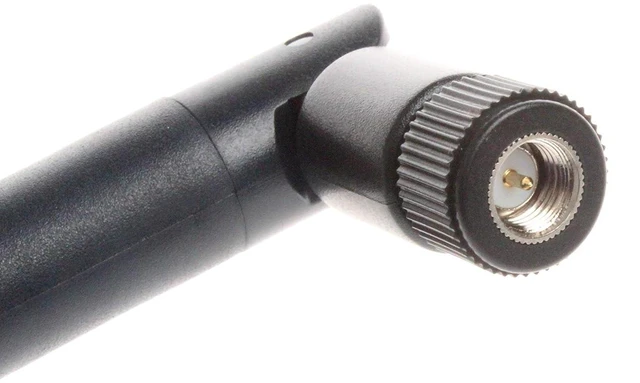

900MHz 915MHz Antenna 5dBi Gain Omnidirectional Antenna SMA Connector - Internal Thread Inner Needle
- Frequency Range900MHz / 915MHz.; Gain(dBi)5dBi±0.7dBi; Connector Type: SMA - Internal Thread Inner Needle; Dimension(mm) : 195mm (Un-bend).; Impedance(): 50.; Working Range: Up to 300 meters outdoors with no obstructions, 1 to 30 meters indoors.
+
+
Overview
Specs
Reviews
Electrical
Polarization: Vertical
Non-Circularity (dB): ± 0.5
Impedance():
50.
Lightning Protection: Direct Ground.
Connector Type: SMA - Internal Thread Inner Needle Radiating Element Material: Copper
Radome Material: EVA
Radome Color: Black
Dimension (mm): 195mm (Un-bend).
Operating Temperature(): -40~+70
Reposition Temperature(): -55~+80
Package Included: 1pcs NOYITO 900MHz 915MHz Antenna 5dBi Gain Omnidirectional Antenna
Specifications
Frequency Range900MHz / 915MHz. Gain (dBi) 5dBi± 0.7 dBi V. S. W. R. 1.9.Polarization: Vertical
Non-Circularity (dB): ± 0.5
Impedance():
50.
Lightning Protection: Direct Ground.
Connector Type: SMA - Internal Thread Inner Needle Radiating Element Material: Copper
Radome Material: EVA
Radome Color: Black
Dimension (mm): 195mm (Un-bend).
Operating Temperature(): -40~+70
Reposition Temperature(): -55~+80
Package Included: 1pcs NOYITO 900MHz 915MHz Antenna 5dBi Gain Omnidirectional Antenna
