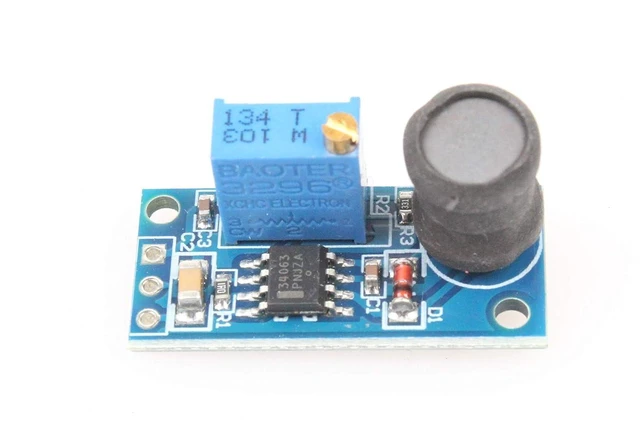

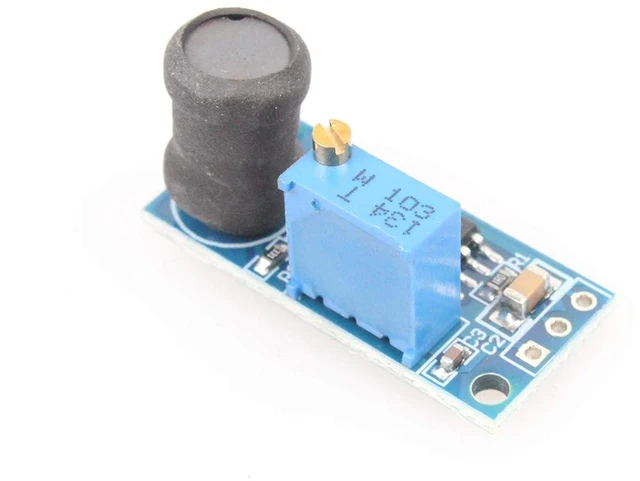

MC34063A Reverse Voltage Module +5V to -5V, +3.6V to +36V to -36V to -1.5V (Pack of 2) - Blue - Pin Header / Screw Terminal - Type A Plug
- NOYITO MC34063A _NV is a module based on MC34063A for providing reverse voltage (negative voltage). Can convert + 5V voltage to -5V voltage output. According to demand, the output voltage can be adjusted by adjusting the potentiometer.; Input voltage range: + 3.6V to + 36V.; Output voltage range: -1.5V to-36V.; Output voltage regulation characteristics: load regulation is less than 5%.; Output current: The internal switch of this module's IC is 1.5A, but in consideration of stability and heat generation, the recommended load power consumption is within 0.5W. That is, when the output is -5V, the load is within 100mA, and 50mA is recommended.
+
+
Overview
Specs
Reviews
Features: Using single-chip embedded technology. Input positive voltage and output negative voltage. Easy to operate, the output voltage can be adjusted by a potentiometer.
Technical Parameters: Input voltage range (VIN
Pin): + 3.6V to + 36V. Output voltage range (VOUT
Pin): - 1.5V to-36V.
Output voltage regulation characteristics: load regulation is less than 5%.
Output current: The internal switch of this module's IC is 1.5A, but in consideration of stability and heat generation, the recommended load power consumption is within 0.5W. That is, when the output is -5V, the load is within 100mA, and 50mA is recommended.
Size: 27.75 x 12.81 x12mm (LWH)
Note: The higher the output negative voltage, the lower the load capacity.
Instructions: VIN is connected to the input voltage; GND common ground; VOUT is connected to the output. Do not connect them in reverse to avoid damaging the components. The output voltage can be adjusted by adjusting the potentiometer.
Package Included: 2pcs NOYITO MC34063A Reverse Voltage Module
Technical Parameters: Input voltage range (VIN
Pin): + 3.6V to + 36V. Output voltage range (VOUT
Pin): - 1.5V to-36V.
Output voltage regulation characteristics: load regulation is less than 5%.
Output current: The internal switch of this module's IC is 1.5A, but in consideration of stability and heat generation, the recommended load power consumption is within 0.5W. That is, when the output is -5V, the load is within 100mA, and 50mA is recommended.
Size: 27.75 x 12.81 x12mm (LWH)
Note: The higher the output negative voltage, the lower the load capacity.
Instructions: VIN is connected to the input voltage; GND common ground; VOUT is connected to the output. Do not connect them in reverse to avoid damaging the components. The output voltage can be adjusted by adjusting the potentiometer.
Package Included: 2pcs NOYITO MC34063A Reverse Voltage Module
