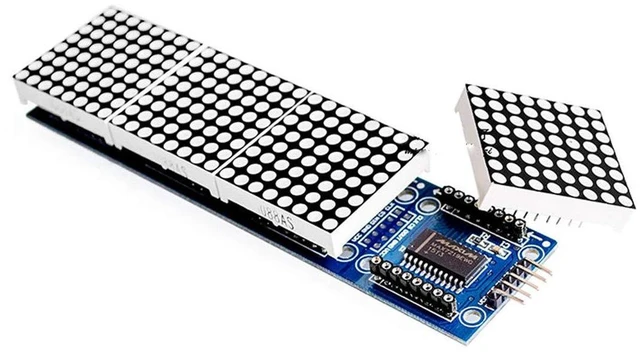

MAX7219 Dot Matrix Module 4 in 1 Display Module Blue Red Green Three Colors with 5Pin Wire - Upgrade (Blue)
- It includes an on-chip B-type BCD encoder, multi-channel scan loop, segment word driver, and an 8x8 static RAM to store each data. Only one external register is used to set the segment current of each LED.; The entire device includes a 150A low-power shutdown mode, analog and digital brightness control, a scan limit register that allows the user to display 1-8 bits of data, and a detection mode that allows all LEDs to illuminate.; A convenient four-wire serial interface can be connected to all common microprocessors. Each data can be addressed without any need to overwrite all displays when updating. The MAX7219 also allows the user to choose whether to encode or not encode each data.; There are three colors: red, blue, and green
+
+
Overview
Specs
Reviews
Module parameters: 1. A single module can drive an 8x8 common cathode matrix
2.
Module working voltage: 5V
3.
Module size: length 12.8 cm X width 3.2 cm X height 1.3 cm
4. With 16 fixing screw holes, aperture 3mm
5. Module with input and output interface, support multiple module cascade
6.

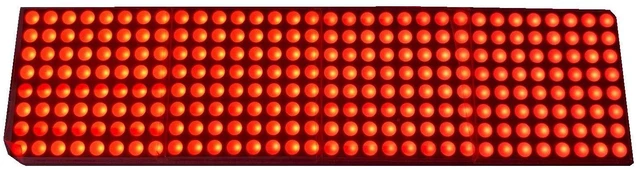

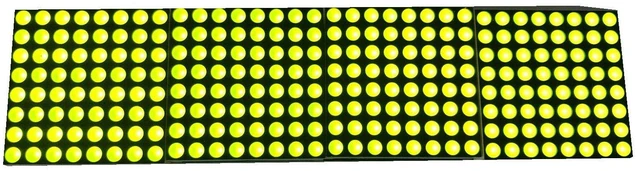

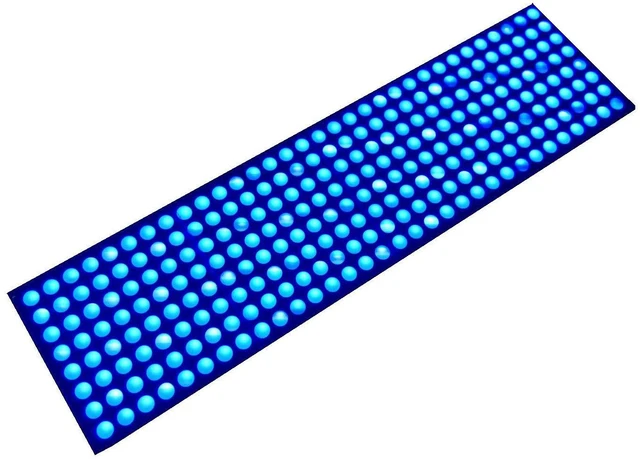

Color: red, green, blue
Wiring instructions:

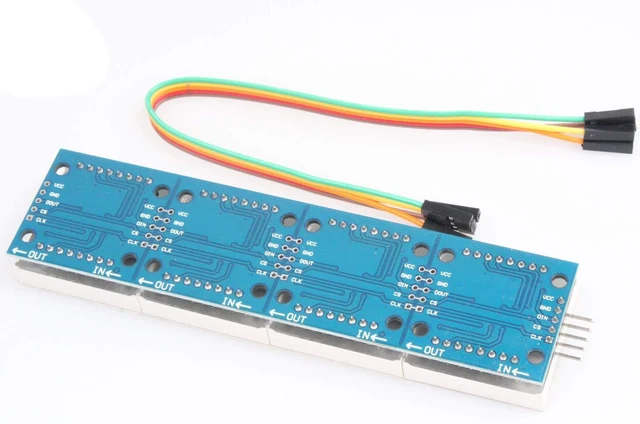

1. The left side of the module is the input port, and the right side is the output port.
2. When controlling a single module, you only need to connect the input port to the CPU.
3. When multiple modules are cascaded, the input of the first module is connected to the CPU, the output is connected to the input of the second module, the output of the second module is connected to the input of the third module, and so on. Take 51
MCU as an example: VCC 5V GND GND DIN P 2.2 CS P 2.1 CLK P 2.0
Package Included: 1pcs NOYITO MAX7219 Dot Matrix Module 4 in 1 Display Module 1pcs 20cm 5P DuPont line
2.
Module working voltage: 5V
3.
Module size: length 12.8 cm X width 3.2 cm X height 1.3 cm
4. With 16 fixing screw holes, aperture 3mm
5. Module with input and output interface, support multiple module cascade
6.
Color: red, green, blue
Wiring instructions:
1. The left side of the module is the input port, and the right side is the output port.
2. When controlling a single module, you only need to connect the input port to the CPU.
3. When multiple modules are cascaded, the input of the first module is connected to the CPU, the output is connected to the input of the second module, the output of the second module is connected to the input of the third module, and so on. Take 51
MCU as an example: VCC 5V GND GND DIN P 2.2 CS P 2.1 CLK P 2.0
Package Included: 1pcs NOYITO MAX7219 Dot Matrix Module 4 in 1 Display Module 1pcs 20cm 5P DuPont line
