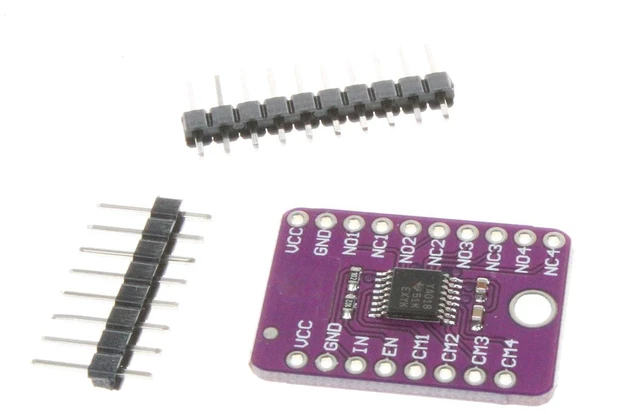

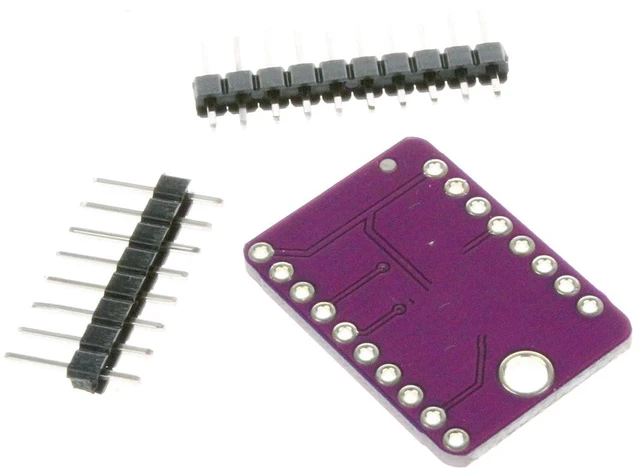

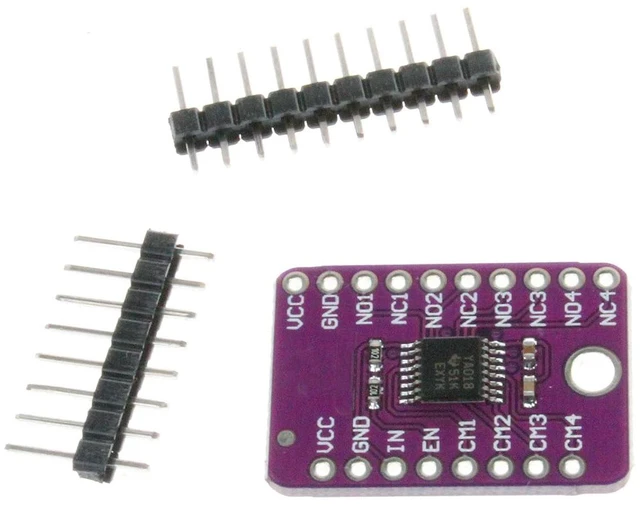

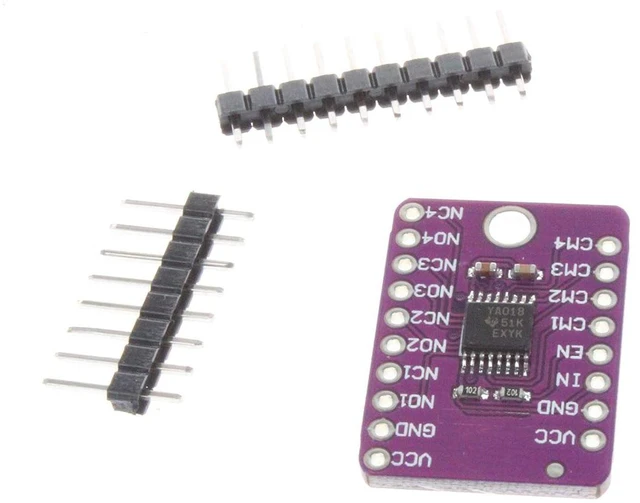

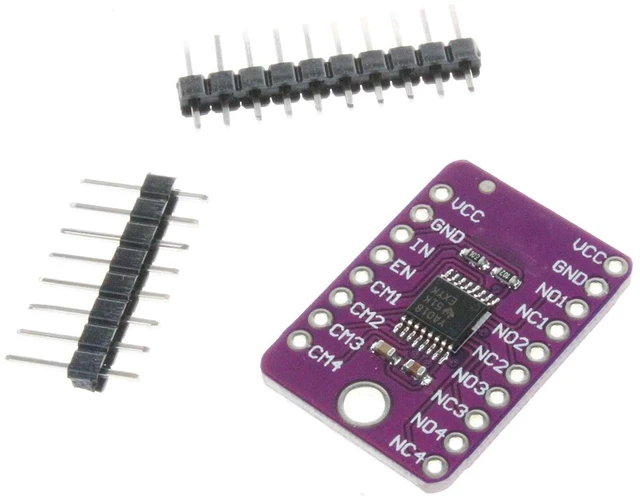

TS3A5018 10Ohm Quad Channel SPDT Analog Switch Module
Limited time offer, ends 11/01 By Kepler Forge
- The TS3A5018 is a quad single-pole double-throw (SPDT) analog switch that is designed to operate from 2.3 V to 3.6 V. This device can handle both digital and analog signals, and signals up to V+ can be transmitted in either direction.; Low ON-State Resistance (10 ); Low Charge Injection; Excellent ON-State Resistance Matching; Low Total Harmonic Distortion (THD) 2.3-V to 3.6-V Single-Supply Operation
+
+
Overview
Specs
Reviews
NOYITO TS3A5018 10 Quad Channel SPDT Analog Switch Module Doucement https: //1drv. ms/b/c/4a0865b22350d05c/IQBc0FAjsmUIIIB
KpQAAAAAAAR
JmqXw6ynJQbJcJkotb76Y? e=IVeFdl Features Low ON-State Resistance (10 ) Low Charge Injection Excellent ON-State Resistance Matching ON-state resistance (ron): 7
Ohm ON-state resistance match (ron): 0.3O hm ON-state resistance flatness (ron (flat) ): 5Ohm Low Total Harmonic Distortion (THD) 2.3 -V to 3.6 -V Single-Supply Operation Control Inputs are 5-V Tolerant Latch-Up Performance Exceeds 100 mA Per JESD 78, Class
II Turn-on/turn-off time (tON/tOFF): 3.5 ns/2 ns
Charge injection (QC): 2 pC
Bandwidth (BW): 300
MHz OFF isolation (OISO): -48 dB at 10
MHz Crosstalk (XTALK): -48 dB at 10
MHz Total harmonic distortion (THD): 0.2 % Leakage current (ICOM (OFF) ): +/-5
A Power-supply current (I+): 2.5 A Applications Sample-and-Hold Circuit Battery-Powered Equipment Audio and Video Signal Routing Communication Circuits
Package Inclucded: 1pcs NOYITO TS3A5018 10 Quad Channel SPDT Analog Switch Module
KpQAAAAAAAR
JmqXw6ynJQbJcJkotb76Y? e=IVeFdl Features Low ON-State Resistance (10 ) Low Charge Injection Excellent ON-State Resistance Matching ON-state resistance (ron): 7
Ohm ON-state resistance match (ron): 0.3O hm ON-state resistance flatness (ron (flat) ): 5Ohm Low Total Harmonic Distortion (THD) 2.3 -V to 3.6 -V Single-Supply Operation Control Inputs are 5-V Tolerant Latch-Up Performance Exceeds 100 mA Per JESD 78, Class
II Turn-on/turn-off time (tON/tOFF): 3.5 ns/2 ns
Charge injection (QC): 2 pC
Bandwidth (BW): 300
MHz OFF isolation (OISO): -48 dB at 10
MHz Crosstalk (XTALK): -48 dB at 10
MHz Total harmonic distortion (THD): 0.2 % Leakage current (ICOM (OFF) ): +/-5
A Power-supply current (I+): 2.5 A Applications Sample-and-Hold Circuit Battery-Powered Equipment Audio and Video Signal Routing Communication Circuits
Package Inclucded: 1pcs NOYITO TS3A5018 10 Quad Channel SPDT Analog Switch Module
