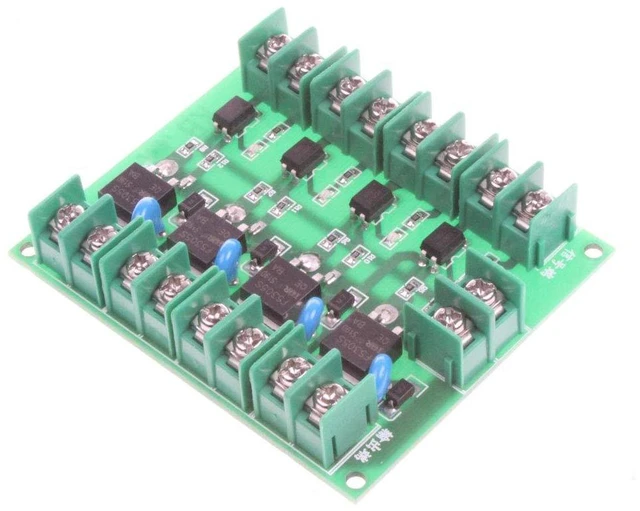

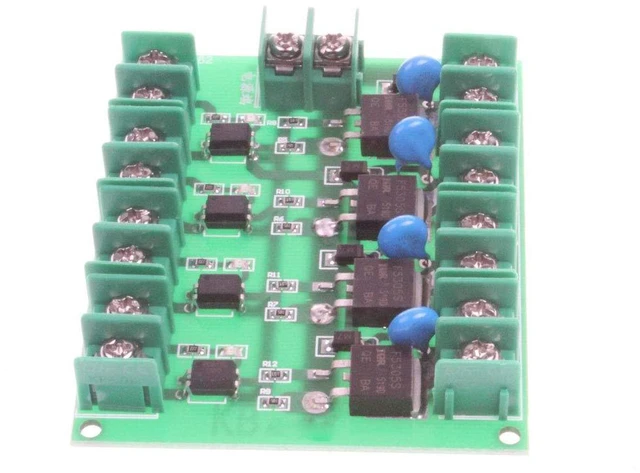

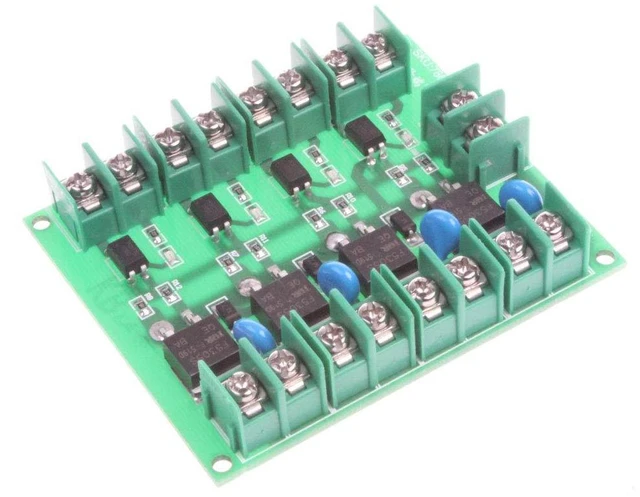

DC Control 4-Channel FET Module MOS Electronic Switch Control Board Output Controlled Voltage 5V-36V 5A Input Output Completely Isolated

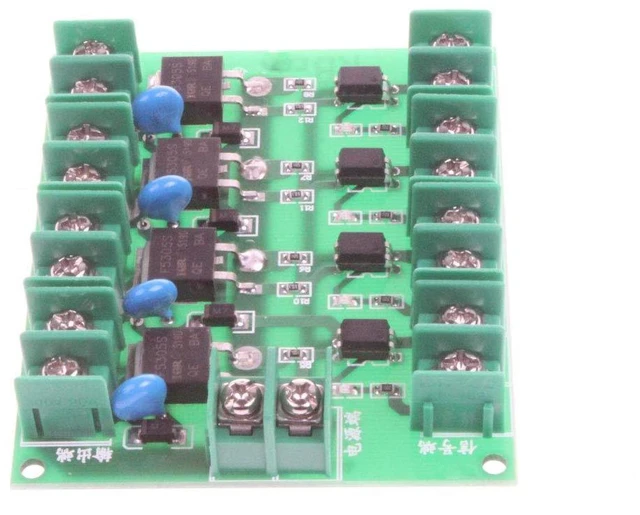

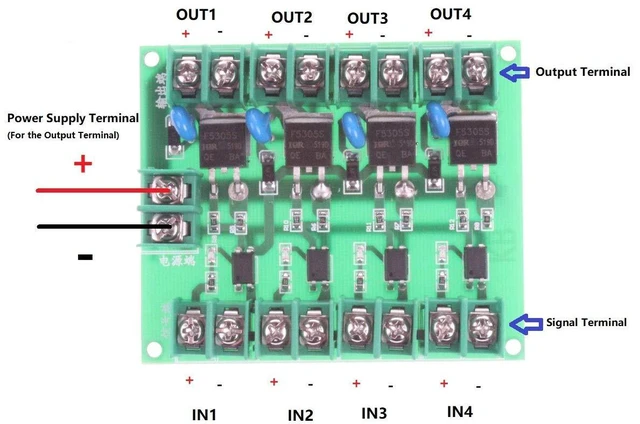

- DC Control 4-Channel FET Module, the input and output are completely isolated.; Signal trigger terminal: digital high and low level. Can be connected to the microcontroller IO port, PLC interface, DC power supply, etc.; Input signal voltage: 3V-24V; current: about 5ma. The output is suitable for controlling high-power equipment, motors, bulbs, LED strips, DC motors, micro pumps, solenoid valves, etc.; Output controlled voltage: 7V-36V. Current: less than 5A, more than 5A need to add heat sink, the maximum can not exceed 20A.; The F5305S power FET is used. [Product wiring diagram, please see the second picture on the left]
+
+
Overview
Specs
Reviews
Features: 1, To achieve high-frequency fast and frequent switching of the circuit. 2, The on-off process will not produce noise. 3, No sparks. 4, There will be no electromagnetic interference. 5, The service life is longer than the common electromagnetic relay. Parameter The input and output are completely isolated.
Signal trigger terminal: digital high and low level. Can be connected to the microcontroller IO port, PLC interface, DC power supply, etc.
Input signal voltage: 3V-24V
; current: about 5ma.
Output controlled voltage: 7V-36V.
Current: less than 5A, more than 5A need to add heat sink, the maximum can not exceed 20A. Suitable for controlling high-power equipment, motors, bulbs, LED strips, DC motors, micro pumps, solenoid valves, etc.
Package Included: 1pcs NOYITO DC Control 4-Channel FET Module MOS Electronic Switch Control Board
Signal trigger terminal: digital high and low level. Can be connected to the microcontroller IO port, PLC interface, DC power supply, etc.
Input signal voltage: 3V-24V
; current: about 5ma.
Output controlled voltage: 7V-36V.
Current: less than 5A, more than 5A need to add heat sink, the maximum can not exceed 20A. Suitable for controlling high-power equipment, motors, bulbs, LED strips, DC motors, micro pumps, solenoid valves, etc.
Package Included: 1pcs NOYITO DC Control 4-Channel FET Module MOS Electronic Switch Control Board
