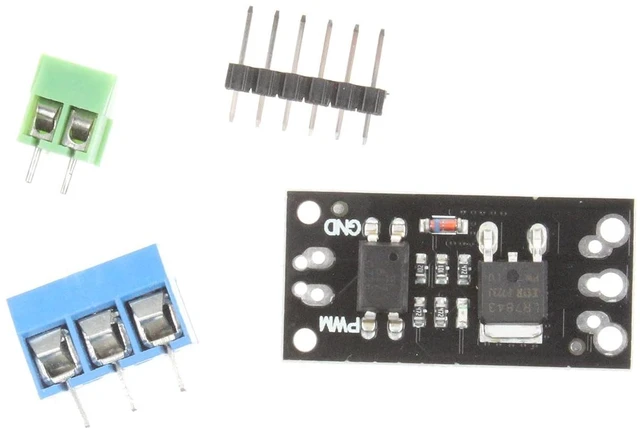

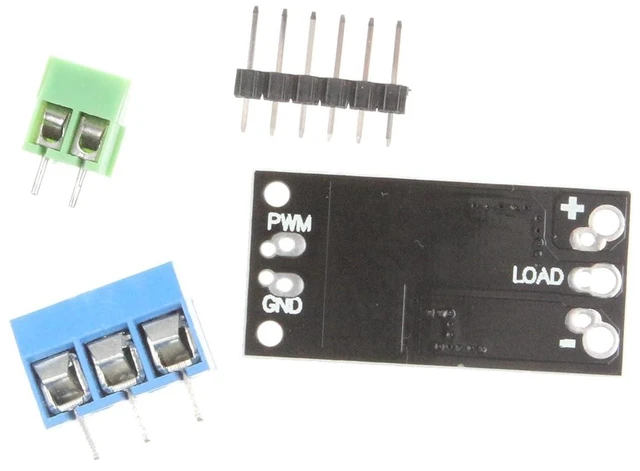

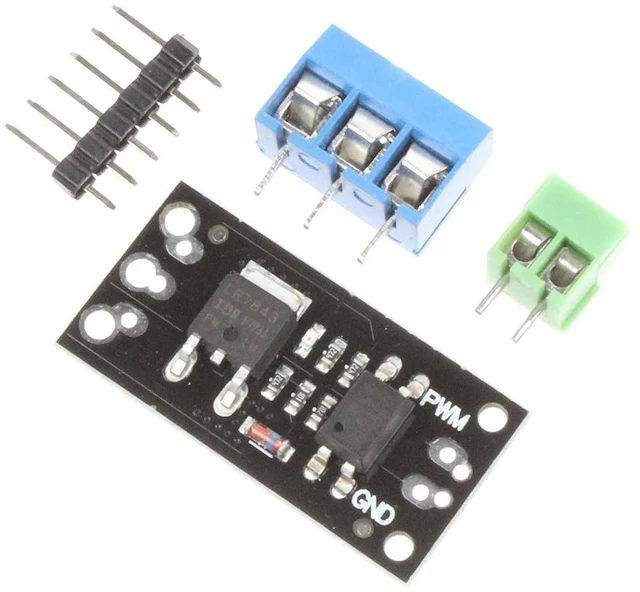

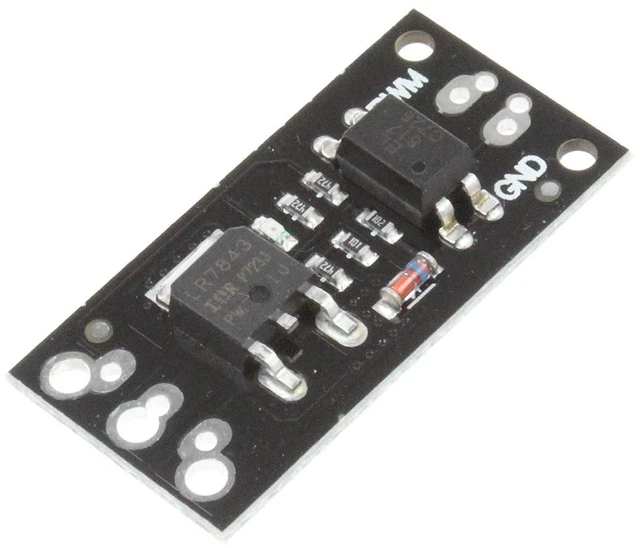

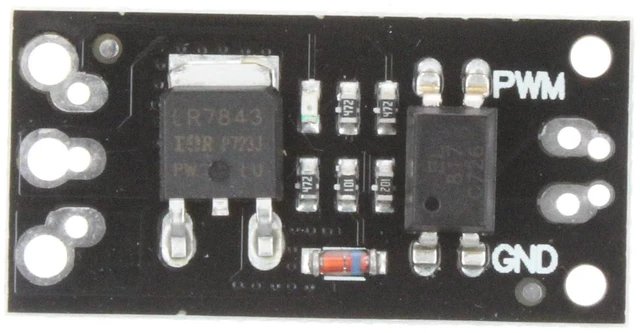

Isolated MOS FET Field Effect Transistor Module Optocoupler - (Pack of 2) (30V 161A LR7843)
- With optocoupler isolation, the control signal and the power of the controlled device are isolated.; Compatible with MCU light control board, 3V or 5V signal.; High-level start, low-level stop, PWM speed control. Widely used to control the motor start and stop, solenoid valves and other devices.; The signal input side can be soldered to the terminal or pin itself, compatible with the breadboard.
+
+
Overview
Specs
Reviews
NOYITO Isolated MOS FET Field Effect Transistor Module Wiring diagram https: //1drv. ms/u/c/4a0865b22350d05c/IQBc0FAjsmUIIIBKHQEAAAAAAS
YxFG6butuAZ7LOKyrip4s? e=Ikeqg9
Module Features:
1. With optocoupler isolation, the control signal and the power of the controlled device are isolated, and the interference is greatly improved. 2, High-level start, low-level stop, PWM speed control. 3, Widely used to control the motor start and stop, solenoid valves and other tributary devices. 4, There are 3 specifications
MOS tube options:
FR120N: 100V 9.4A / LR 7843: 30 V 161A / AOD 4184: 40 V 50A.
5. The signal input side can be soldered to the terminal or pin itself, compatible with the breadboard. 6, The output can be welded terminals or direct wire. 7, The module size 23mm X 16mm. There are 2 2mm diameter screw holes, hole spacing 8mm.
Package Included: 2pcs Isolated MOS FET Field Effect Transistor Module
YxFG6butuAZ7LOKyrip4s? e=Ikeqg9
Module Features:
1. With optocoupler isolation, the control signal and the power of the controlled device are isolated, and the interference is greatly improved. 2, High-level start, low-level stop, PWM speed control. 3, Widely used to control the motor start and stop, solenoid valves and other tributary devices. 4, There are 3 specifications
MOS tube options:
FR120N: 100V 9.4A / LR 7843: 30 V 161A / AOD 4184: 40 V 50A.
5. The signal input side can be soldered to the terminal or pin itself, compatible with the breadboard. 6, The output can be welded terminals or direct wire. 7, The module size 23mm X 16mm. There are 2 2mm diameter screw holes, hole spacing 8mm.
Package Included: 2pcs Isolated MOS FET Field Effect Transistor Module
