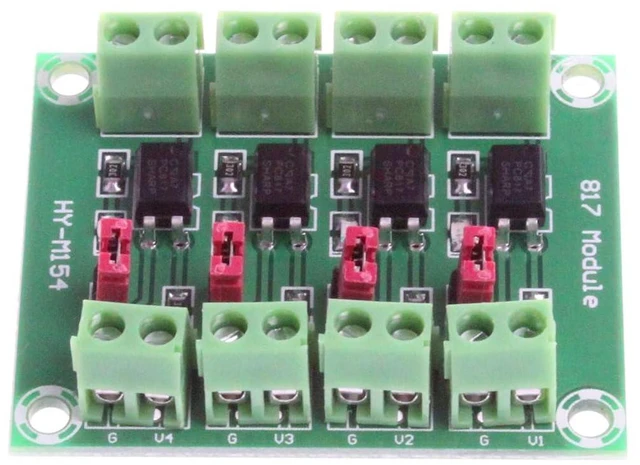

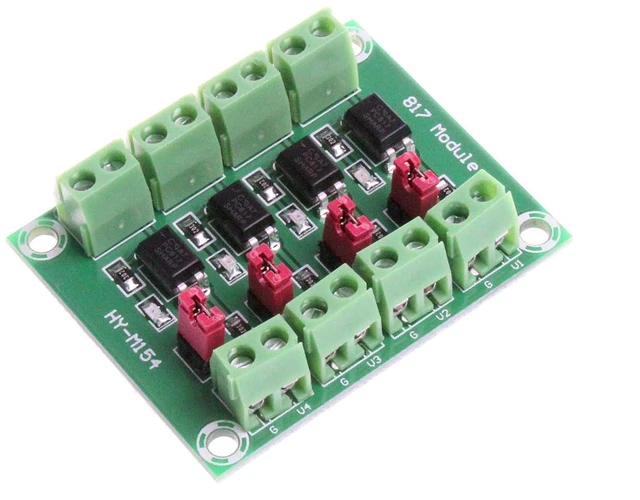

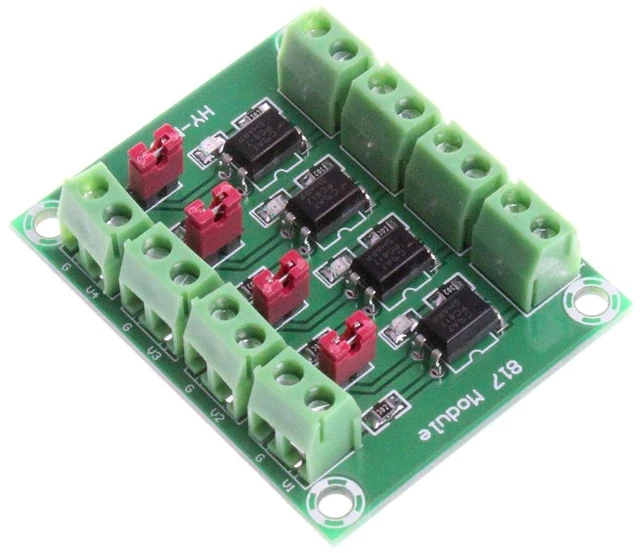

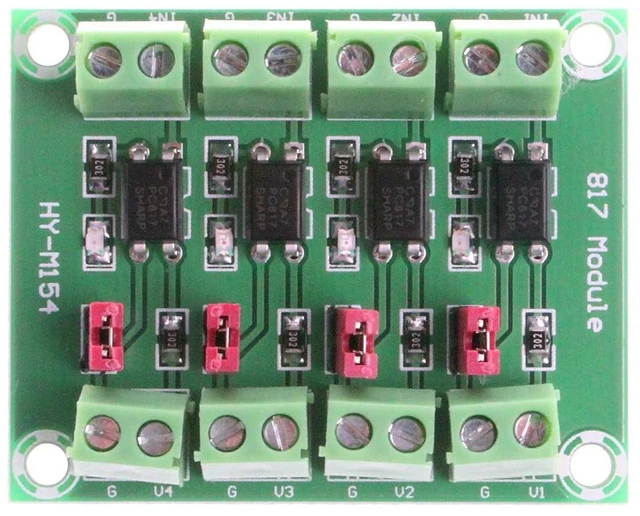

PC817 4-Channel Optocoupler Isolation Board Voltage Converter Adapter Module 3.6-30V Driver Photoelectric Isolated Module
- This module is used when it comes to the need for isolation control and voltage conversion.; Drive terminal signal voltage: 3.6-24V. Output terminal voltage range: 3.6-30V (output current depends on the specific situation but the maximum does not exceed 10MA, the total power is constant, the voltage and current are inversely proportional); It can realize 3.3V or 5V to control the interface of 3.6-30V voltage . After the control terminal is turned on, the controlled terminal will also be turned on.; Photoelectric isolation has strong anti-interference ability. It can drive high-power triodes, MOS tubes and other applications that require high-voltage driving, and can also directly drive low-power 24V relays.If it is a pulse signal, please note that the limit of 817 is 4KHZ or less. If the control signal is greater than 4KHZ, please do not use this module, it will not work properly.; 8-Channel Optocoupler Isolation Board ASIN B09RGTBDKJ
+
+
Overview
Specs
Reviews
NOYITO PC817 4-Channel Optocoupler Isolation Board User
Manual https: //1drv. ms/u/c/4a0865b22350d05c/IQBc0FAjsmUIIIB
KvwAAAAAAA
XnXufVKq8Lsp4FtKf2taAE? e=c7qCEZ
Parameter Drive terminal signal voltage: 3.6 -24V.

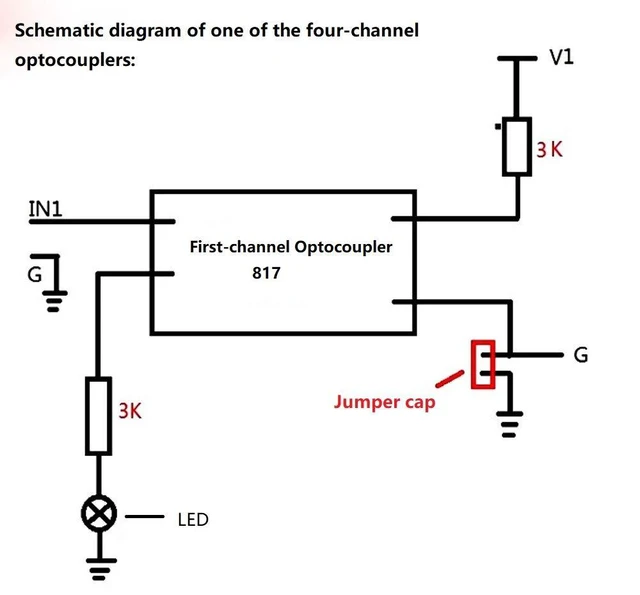

Output terminal voltage range: 3.6 -30V (output current depends on the specific situation but the maximum does not exceed 10MA, the total power is constant, the voltage and current are inversely proportional) Whether the output is a high potential output or a low potential can be realized by a jumper cap. The 4 channels 817 are separated., can achieve simultaneous control of different voltages, etc.
Board size: 48mm x 38mm (length and width); long side hole distance: 42mm; wide side hole distance: 32mm
Package Inluded: 1pcs NOYITO PC817 4-Channel Optocoupler Isolation Board
Manual https: //1drv. ms/u/c/4a0865b22350d05c/IQBc0FAjsmUIIIB
KvwAAAAAAA
XnXufVKq8Lsp4FtKf2taAE? e=c7qCEZ
Parameter Drive terminal signal voltage: 3.6 -24V.
Output terminal voltage range: 3.6 -30V (output current depends on the specific situation but the maximum does not exceed 10MA, the total power is constant, the voltage and current are inversely proportional) Whether the output is a high potential output or a low potential can be realized by a jumper cap. The 4 channels 817 are separated., can achieve simultaneous control of different voltages, etc.
Board size: 48mm x 38mm (length and width); long side hole distance: 42mm; wide side hole distance: 32mm
Package Inluded: 1pcs NOYITO PC817 4-Channel Optocoupler Isolation Board
