HTLNUZD DC5V High Precision Digital Inductance & Capacitance Meter | LCD Frequency Meter | DIY Electronic Testing Kit for Hobbyists

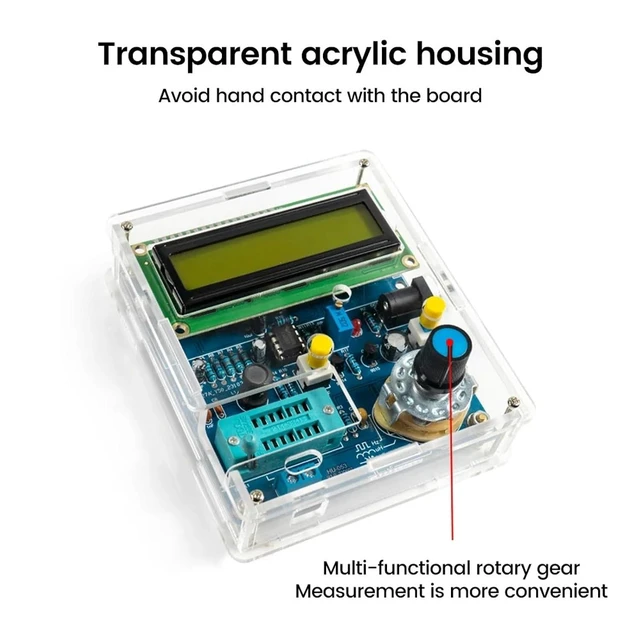

- TRANSPARENT ACRYLIC SHELL: Protects circuit board from direct hand contact, stylish and durable for long-term daily use; MULTI-FUNCTION DIY ELECTRONIC KIT: All-in-one measuring tool with simple operation, perfect for electronics enthusiasts and DIY projects; HD LCD DISPLAY: Large clear screen with sharp digital readouts, easy to view measurement results at a glance; MULTI-FUNCTION ROTARY KNOB: Allows quick function switching for more efficient and convenient measurement operation; WIDE MEASUREMENT COMPATIBILITY: Measures polar/non-polar capacitors, inductors, and frequency for versatile electronic testing
+
+
Overview
Specs
Reviews
Product parameters: Supply
voltage: USB power supply DC 5V (DC power holder)

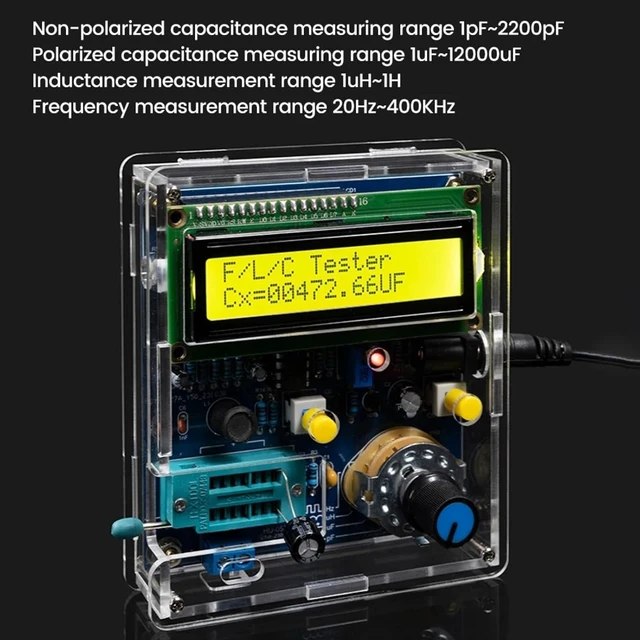

Measuring range of non-polarized capacitance: 1pF~2200pF

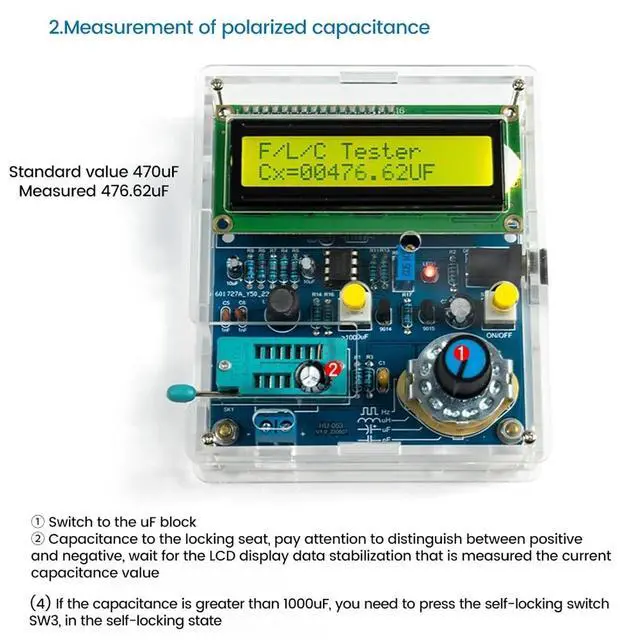

Polarized capacitance measurement range: 1uF~12000uF
Inductance measurement range: 1uH~1H
Frequency measurement range: 20Hz~400KHz
PCB board size: 91*80mm

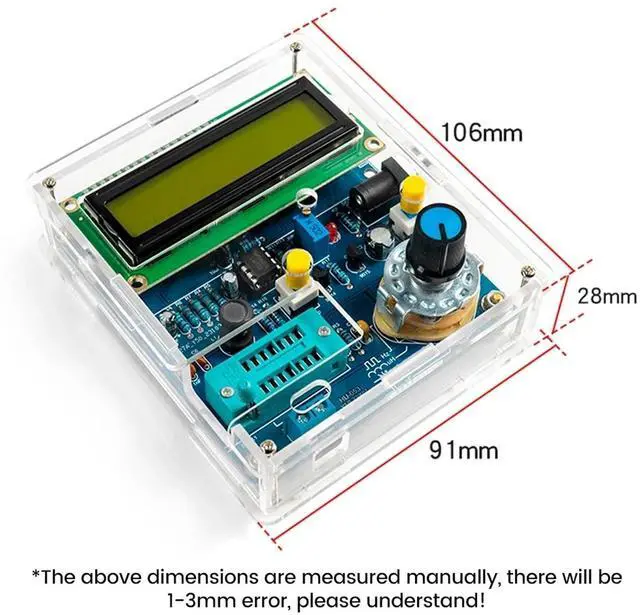

Case size: 106*91*28mm

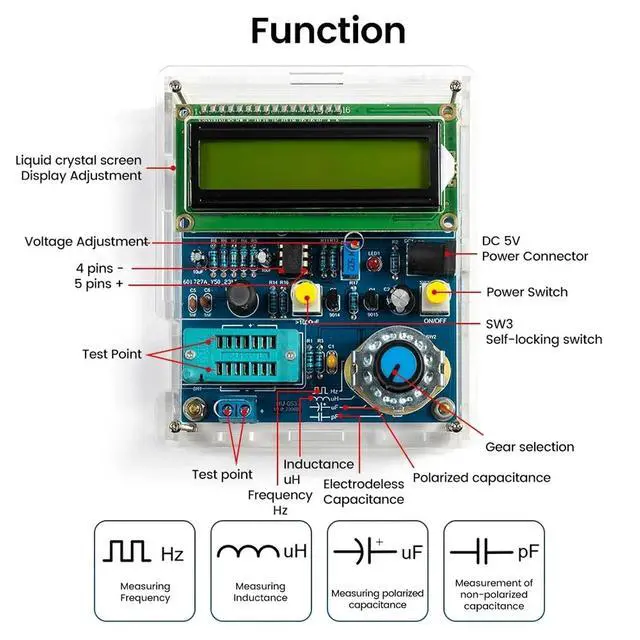

Use tips: 1, the kit power supply voltage is DC voltage 5V, try to use a power supply with less clutter and stable output. 2, each time before powering up, all the switches should be popped up, about 2 seconds after powering up before the display. 3, after the display, before installing the shell, adjust the potentiometer so that the voltage between pin 4 and pin 5 of the LM393 is 3.16V. 4, measure what components are rotated to the corresponding gear. 5, measurement of non-polarized capacitance, inductance does not distinguish between positive and negative, frequency and electrolytic capacitors to distinguish between positive and negative contact to determine good. 6, the tail number of the readings are not rounded and fictitious optimization, all the tail number has jumped is normal.

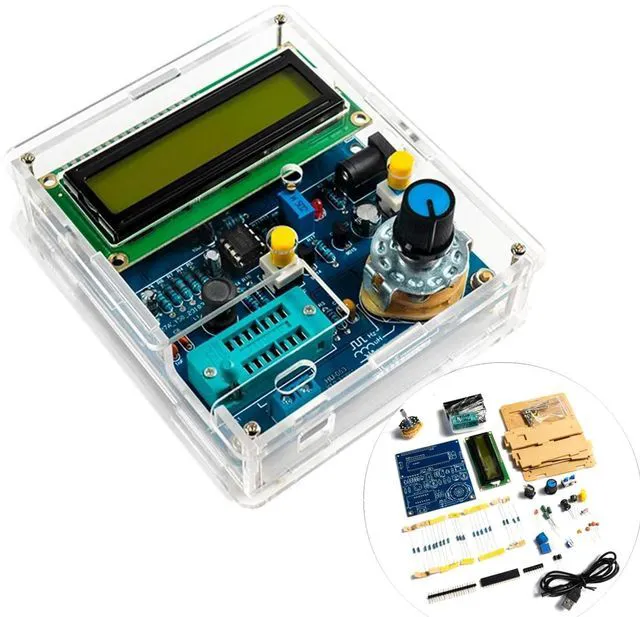

Packing list: DIY kit *1
voltage: USB power supply DC 5V (DC power holder)
Measuring range of non-polarized capacitance: 1pF~2200pF
Polarized capacitance measurement range: 1uF~12000uF
Inductance measurement range: 1uH~1H
Frequency measurement range: 20Hz~400KHz
PCB board size: 91*80mm
Case size: 106*91*28mm
Use tips: 1, the kit power supply voltage is DC voltage 5V, try to use a power supply with less clutter and stable output. 2, each time before powering up, all the switches should be popped up, about 2 seconds after powering up before the display. 3, after the display, before installing the shell, adjust the potentiometer so that the voltage between pin 4 and pin 5 of the LM393 is 3.16V. 4, measure what components are rotated to the corresponding gear. 5, measurement of non-polarized capacitance, inductance does not distinguish between positive and negative, frequency and electrolytic capacitors to distinguish between positive and negative contact to determine good. 6, the tail number of the readings are not rounded and fictitious optimization, all the tail number has jumped is normal.
Packing list: DIY kit *1
