RF Demo Kit NanoVNA Test Board, Vector Network Analyzer Calibration Board with RF Filter Attenuator Circuit, VNA Learning Tool for Antenna Analysis

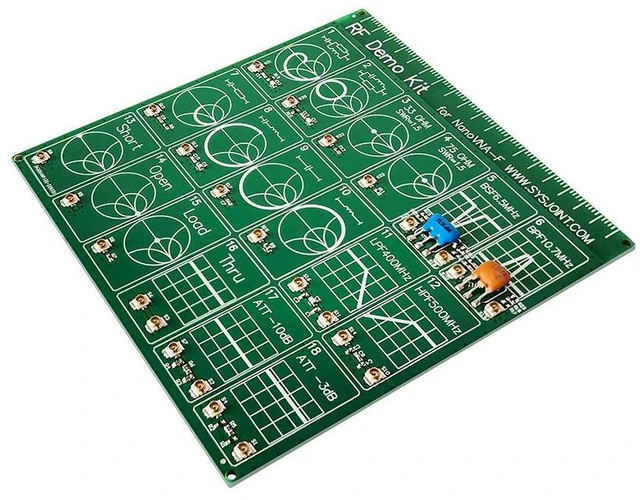

RF Demo Kit NanoVNA - A RF testing board for calibration purposes, used for learning about Vector Network Analyzers (VNA) and Antenna Analyzers. It is for testing and calibration purposes, facilitating learning on their usage.

Including:

1. Filter:

A, Shortwave Low-pass Filter LPF: 30 MHz

B, Frequency Modulation High Pass Filter (HPF): 100 MHz

C, Commonly used SAW bandpass filter BPF: 433 MHz

D, Video Ceramic Bandstop Filter BSF: 6.5 MHz

2. RLC Series-Parallel Circuit

Including R, L, C and combinational circuits

3. Short-circuit and load calibration circuit

4. Attenuation Circuit

There are a total of 18 small functional modules.

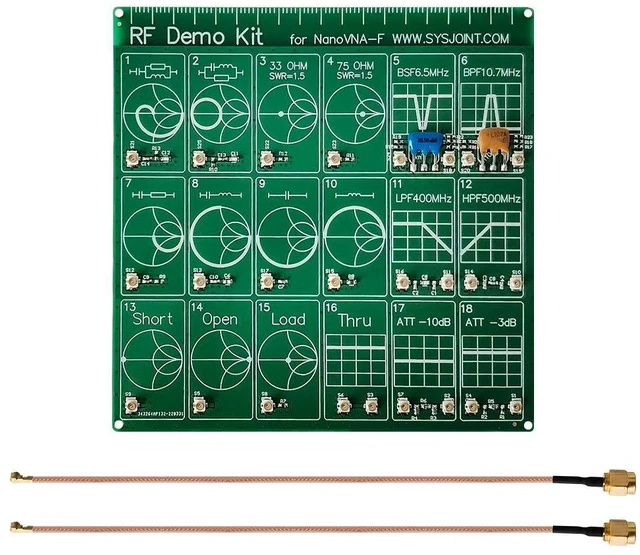

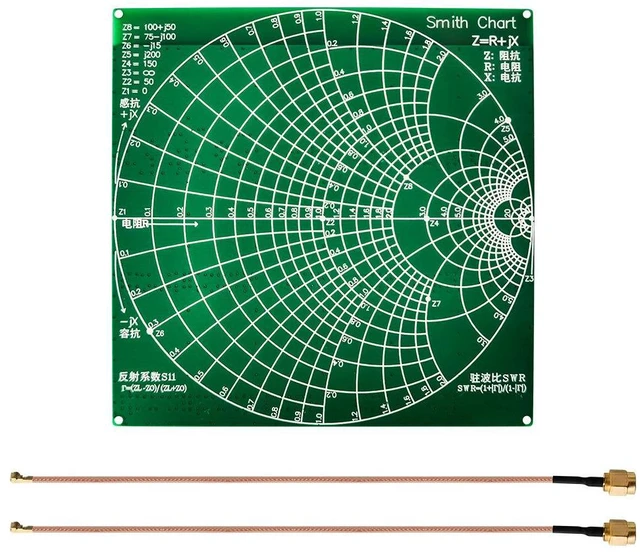

This module includes: 1 RF-Demo-Kit PCB + 2 UFL adapter cables
