RP2040-Plus, a Pico-like MCU Board Based on Raspberry Pi MCU RP2040, Plus ver.

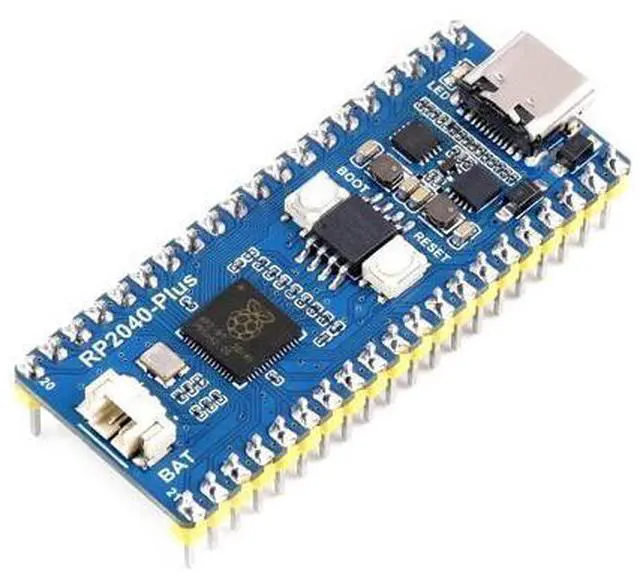

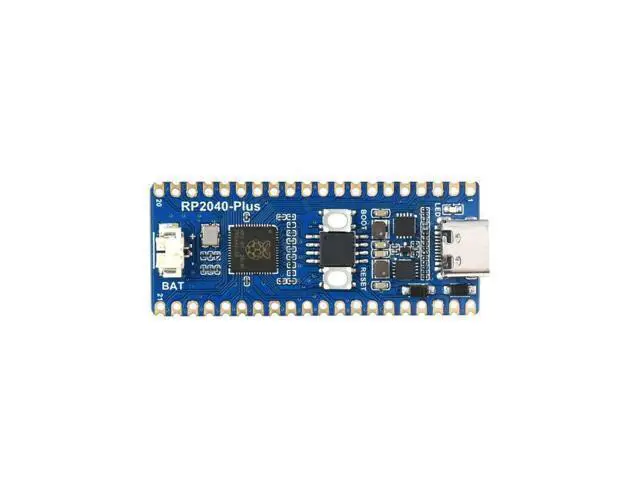

RP2040-Plus, A Low-Cost, High-Performance Pico-Like MCU Board Based On Raspberry Pi Microcontroller RP2040 Need more Flash for Raspberry Pi Pico? Dislike the outdated Micro USB connector? All these problems are solved by our RP2040-Plus now. As same as Raspberry Pi Pico, it incorporates the RP2040 microcontroller, with dual-core Arm Cortex M0+ processor running up to 133 MHz, and 26x multi-function GPIO pins. What's different, it features onboard 4MB Flash, USB-C connector, recharge header, and higher current DC-DC chip. Features RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz 264KB of SRAM, and 4MB of on-board Flash memory USB-C connector, keeps it up to date, easier to use Lithium battery recharge/discharge header, suitable for mobile devices Onboard DC-DC chip TPS63000, high efficiency DC-DC buck-boost chip, 1.8A current switch Castellated module allows soldering direct to carrier boards USB 1.1 with device and host support Low-power sleep and dormant modes Drag-and-drop programming using mass storage over USB 26 × multi-function GPIO pins 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels Accurate clock and timer on-chip Temperature sensor Accelerated floating-point libraries on-chip 8 × Programmable I/O (PIO) state machines for custom peripheral support
