4K HDMI 1.4 Type-E Female to Type A Male Video Audio Cable for Automotive Connection System Grade Connector

4K HDMI 1.4 Type-E Female to Type A Male Video Audio Cable for Automotive Connection System Grade Connector

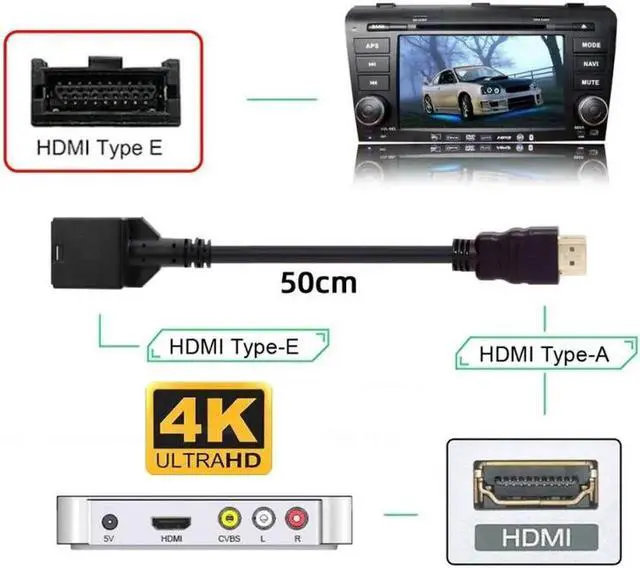

Length: 50cm

Automotive Grade Type E HDMI connector offers an enhanced experience for next generation Infotainment systems and HD media entertainment solutions.

Approved by the HDMI Association, It provides customers with HD image quality and reliable data transmission, making it ideal for automotive environments.

Automotive Connection System

Automotive video systems are increasingly popular, and car manufacturers have been asking for a way to incorporate HDMI connectivity into their vehicles.

The HDMI 1.4 specification answers that need with a new, robust automotive connection system, specifically designed to meet the demanding requirements of the road while delivering true HD video to a seatback or dashboard display.

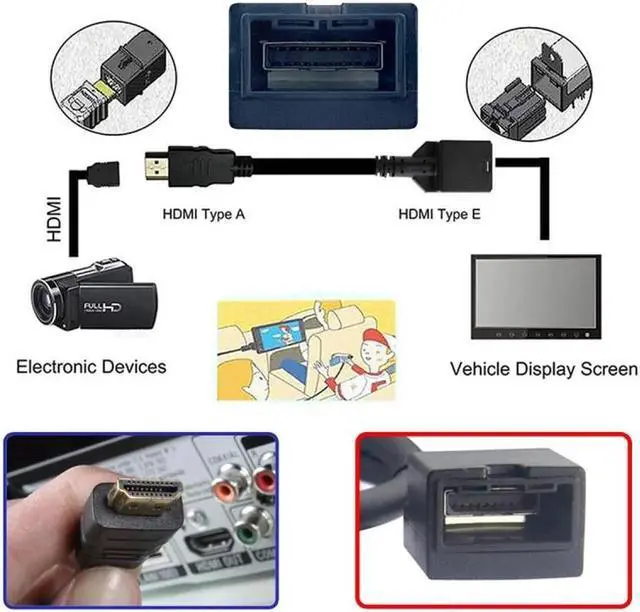

The new automotive connection system consists of two elements:

A new type of Automotive HDMI cable, designed for connections within a vehicle and tested to perform under the unique stresses of the motoring environment such as vibration and temperature extremes.

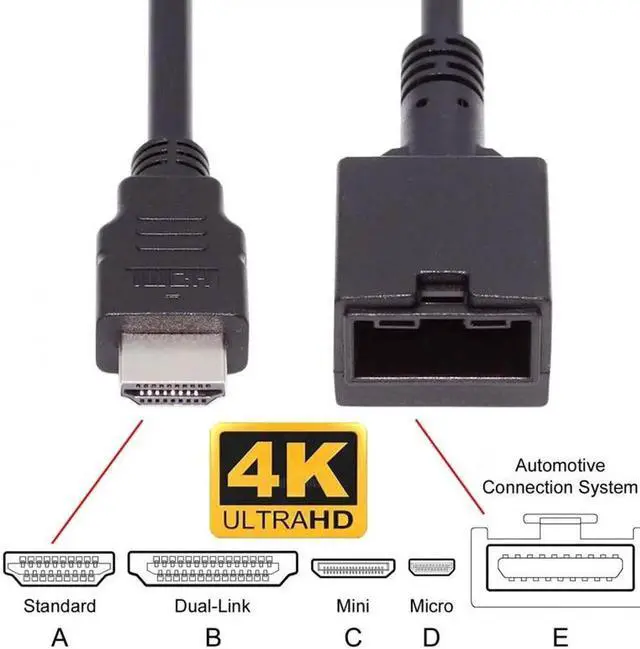

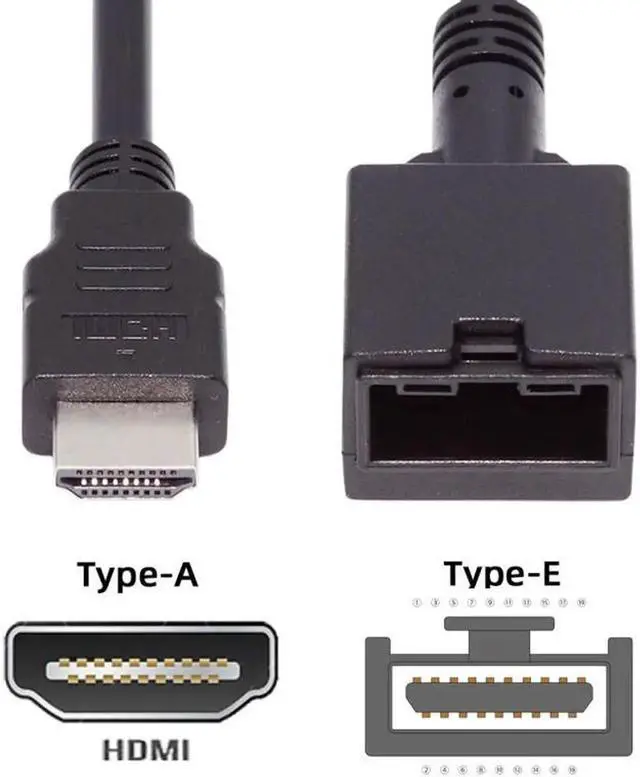

A new category of locking HDMI connector, known as the Type E connector, designed for securing

internal connections within a vehicle. Owners of HDMI-equipped vehicles will be able to easily enjoy HD video from their personal media players, HD camcorders, and other digital sources while on the go.

HDMI Type E Connector is designed for High Speed Data Transmission and to meet Automotive requirements. It has a robust design to improve vibratility and impact resistance in comparison with Consumer HDMI connectors. It is EMI optimized with full shielded design.

Smartphone connection in vehicle are rapidly increasing, HDMI Type E connector is one of the best solutions to connect smartphone video stream.

Application

Smartphone connectivity

Rear Seat Connection

Blu-ray video stream

Consumer Port

Key Features

HDMI Specification ver. 1.4 a compatible

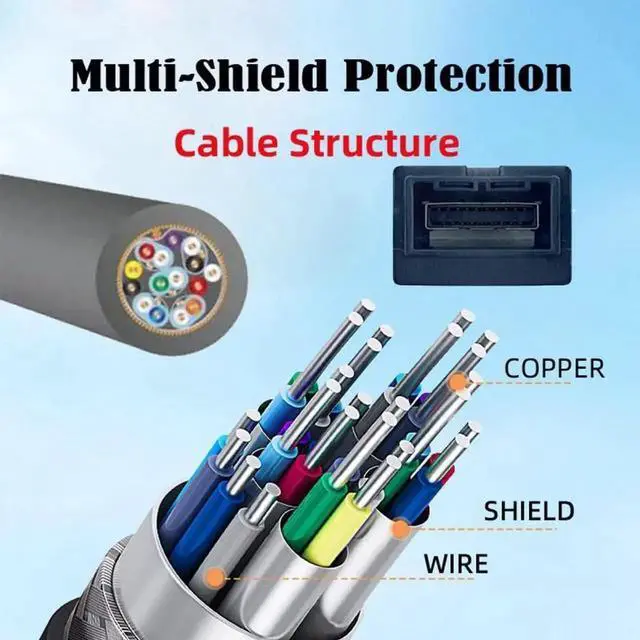

Full shielded design

Compact size, reflow soldering capable for Header
