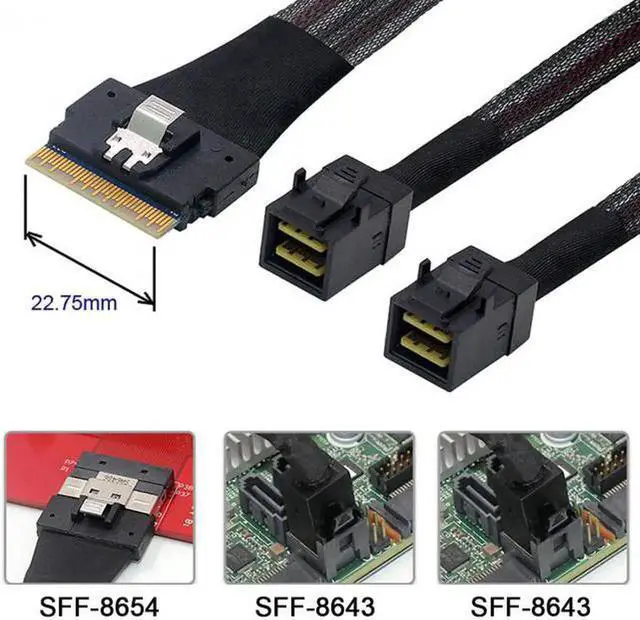

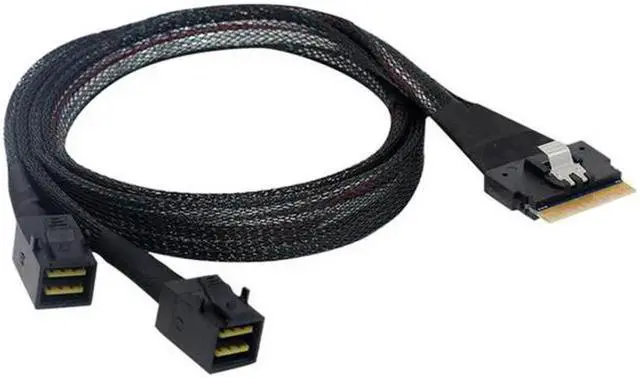

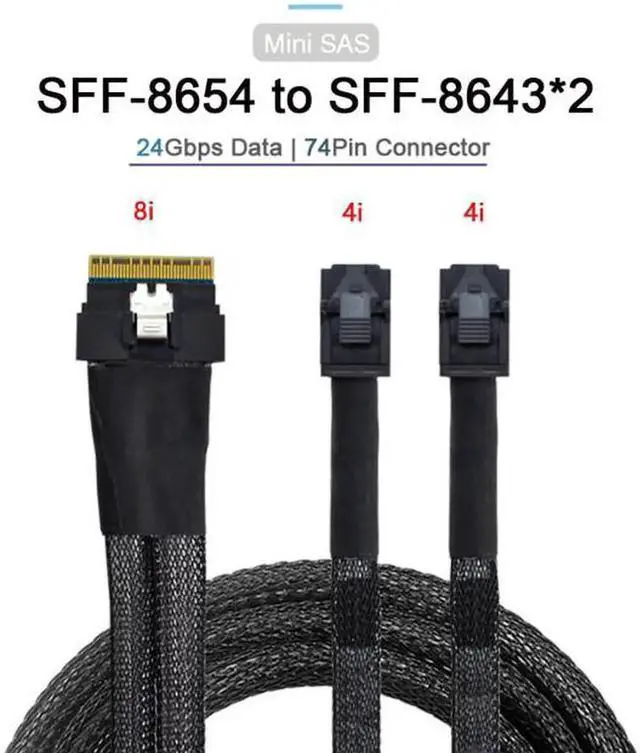

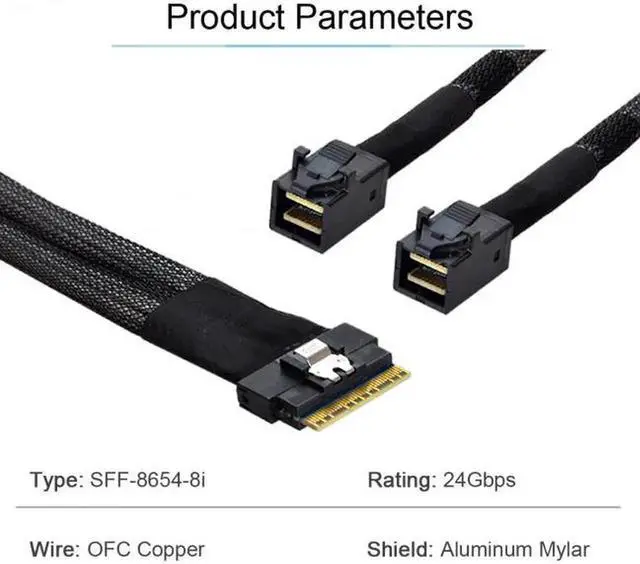

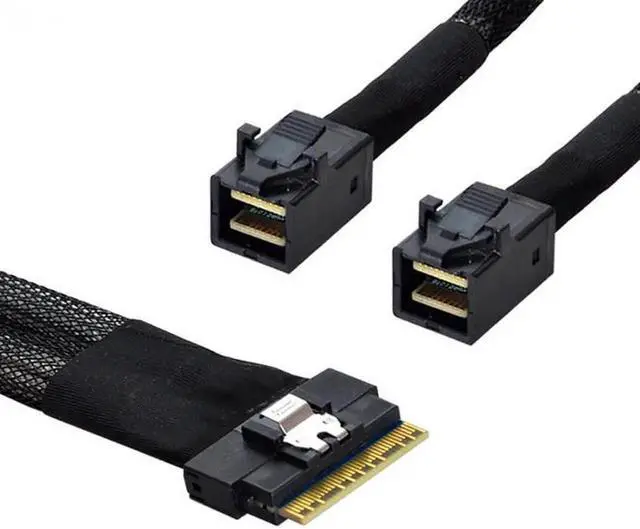

SF-010 PCI-E Ultraport Slimline SAS Slim 4.0 SFF-8654 8i 74pin to Dual SFF-8643 4i Mini SAS HD Cable PCI-Express
- PCI-E Ultraport Slimline SAS Slim 4.0 SFF-8654 8i 74pin to Dual SFF-8643 4i Mini SAS HD Cable PCI-Express

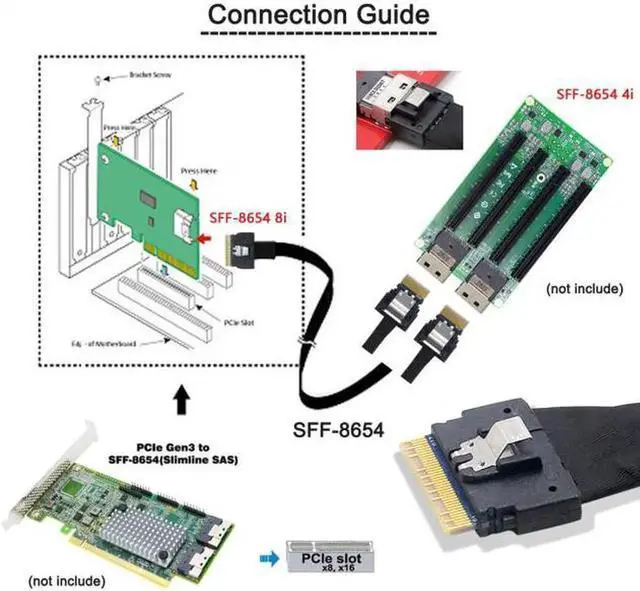

- This cable can be used to connect internal devices, e.g. a backplane with Slim Line 8654 74pin connector to a controller with SFF-8643 connector.
- Ultraport Slimline 8i 74Pos Cable Assembly
- Length: 50cm

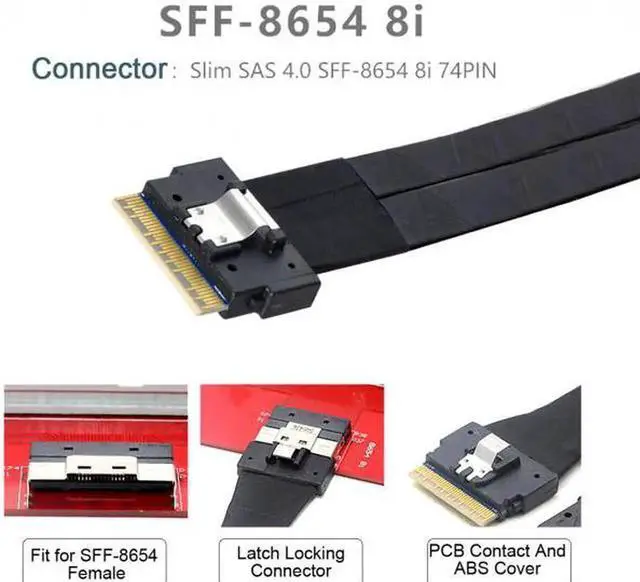

- Connector 1: Slimline SFF-8654 8i 74pin
- Connector 2: Dual SFF-8643 Mini SAS HD
- Applications for Servers,Data Storage,Workstation
- Meet PCIe Gen3/4 and SAS4.0 specification
- Features and Benefits:
- 1.Smaller size connector and cable saves device space
- 2.Provide four channels signal transmission as per industry standard
- 3.Data speed: 24Gbps for SAS and 8GT/s for PCIe per channel
- 4.Meet SAS4.0, Ultraport SlimSAS SFF-8654 specification
+
+
Overview
Specs
Reviews
- PCI-E Ultraport Slimline SAS Slim 4.0 SFF-8654 8i 74pin to Dual SFF-8643 4i Mini SAS HD Cable PCI-Express
- This cable can be used to connect internal devices, e.g. a backplane with Slim Line 8654 74pin connector to a controller with SFF-8643 connector.
- Ultraport Slimline 8i 74Pos Cable Assembly
- Length: 50cm
- Connector 1: Slimline SFF-8654 8i 74pin
- Connector 2: Dual SFF-8643 Mini SAS HD
- Applications for Servers,Data Storage,Workstation
- Meet PCIe Gen3/4 and SAS4.0 specification
- Features and Benefits:
- 1.Smaller size connector and cable saves device space
- 2.Provide four channels signal transmission as per industry standard
- 3.Data speed: 24Gbps for SAS and 8GT/s for PCIe per channel
- 4.Meet SAS4.0, Ultraport SlimSAS SFF-8654 specification
