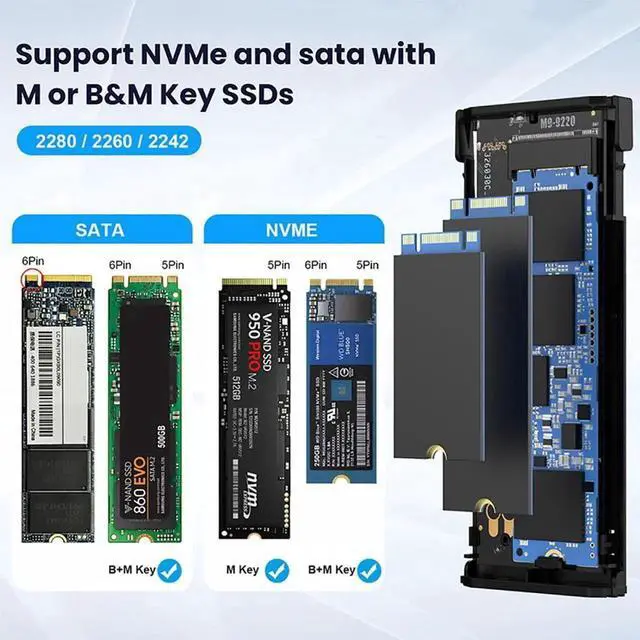

Type-C USB3.2 USB4 20Gbps to M-key M.2 NGFF NVME SATA SSD PCBA Enclosure 2280/2242/2260mm RTL9220

Limited time offer, ends 12/14 By ElectroWorks JV

Be the first to review this product...
  • Type-C USB3.2 USB4 20Gbps to M-key M.2 NGFF NVME SATA SSD PCBA Enclosure 2280/2242/2260mm RTL9220

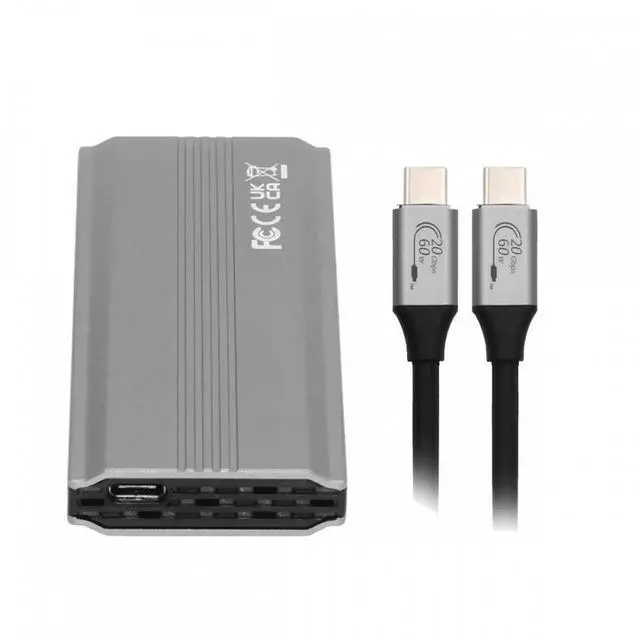

  • The item included one Enclosure,20Gbps Cable,Screwdriver. (The SSD not include.)

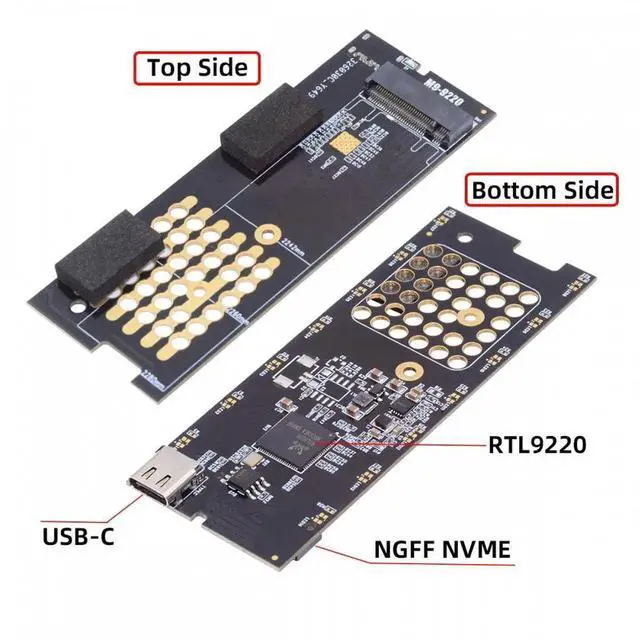

  • The RTL9220 chipset is a USB bridge that combines a USB device with both a PCIe controller and a SATA controller. Via the PEDET interface of M.2 mechanical, it can auto switch USB-to-PCIe mode, or USB-to-SATA mode.

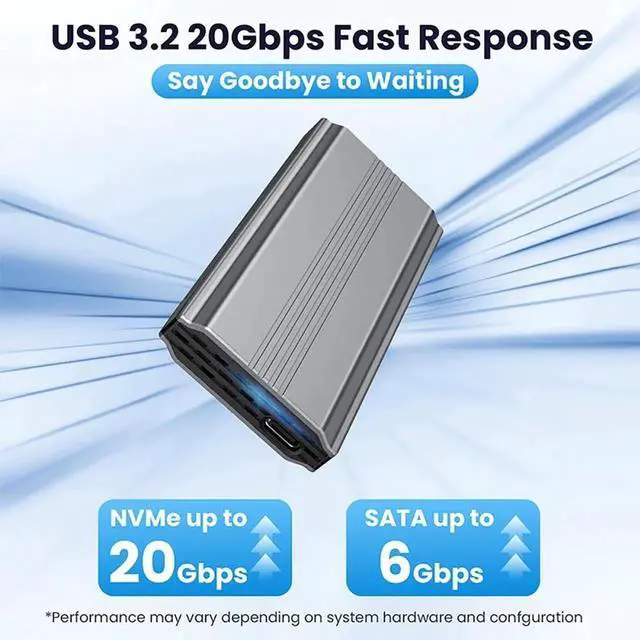

  • In USB-to-PCIe mode, the RTL9220 supports PCIe Gen3 x2. For PCIe, it provides up to USB3.2 Gen2x2 (20Gbps) bandwidth.The PCIe host supports NVM Express.
  • In USB-to-SATA mode, the RTL9220 supports SATA host in Gen3 speed. For SATA, it provides up to 6Gbps bandwidth.
+
+
Overview
Specs
Reviews
  1. Type-C USB3.2 USB4 20Gbps to M-key M.2 NGFF NVME SATA SSD PCBA Enclosure 2280/2242/2260mm RTL9220
  2. The item included one Enclosure,20Gbps Cable,Screwdriver. (The SSD not include.)
  3. The RTL9220 chipset is a USB bridge that combines a USB device with both a PCIe controller and a SATA controller. Via the PEDET interface of M.2 mechanical, it can auto switch USB-to-PCIe mode, or USB-to-SATA mode.
  4. In USB-to-PCIe mode, the RTL9220 supports PCIe Gen3 x2. For PCIe, it provides up to USB3.2 Gen2x2 (20Gbps) bandwidth.The PCIe host supports NVM Express.
  5. In USB-to-SATA mode, the RTL9220 supports SATA host in Gen3 speed. For SATA, it provides up to 6Gbps bandwidth.
