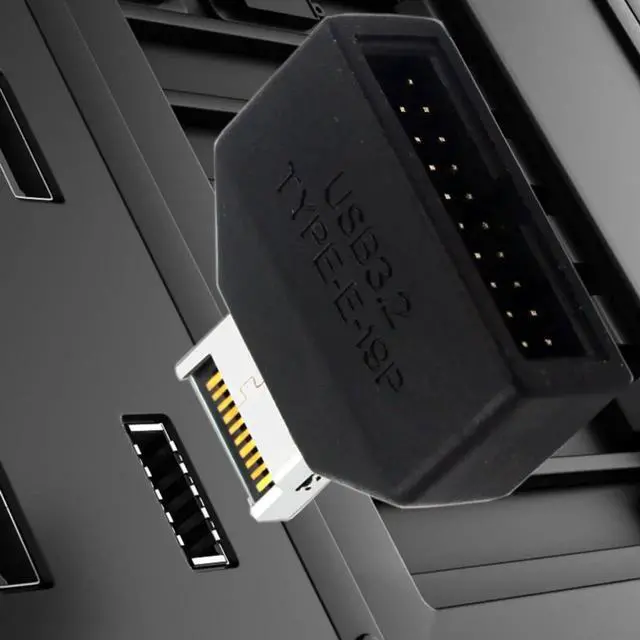

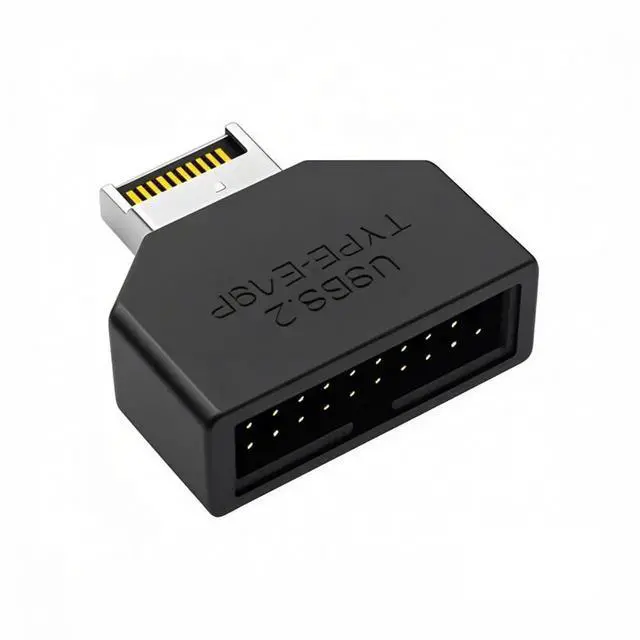

Overmold Type-E IDC Socket USB 3.1 Front Panel Header to USB 3.0 20Pin Header Extension Adapter with CH334P

Limited time offer, ends 12/16 By ElectroWorks JV

Be the first to review this product...
  • Overmold Type-E IDC Socket USB 3.1 Front Panel Header to USB 3.0 20Pin Header Extension Adapter with CH334P

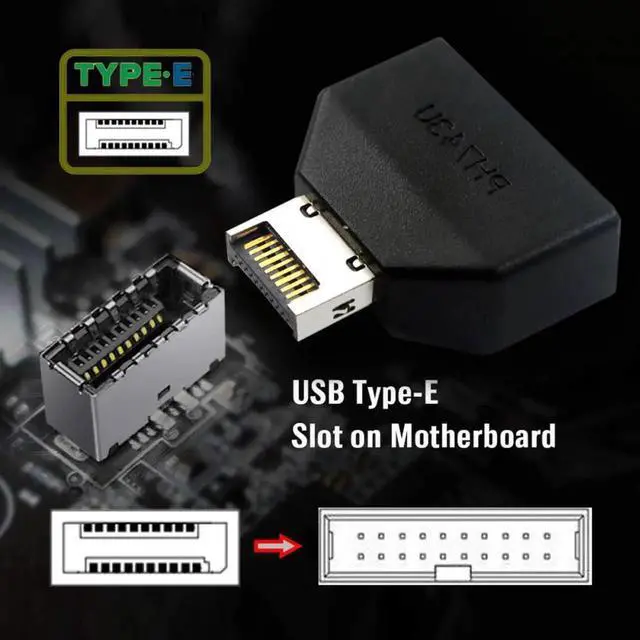

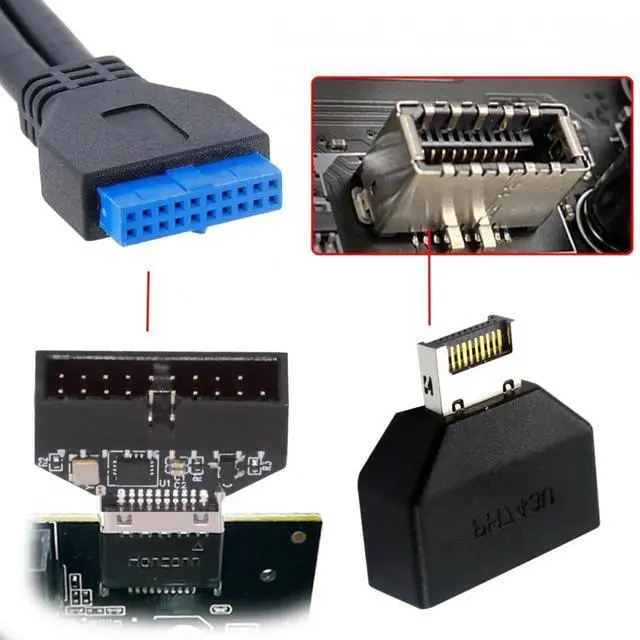

  • USB 3.2/3.1 require a different front panel header than USB 3.0.The adapteris a converter to convert the available USB-E Female of a motherboard into a USB3.2/3.1header.
  • The Type-E port supports 10Gbps USB Data from SSD/HDD. Doesn't support any audio,video and docking output, Not work for any PD power, DP alt mode.

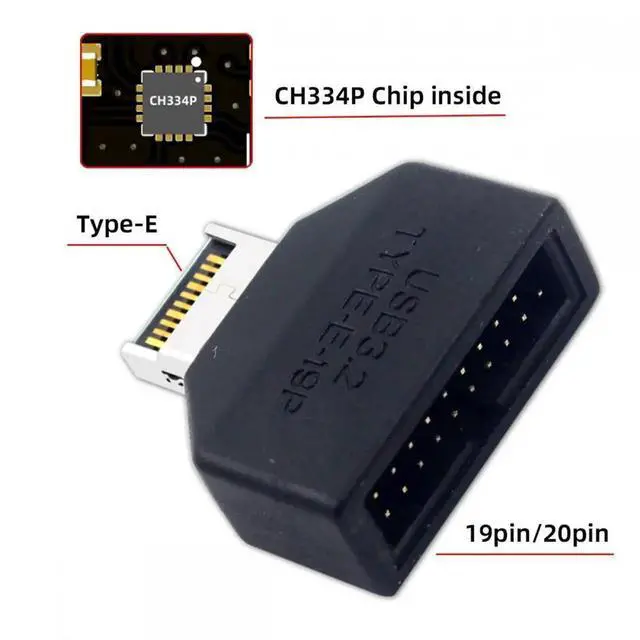

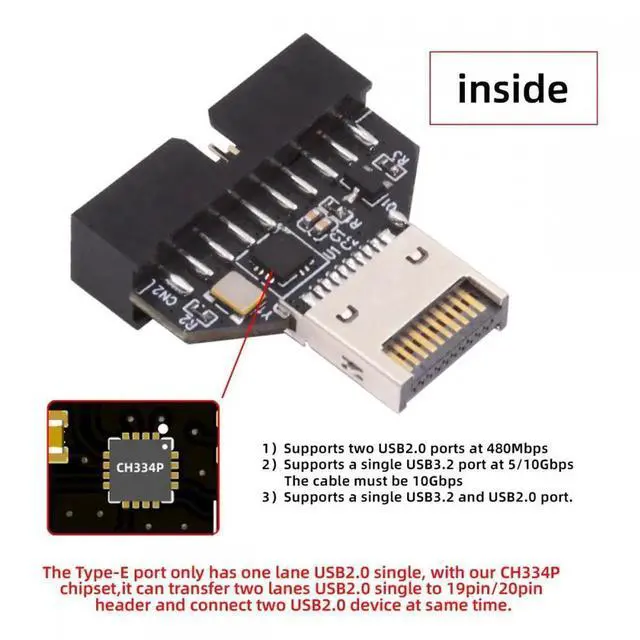

  • The Type-E port only has one lane USB2.0 singnal, with our CH334P chipset, it can transfer two lanes USB2.0 singnal to 19pin/20pin header and connect two USB2.0 device at same time.

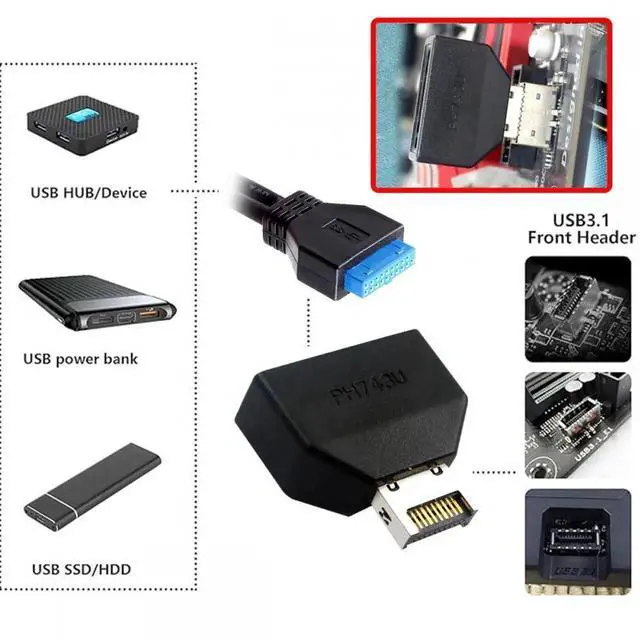

  • The Type-E adapter is a converter to convert the available USB 3.1 header of a motherboard into a USB 3.0/20pin header.
  • The compact adapter can be inserted directly and requires no additional attachments.Converter plug-in for the mainboard, Fits into any USB 3.0 header, Bundling in USB 3.1 with up to 10Gbps.
+
+
Overview
Specs
Reviews
  1. Overmold Type-E IDC Socket USB 3.1 Front Panel Header to USB 3.0 20Pin Header Extension Adapter with CH334P
  2. USB 3.2/3.1 require a different front panel header than USB 3.0.The adapteris a converter to convert the available USB-E Female of a motherboard into a USB3.2/3.1header.
  3. The Type-E port supports 10Gbps USB Data from SSD/HDD. Doesn't support any audio,video and docking output, Not work for any PD power, DP alt mode.
  4. The Type-E port only has one lane USB2.0 singnal, with our CH334P chipset, it can transfer two lanes USB2.0 singnal to 19pin/20pin header and connect two USB2.0 device at same time.
  5. The Type-E adapter is a converter to convert the available USB 3.1 header of a motherboard into a USB 3.0/20pin header.
  6. The compact adapter can be inserted directly and requires no additional attachments.Converter plug-in for the mainboard, Fits into any USB 3.0 header, Bundling in USB 3.1 with up to 10Gbps.
