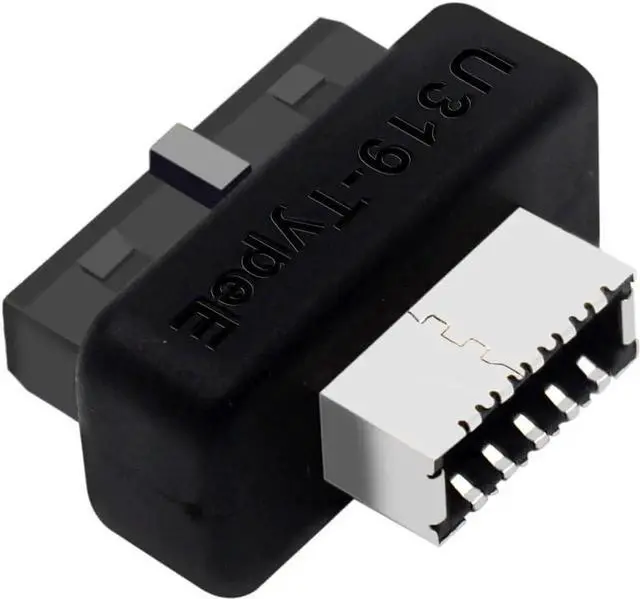

PH73S+ USB Front Panel Adapter 10Gbps Type-E USB 3.0 Front 19PIN to 3.1 USB C Header Support for Motherboard with USB 3.0 USB3.1 19PIN Interface

PH73S+ USB Front Panel Adapter 10Gbps Type-E USB 3.0 Front 19PIN to 3.1 USB C Header Support for Motherboard with USB 3.0 USB 3.1 19PIN

InterfaceProduct Parameters:

Model: PH73S+

Color: Black

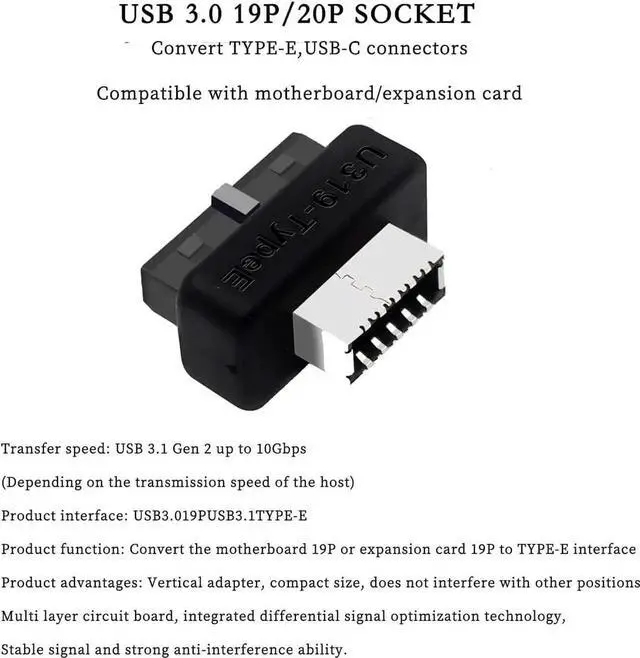

Transmission Speed: USB 3.1 Gen2 up to 10Gbps (depending on the host side of the transmission speed)

Interface: USB 3.0 19P, USB 3.1 TYPE-E.

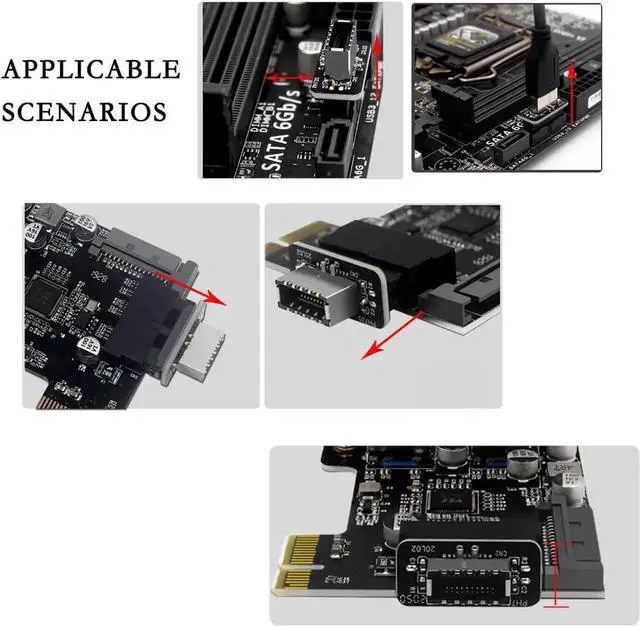

Function: 19P motherboard or expansion card 19P to TYPE-E interface.

Advantages: Vertical adapter, compact size, does not interfere with other positions.

Multi-layer circuit board, integrated differential signal optimization technology, signal stability, strong anti-interference ability.

Instructions for use:

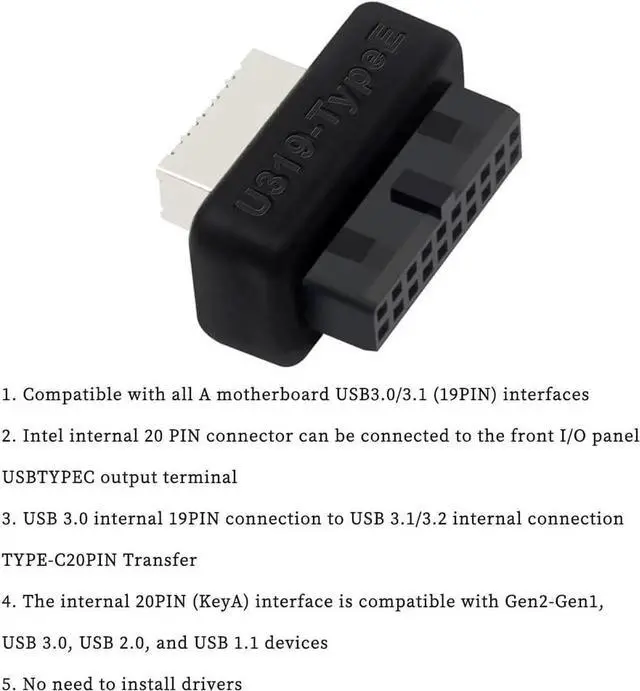

1. Support all motherboard USB 3.0 / 3.1 (19PIN) interface.

2. Intel-compatible internal 20-PIN connector can be connected to the USB C output of the front I/0 panel.

3. USB 3.0 internal 19PIN to USB 3.1 / 3.2 internal USB-C 20PIN adapter.

4. Internal 20PIN (KeyA) connector supports (Gen2-Gen1) USB 3.0, USB 2.0 and USB 1.1 devices.

5. No driver installation required

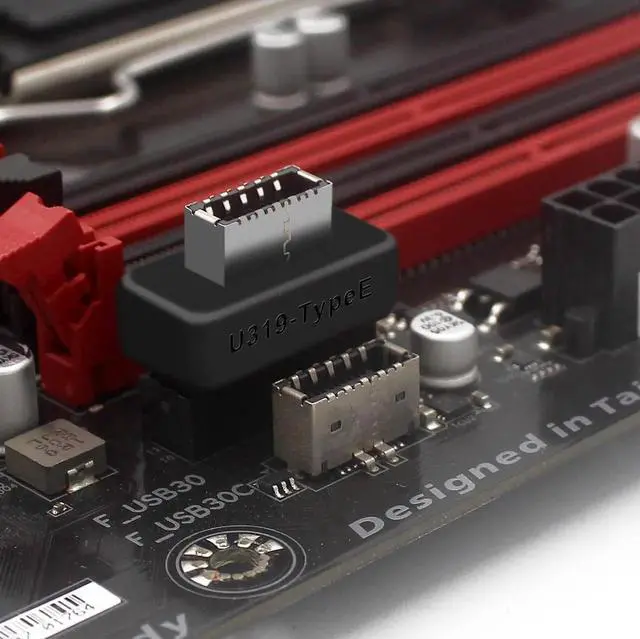

Through the 19pin connector on the motherboard, PH73S Convert it to a 20pin Key A interface to make the original function that support Type A support USB C, easy to expand the functions of the motherboard without wasting the chassis of the USB C interface.
