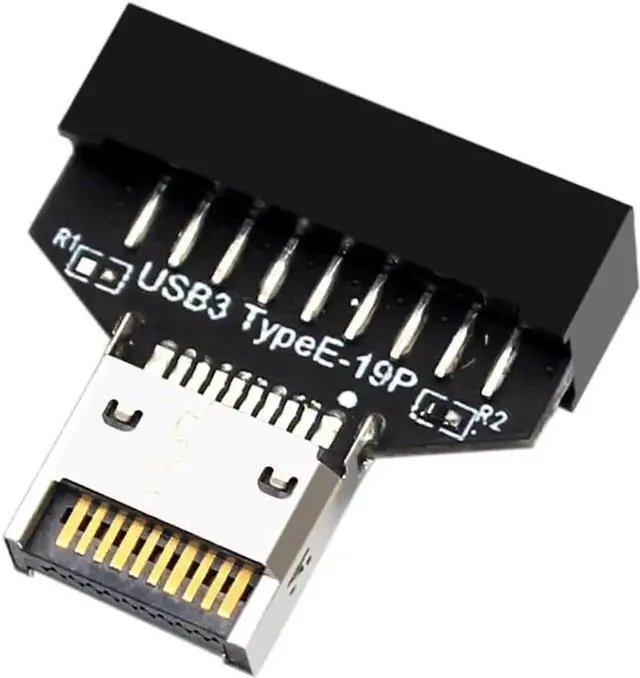

PH743 Motherboard USB3.2 Type-E 20Pin to USB 19P Connector Chassis Front USB TypeA USBC Expansion

PH743 Motherboard USB 3.2 Type-E 20Pin to USB 19P Connector Chassis Front USB TypeA USBC ExpansionModel: PH743

Color: Black

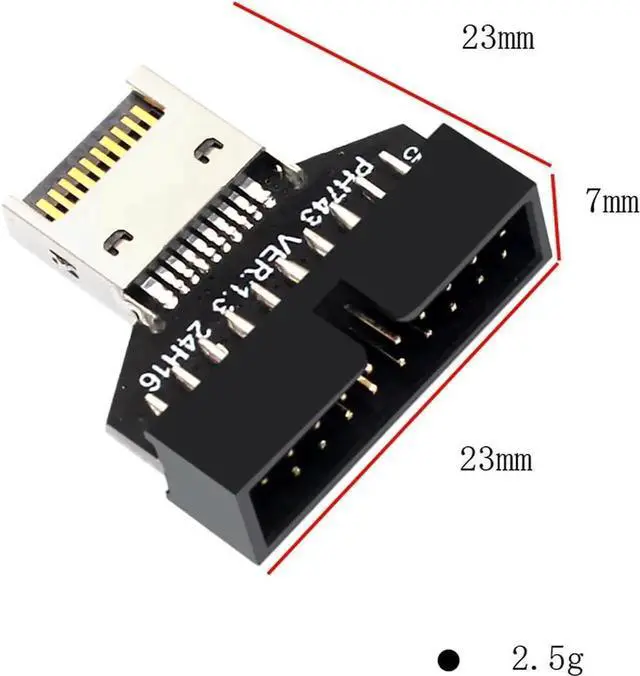

Size: 23*23*7mm.

Transmission speed: USB 3.2 (depending on the transmission speed of the host)

Interface: USB19P, USB 3.2 TYPE-E

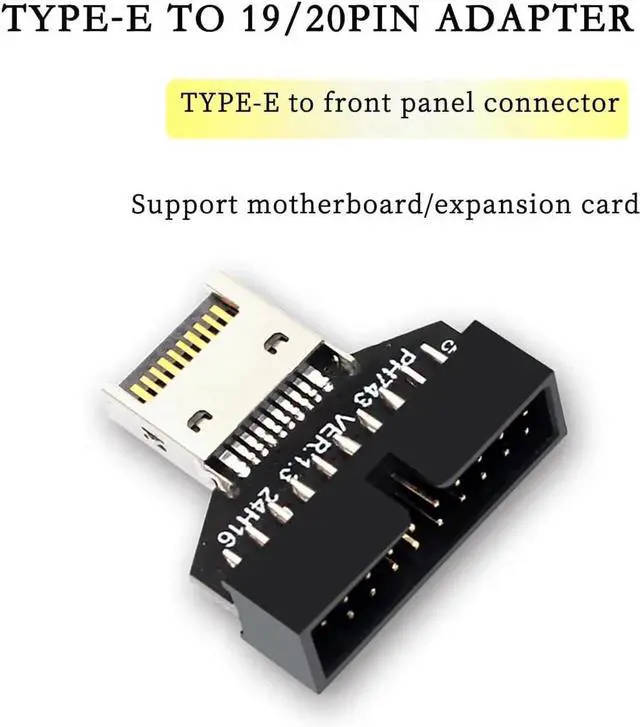

Function: TYPE-E motherboard or expansion card TYPE-E interface to USB19P interface.

Advantages:

Vertical adapter, compact size, does not interfere with other positions.

Multi-layer circuit board, integrated differential signal optimization technology, signal stability, anti-interference ability.

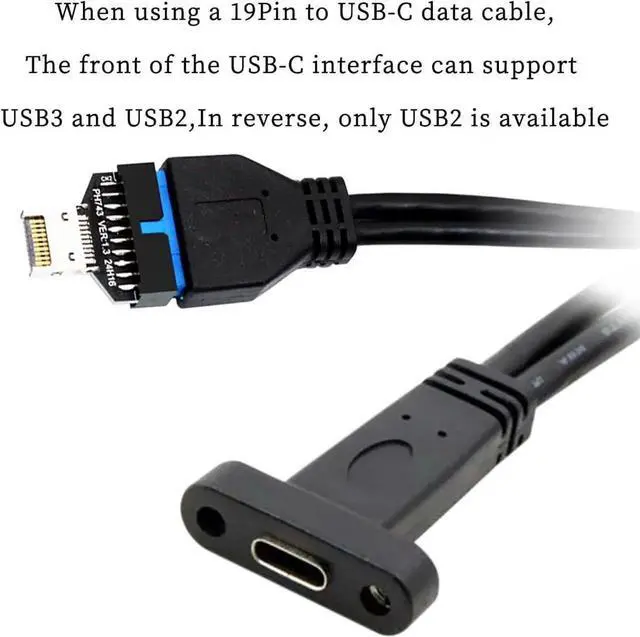

When using 19Pin to USB-C cable, the USB-C interface can support USB3 and USB2 on the front side, the reverse is only USB2.

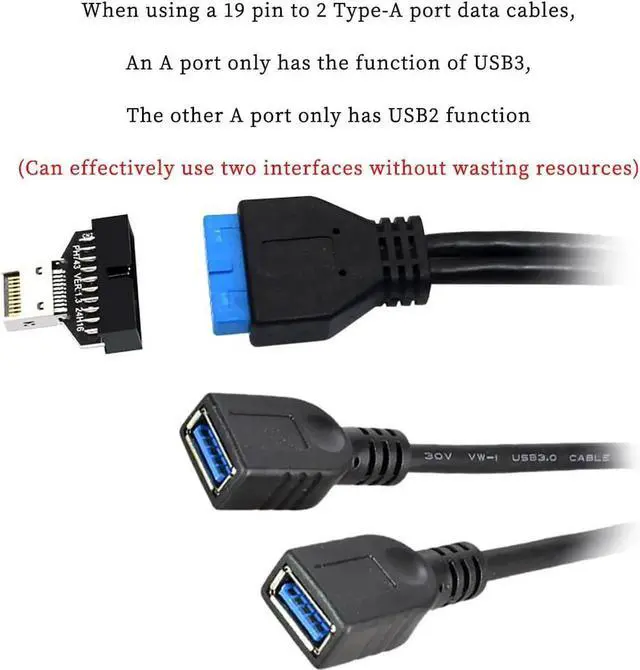

When using 19Pin to 2 Type-A port data cable, one A port only has USB3 function, the other A port only has USB2 function.

When using 19Pin to a single Type-A enclosure cable, may only have USB2 function (no USB3), may only have USB3 function (no USB2).

Because each cable definition is different, so the final USB function is different.

(Can effectively use the two interfaces, reasonable without waste)
