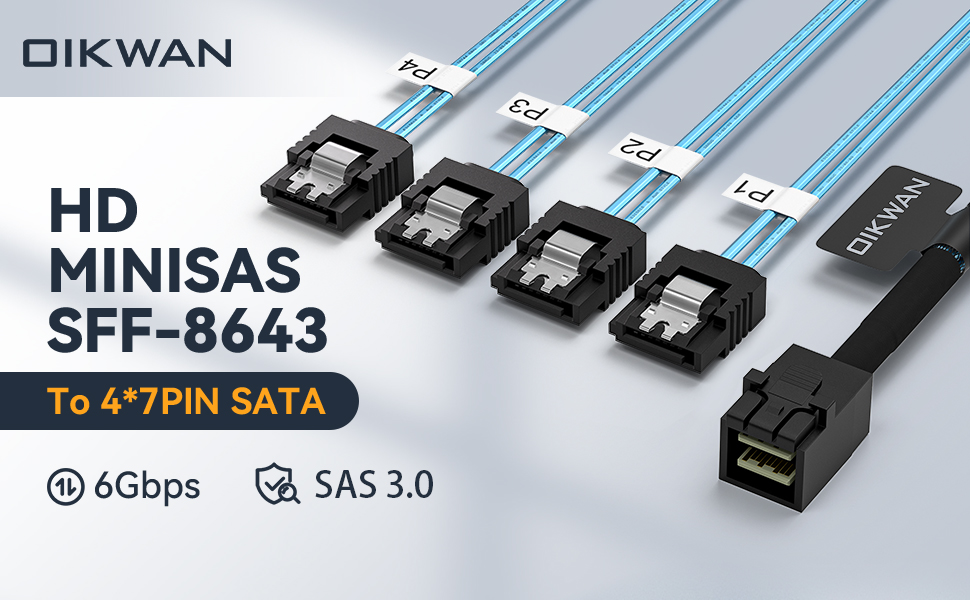

HD MINI SAS SFF-8643 to 4SATA
- For enterprise storage solutions, using HD MINI SAS SFF-8643to 4 SATA 7-pin adapter is a common configuration method.
- This type of adapter allows systems based on SAS controllers to connect to standard SATA hard disk drives or solid-state drives (SSDs), enabling more flexible storage configurations and expansion capabilities.
- HD SAS (High Density Serial Attached SCSI) is a high-density serial attached SCSI interface primarily used for connecting storage devices such as hard disk drives (HDDs), solid-state drives (SSDs), and tape drives.
- The HD SAS interface supports various data transfer speeds, including 6Gbps, 12Gbps, and even 22Gbps, depending on the implemented SAS standard (such as SAS-2, SAS-3). This interface design allows multiple channels to transmit data through a single connector, increasing system design flexibility and storage device connectivity capabilities.
HD MINI SAS SFF-8643 Connector.
SAS3.0, 100 ohm.
With sideband.

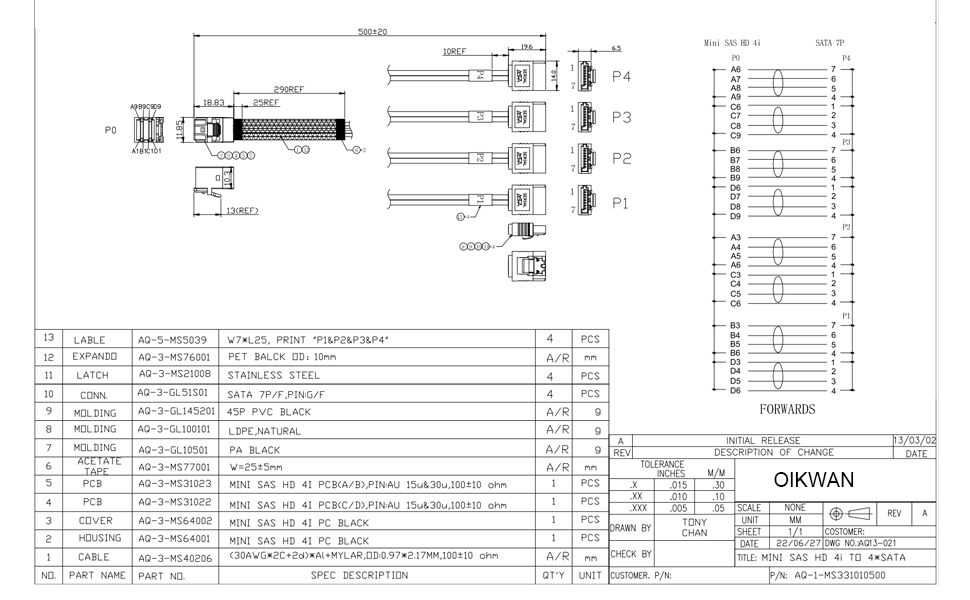

Detailed introduction.
