X-1250, X-1050, X-850, X-750, X-650 Gold Modular PSU 8Pin to 4+4Pin EPS 12V CPU Power Cable Flat 18AWG 70CM

Genuine New Seasonic X-1250, X-1050, X-850, X-750, X-650 Gold Modular PSU 8Pin to 4+4Pin EPS 12V CPU Power Cable Flat 18AWG 70CM

* Pre-Purchase Notes:

1. These cables are original and new. Quality is more better than copy fake cable.

2. Different Brands & Series cables are not common used, mix using may cause damage.

3. Please check compatibility with us before you buy. If buy wrongly, please contact us first, do not accept bad rating.

Description

Manufacturer: Seasonic.

Length: 70CM/ 27.6 inch/ 2.3 ft.

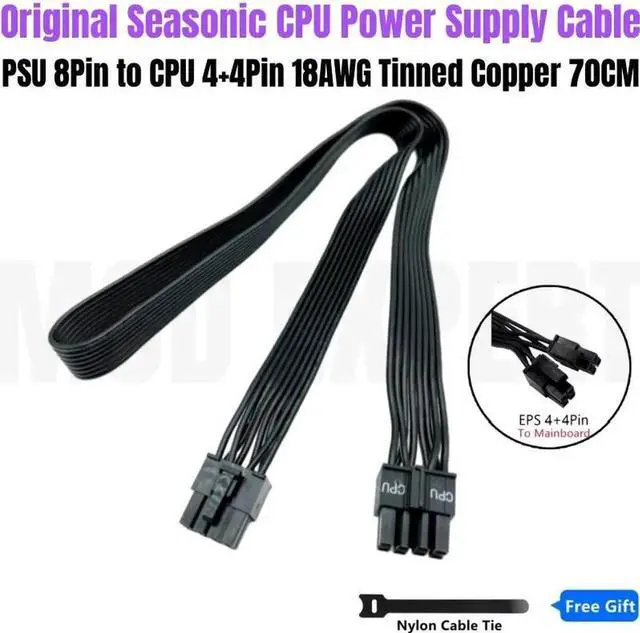

Interface: PSU 8Pin to CPU 4+4Pin

Gauge: Original Quality, made of UL1007 standard 18AWG tinned copper wire.

Features: Flexible and easy to bend, keeping cables in a good management. Excellent durability, high temperature resistance, support high currents in order to achieve superior performance.

How to Connect:

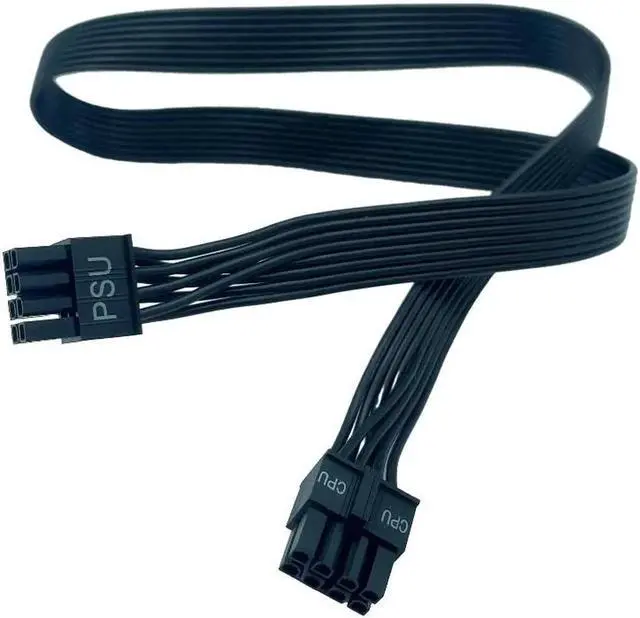

PSU 8Pin male end to plug into the power connector of power supply

(NOTE: 8 pin male connector is ATX 8 pin, not pci-e 8 pin. )

EPS 8Pin (4+4Pin) male end to plug into the Motherboard.

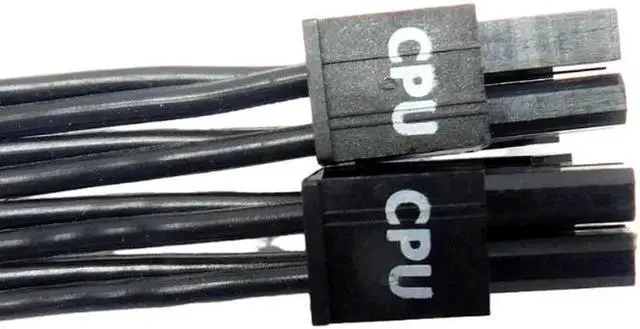

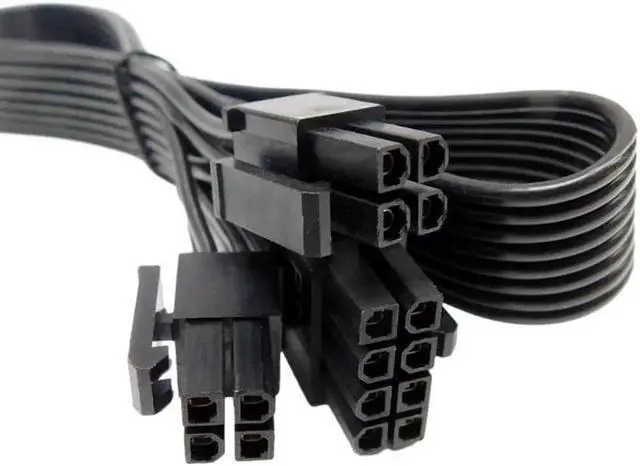

(NOTE: Detachable EPS 8Pin(4+4Pin) could be used as EPS ATX 8Pin or P4 ATX 4Pin by sliding on/off the 4Pin. )

The cable does not work with GPU graphics card. PSU 8Pin and EPS 4+4Pin male cannot be used interchangeably!

Packing list: 1x Seasonic Original Single CPU Power Supply Cable, 1x free gift nylon cable tie.

Compatiblity: Support Seasonic X-Series GOLD Modular PSU Below:

X-650, SS-650KM3 Activie PFC F3, KM3 platform (Not Support SS-650KM, model without number 3! )

X-750, SS-750KM3 Activie PFC F3, KM3 platform (Not Support SS-750KM, model without number 3! )

X-850, SS-850KM3 Activie PFC F3, KM3 platform (Not Support SS-850KM, model without number 3! )

X-1050, SS-1050XM2 Activie PFC F3, XM2 platform (Not Support SS-1050KM, model without number 2! )

X-1250, SS-1250XM2 Activie PFC F3, XM2 platform (Not Support SS-1250KM, model without number 2! )

Warning!!! NOT for other brands and models! Also Not for some Seasonic old version

PSUs Below:

X Series: SS-650KMSS-750KMSS-560KMSS-660KMSS-760KMSS-850KMSS-1050XMSS-1250XM

P Series: SS-1000XPSS-860XP

FL Series: SS-400FLSS-460FL

If your power supply model is not mentioned, please check compatibility with us!
