$112.79
Ships from China.
Meet Your Seller
R800C GSM/GPRS HAT for Raspberry Pi Series & Jetson Nano, Support 2G Communication, Phone Call & SMS
- Supports SMS, phone call, GPRS, TCP/IP, DTMF, HTTP, FTPl, etc.
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards and Jetson Nano
- UART interface, for connecting controller boards like Ardui/STM32
- Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
+
+
Overview
Specs
Reviews
Features

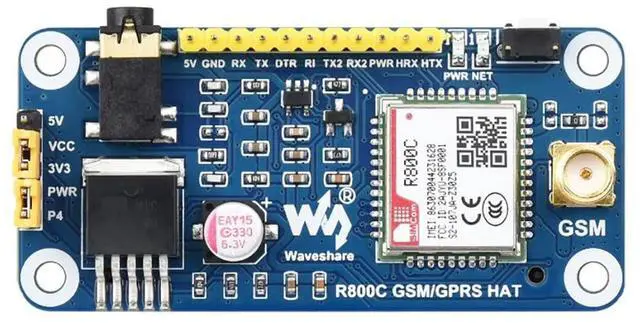

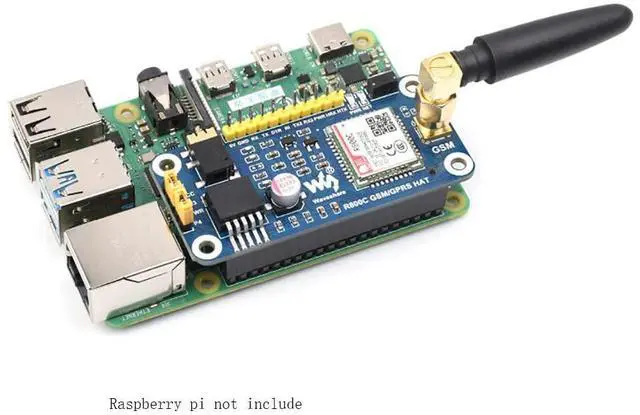

The R800C GSM/GPRS HAT is a handy, low power Raspberry Pi HAT which features multi-communication functionalities: GSM, GPRS, and phone call,
applicable to countries or regions with 2G network coverage, up to 85.6 kbps GPRS speed. It allows your Pi to easily make a telephone call, send messages,
connect to wireless Internet, and so on.
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards and Jetson Nano
Supports SMS, phone call, GPRS, TCP/IP, DTMF, HTTP, FTPl, etc.
UART interface, for connecting controller boards like Arduino/STM32
Onboard voltage translator, 3.3V by default, switch to 5V via jumper
2x LED indicators, easy to monitor the working status

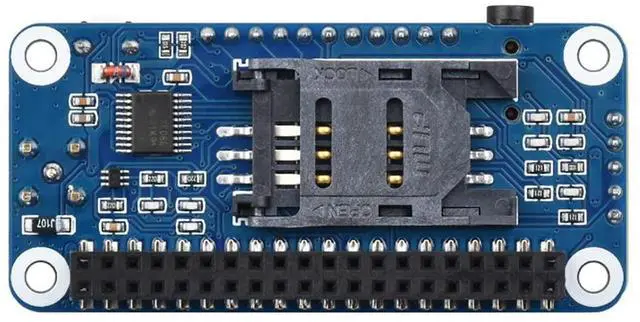

SIM card slot, supports 1.8V /3V SIM card
Baudrate: 2400bps ~ 115200bps (115200bps by default)
Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
Supports SIM application toolkit: GSM 11.14 Release 99
Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Ardui/STM32)

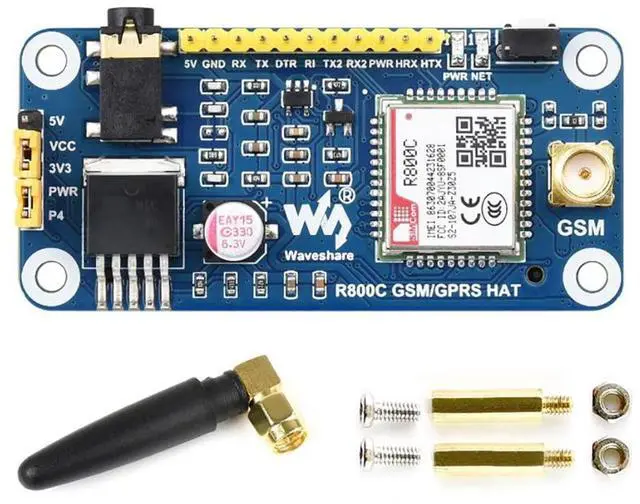

Package include
1. R800C GSM/GPRS HAT x1
2. GSM Antenna x1
3. RPi screws pack (2pcs) x1
Resources available:
https: //www. waveshare. com/wiki/R800C_GSM/GPRS_HAT
The R800C GSM/GPRS HAT is a handy, low power Raspberry Pi HAT which features multi-communication functionalities: GSM, GPRS, and phone call,
applicable to countries or regions with 2G network coverage, up to 85.6 kbps GPRS speed. It allows your Pi to easily make a telephone call, send messages,
connect to wireless Internet, and so on.
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards and Jetson Nano
Supports SMS, phone call, GPRS, TCP/IP, DTMF, HTTP, FTPl, etc.
UART interface, for connecting controller boards like Arduino/STM32
Onboard voltage translator, 3.3V by default, switch to 5V via jumper
2x LED indicators, easy to monitor the working status
SIM card slot, supports 1.8V /3V SIM card
Baudrate: 2400bps ~ 115200bps (115200bps by default)
Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
Supports SIM application toolkit: GSM 11.14 Release 99
Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Ardui/STM32)
Package include
1. R800C GSM/GPRS HAT x1
2. GSM Antenna x1
3. RPi screws pack (2pcs) x1
Resources available:
https: //www. waveshare. com/wiki/R800C_GSM/GPRS_HAT
