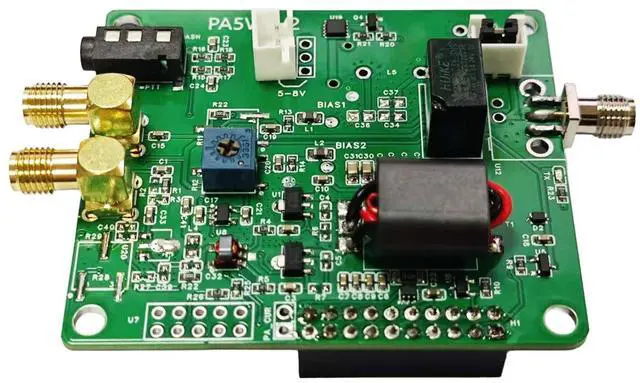

AURSINC Radioberry Preamp Board V2, A Addition to Turn The Radioberry into a Small QRP Radio, HF Power Output 3W-5W for HF Amplification (10W-100W PA), for Raspberry pi 4,4b

New Version V2: The output power of the amplifier board V2 is slightly higher than that of the previous version, with V2 reaching 35W. Technical Specs: Power in 6-8V (8.4V preferred); HF Power in: Tx from radioberry; HF Power out: 3-5W for for HF amplification. RF range: 1mhz-50mhz. Port Type: Input SMA, Output SMA. Supports SSB, FM, and AM
Designed for Radioberry SDR: This radioberry preamp board V2 is a nice addition to turn the radioberry into a small QRP radio. Seamless compatibility with Radioberry boards, making it a clean plug-and-play-style expansion, increased capability for your Radioberry
Amp board integrates with RPi 4: Pairs with Pi 4/4B for those building a Raspberry Pi-based QRP SDR radio, combining digital signal processing and radio functionality in a small form factor

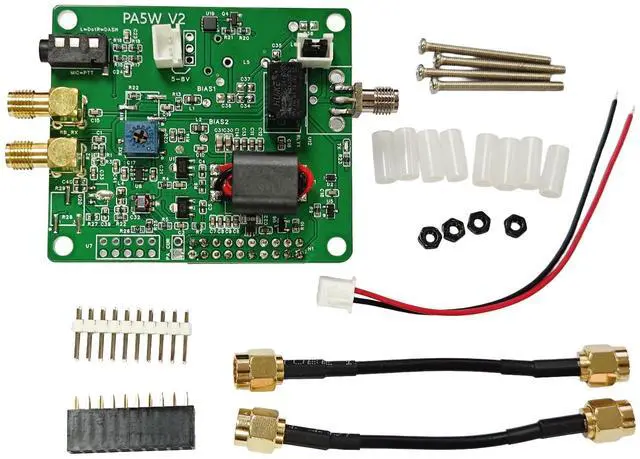

What's Inside: 1x Radioberry Preamp Board; 3x SMA cable (1 for Rx ,1 for Tx,1 for ANT); 1x 8V Battery-powered Wire; 1x Connecting Row Needle; 4x Screw and Nut; 8x Plastic Column. Comp
