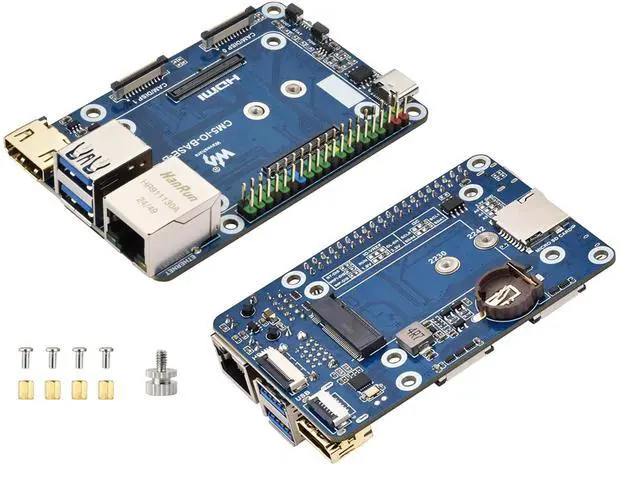

Main image of Mini Base Board Compatible with Raspberry Pi Compute Module 5 Lite/eMMC Series, with Color-Coded 40PIN GPIO/M.2 M Key PCIe/MIPI/HDMI 4K/Gigabit ETH Interfaces,etc. Onboard EEPROM and Encryption Chip

Alt view image 2 of 5 - Mini Base Board Compatible with Raspberry Pi Compute Module 5 Lite/eMMC Series, with Color-Coded 40PIN GPIO/M.2 M Key PCIe/MIPI/HDMI 4K/Gigabit ETH Interfaces,etc. Onboard EEPROM and Encryption Chip

Alt view image 3 of 5 - Mini Base Board Compatible with Raspberry Pi Compute Module 5 Lite/eMMC Series, with Color-Coded 40PIN GPIO/M.2 M Key PCIe/MIPI/HDMI 4K/Gigabit ETH Interfaces,etc. Onboard EEPROM and Encryption Chip

Alt view image 4 of 5 - Mini Base Board Compatible with Raspberry Pi Compute Module 5 Lite/eMMC Series, with Color-Coded 40PIN GPIO/M.2 M Key PCIe/MIPI/HDMI 4K/Gigabit ETH Interfaces,etc. Onboard EEPROM and Encryption Chip

Alt view image 5 of 5 - Mini Base Board Compatible with Raspberry Pi Compute Module 5 Lite/eMMC Series, with Color-Coded 40PIN GPIO/M.2 M Key PCIe/MIPI/HDMI 4K/Gigabit ETH Interfaces,etc. Onboard EEPROM and Encryption Chip

Shop All Barrow Mods Products | Visit BRIGHTOR Store

Mini Base Board Compatible with Raspberry Pi Compute Module 5 Lite/eMMC Series, with Color-Coded 40PIN GPIO/M.2 M Key PCIe/MIPI/HDMI 4K/Gigabit ETH Interfaces,etc. Onboard EEPROM and Encryption Chip

Version Comparison: This is CM5-IO-BASE-B Version. It features EEPROM and encryption chip and M.2 M KEY PCIe, which is different from CM5-IO-BASE-A Version.

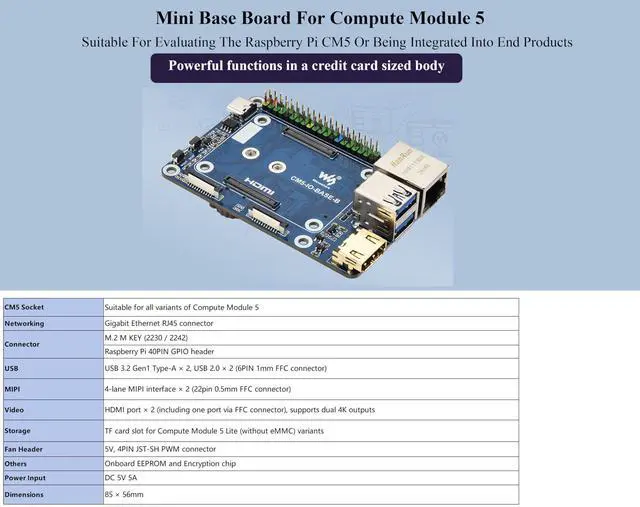

for all variants of Compute Module 5: with standard CM5 socket and color-coded RPi 40PIN GPIO header, compatible with Compute Module 5 Lite/eMMC Series. Suitable for evaluating CM5 or being integrated into end products.

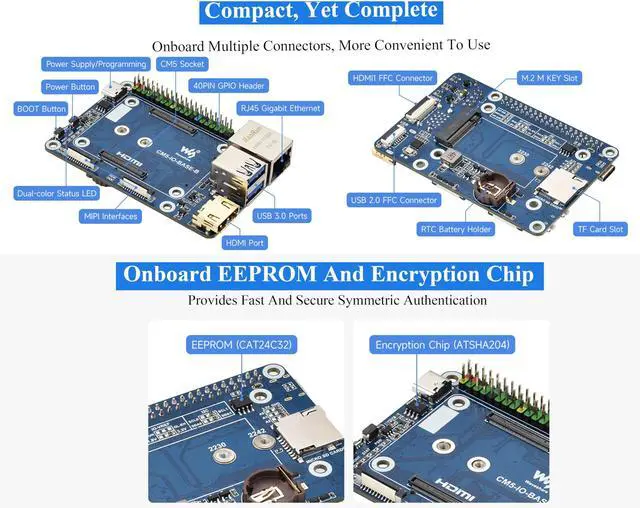

Onboard Multiple Connectors: Including M.2 M KEY (2230 / 2242) PCIe/ Dual MIPI/Dual HDMI/USB 3.2/USB 2.0 FFC/ RJ45 Gigabit Ethernet Interface, etc. More convenient to use.

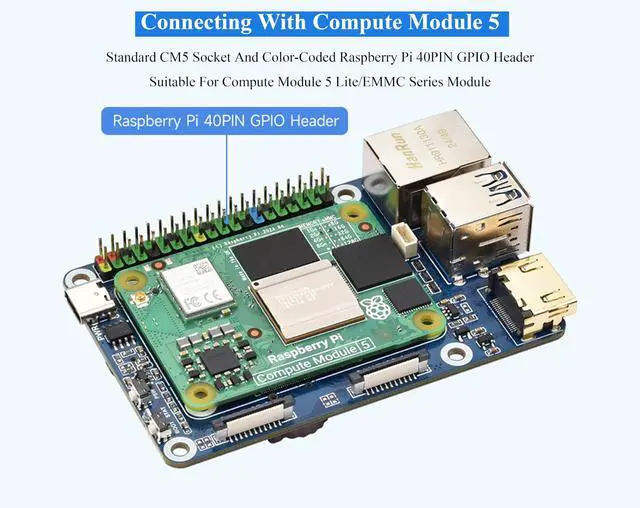

GPIO and PCIe Connector: Equipped with Color-Coded 40PIN GPIO header, for connecting various HAT / HAT+ modules. And it equips with M.2 M KEY, which supports 2230/2242 NVMe Solid State Drives and booting Pi5 from solid state drive.

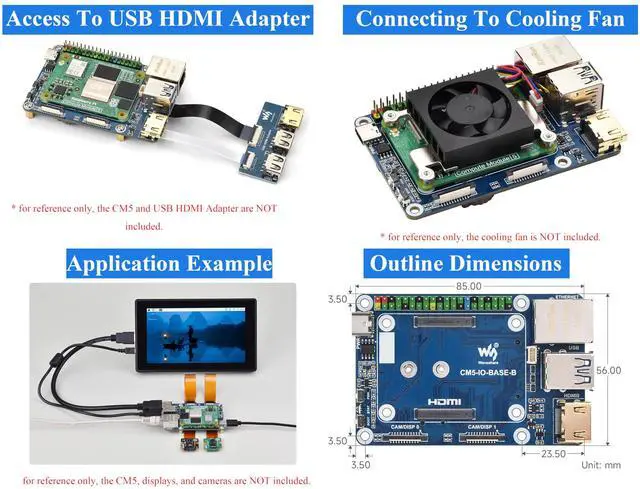

4K Video Output and Dual HDMI Port: One is HDMI0 port, supports 4K output. The other is HDMI1 FFC connector, supports 4K output too, which can be connected through an adapter.
Rich USB Interface
