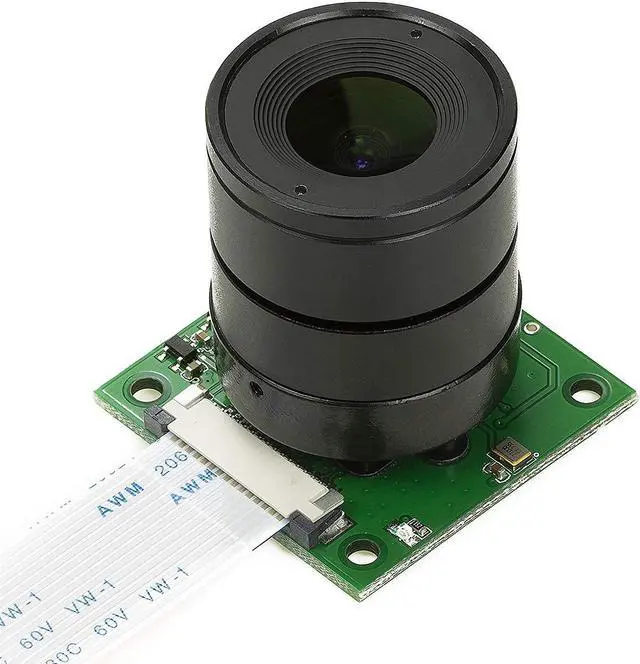

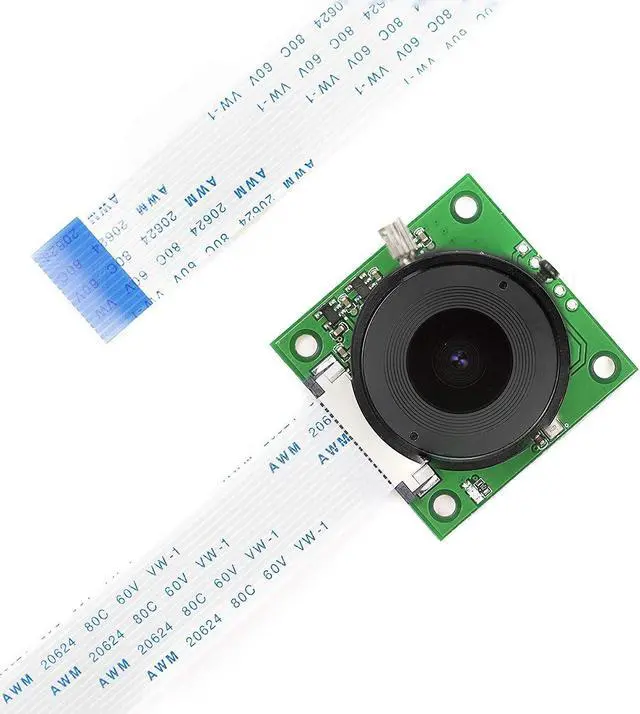

Arducam for Raspberry Pi 5 Camera Module with Interchangeable CS Mount Lens for Pi 5, 4, 3, 3B+, 5MP OV5647 1080P
- An Improvement of Standard Pi Camera: With the CS mount lens, you can get a bit more clarity, focus, and the ability to change the lens, will fit many lenses with this mount type, telephoto, fish-eye, or other M12 lenses.
- Works Flawlessly: The camera can be installed on the Rasparian OS as a Pi camera and the raspistill and raspivid terminal programs, does not have any conflicts with the Rasparian OS.
- Sensor: OV5647; Still Picture Resolution: 2592 x 1944; Frame Rate: 30fps@1080p; Integral IR filter, for NoIR CS Mount version, check ASIN: B013JV4Z7K
- Application: Recommended to the inventor, maker, hobbyist, engineer, someone want to get better quality for both still and video or want to change the lens, for the home security system, monitoring Octoprint 3D printer, etc.
- Customization Service: please contact Arducam if you want to 8MP pi camera modules with CS mount lens.
+
+
Overview
Specs
Reviews
The ArduCAM team now released a revision C add-on camera module which is fully compatible with official Raspberry Pi board.
It optimizes the optical performance than the previous Pi cameras, and give user a much clear and sharp image.

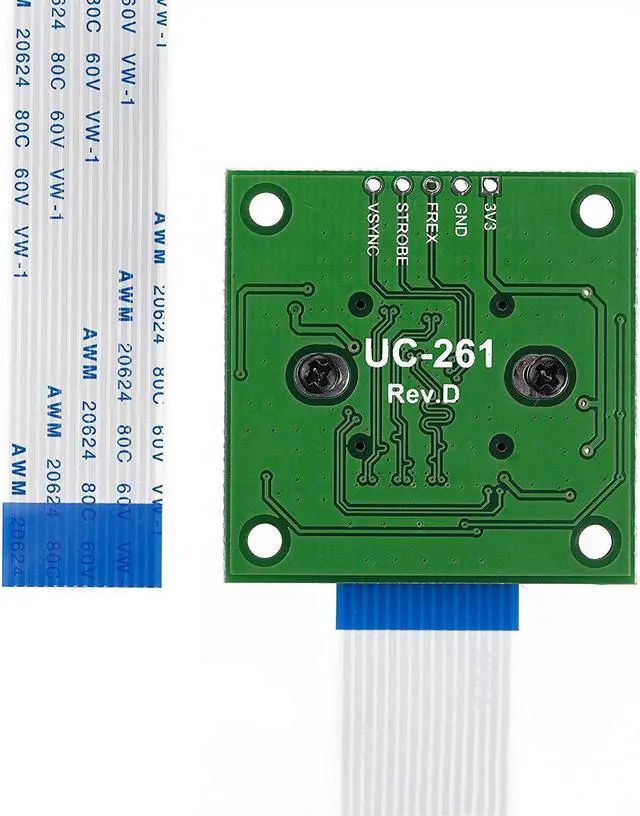

Also it provides the FREX and STROBE signals which can be used for multi-camera synchronize capture with proper camera driver firmware.
It attaches to Raspberry Pi by way of one of the two small sockets on the board upper surface.
This interface uses the dedicated CSI interface, which was designed especially for interfacing to cameras.
The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data.
The camera is supported in the latest version of Raspbian, Raspberry Pi's preferred operating system.
The board itself is tiny, at around 36mm x 36mm.
It connects to Raspberry Pi by way of a short ribbon cable.
The camera is connected to the BCM2835/BCM2836 processor on the Pi via the CSI bus, a higher bandwidth link which carries pixel data from the camera back to the processor.
Feature:

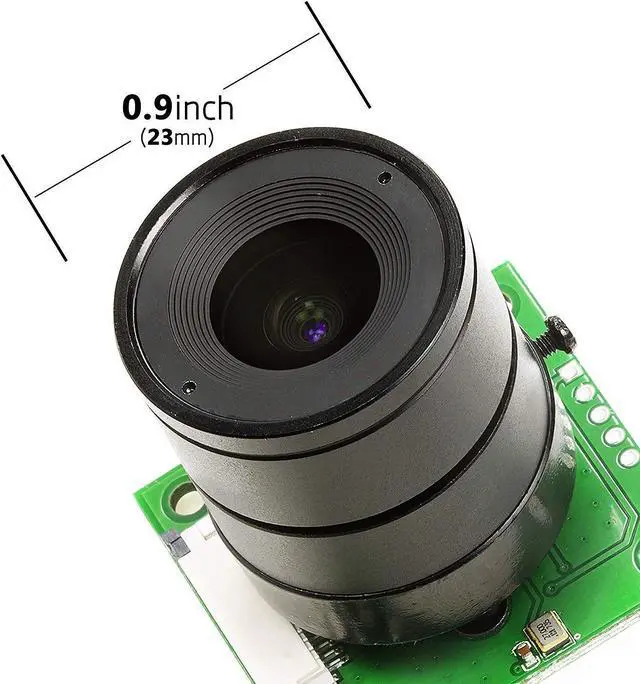

Lens holder: CS mount
Max frame rate: 30fps
Integral IR filter

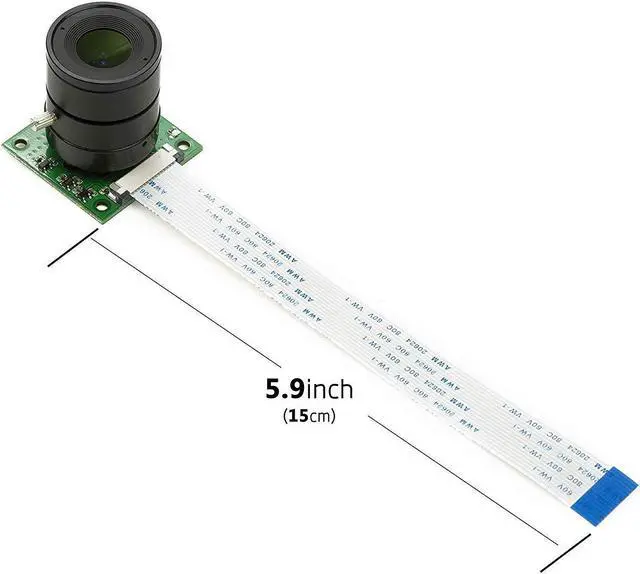

15 cm flat ribbon cable to 15-pin MIPI Camera Serial Interface (CSI) connector
The Camera Lens for Raspberry Pi Camera Board is LS-2716CS
Packing included:
1pcs Camera Board /w CS mount Lens(LS-2716CS) fully compatible with official Raspberry Pi Camera board
1pcs 15cm 15pin FPC cable
NOTE: Raspberry Pi not included
It optimizes the optical performance than the previous Pi cameras, and give user a much clear and sharp image.
Also it provides the FREX and STROBE signals which can be used for multi-camera synchronize capture with proper camera driver firmware.
It attaches to Raspberry Pi by way of one of the two small sockets on the board upper surface.
This interface uses the dedicated CSI interface, which was designed especially for interfacing to cameras.
The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data.
The camera is supported in the latest version of Raspbian, Raspberry Pi's preferred operating system.
The board itself is tiny, at around 36mm x 36mm.
It connects to Raspberry Pi by way of a short ribbon cable.
The camera is connected to the BCM2835/BCM2836 processor on the Pi via the CSI bus, a higher bandwidth link which carries pixel data from the camera back to the processor.
Feature:
Lens holder: CS mount
Max frame rate: 30fps
Integral IR filter
15 cm flat ribbon cable to 15-pin MIPI Camera Serial Interface (CSI) connector
The Camera Lens for Raspberry Pi Camera Board is LS-2716CS
Packing included:
1pcs Camera Board /w CS mount Lens(LS-2716CS) fully compatible with official Raspberry Pi Camera board
1pcs 15cm 15pin FPC cable
NOTE: Raspberry Pi not included
