$182.99
Ships from China.
Meet Your Seller

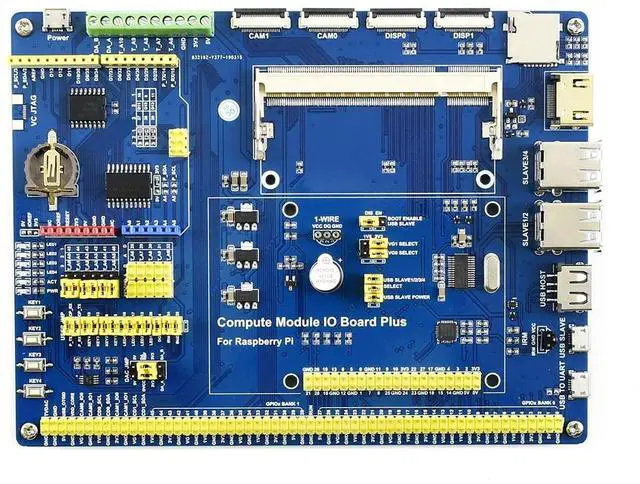

Waveshare Compute Module IO Board Plus Development Composite Breakout Board for Developing with Raspberry Pi CM4S/CM3 CM3L Various Common Use Components

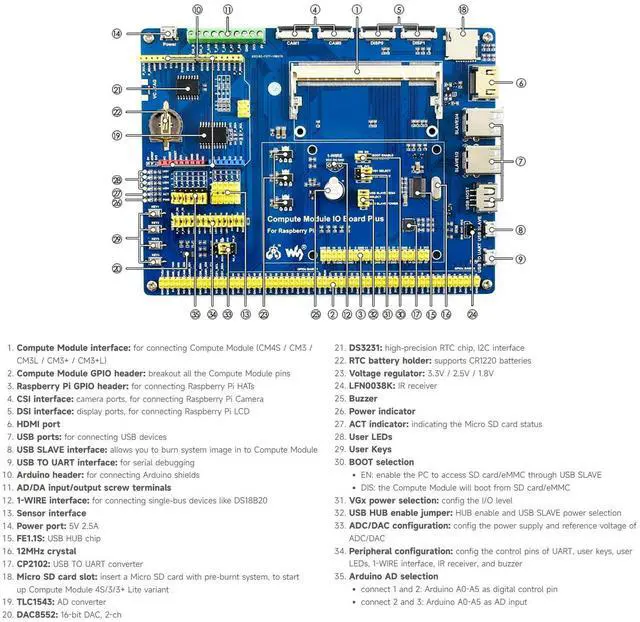

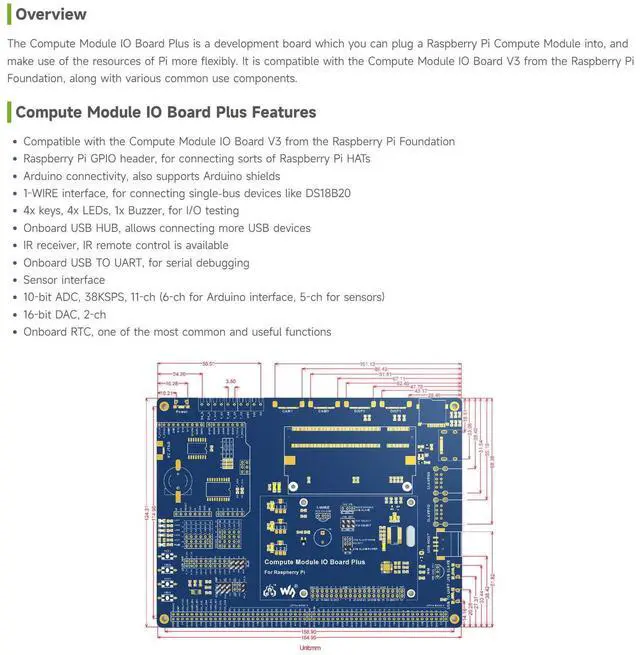

- The Compute Module IO Board Plus is a development board which you can plug a Raspberry Pi Compute Module into, and make use of the resources of Pi more flexibly. It is compatible with the Compute Module IO Board V3 from the Raspberry Pi Foundation, along with various common use components.
- Compatible with the Compute Module IO Board V3 from the Raspberry Pi Foundation Raspberry Pi GPIO header, for connecting sorts of Raspberry Pi HATs
- connectivity, also supports shields 1-WIRE interface, for connecting single-bus devices like DS18B20 4x keys, 4x LEDs, 1x Buzzer, for I/O testing
- Onboard USB HUB, allows connecting more USB devices IR receiver, IR remote control is available Onboard USB TO UART, for serial debugging Sensor interface
- 10-bit ADC, 38KSPS, 11-ch (6-ch for interface, 5-ch for sensors) 16-bit DAC, 2-ch Onboard RTC, one of the most common and useful functions
+
+
Overview
Specs
Reviews
Waveshare Compute Module IO Board Plus Development Composite Breakout Board for Developing with Raspberry Pi CM4S/CM3 CM3L Various Common Use Components
