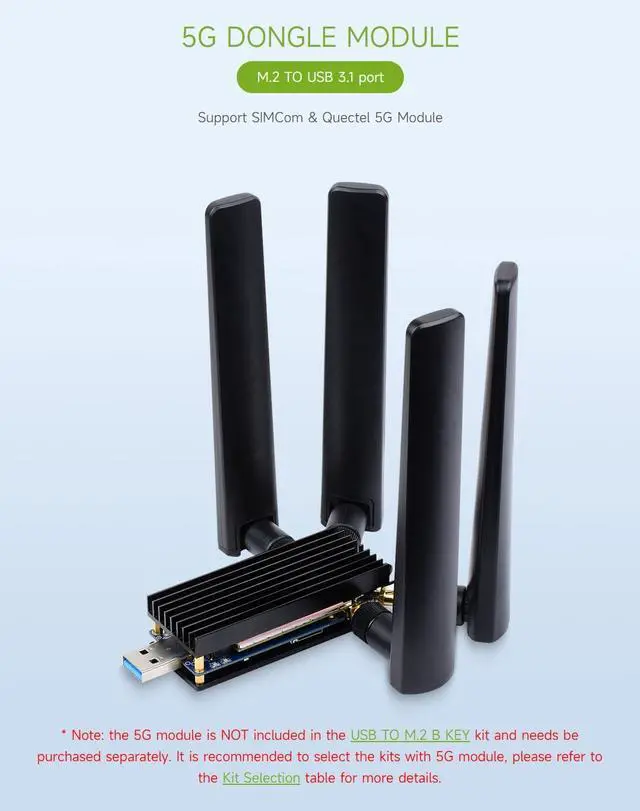

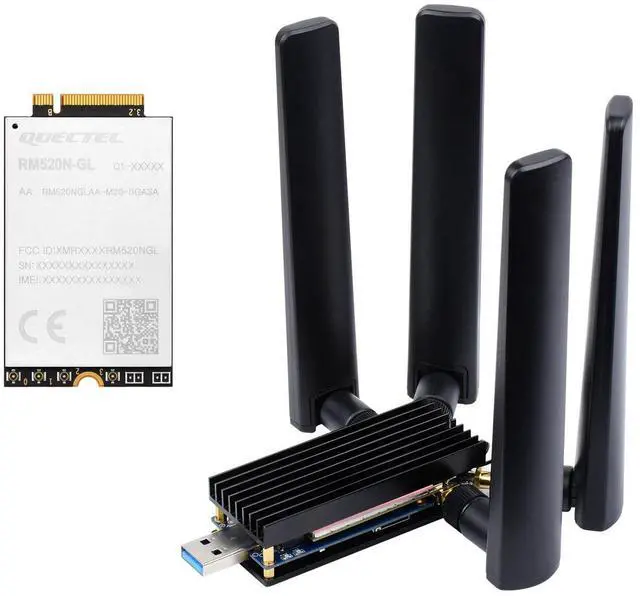

Waveshare RM520N-GL 5G DONGLE Module, Quad Antennas, USB3.1 Port, Aluminum Alloy Heatsink, M.2 Key B Interface, Options for 5G Module

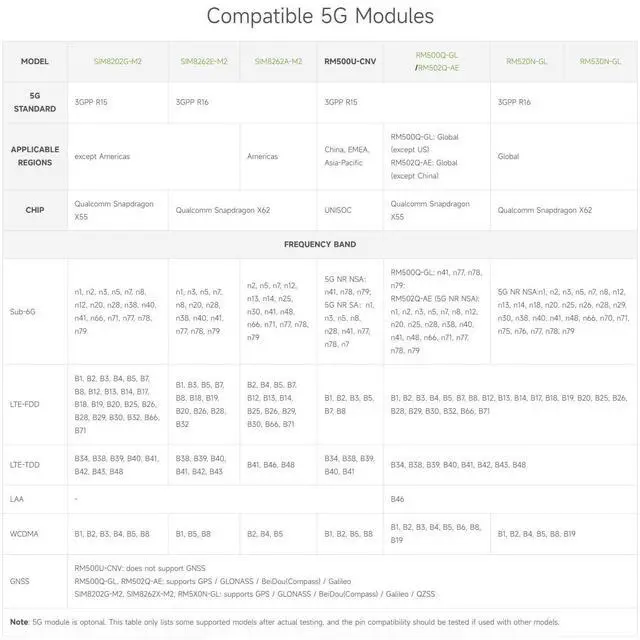

- RM520N-GL 5G DONGLE. Support 5G modules with M.2 (NGFF) Key B interface, compatible with SIMCom, Quectel, and Fibocom 5G modules
- Support 5G modules with 3042/3052 form factor, such as SIM82XX, and RM50XQ series 5G modules
- USB 3.1 Type A port for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 5G network. 4x SMA antenna connectors, easy to install the antenna
- Onboard SIM card slot for NANO SIM card. Onboard power and network indicators, with multiple reserved pads, for checking module operating status and testing other functions
- PCB ENIG process, reserved multi slots and positioning holes for integration. Comes with customized aluminum alloy heatsink, good heat dissipation, nice-looking, protective and durable
+
+
