$104.59
Ships from China.
Meet Your Seller

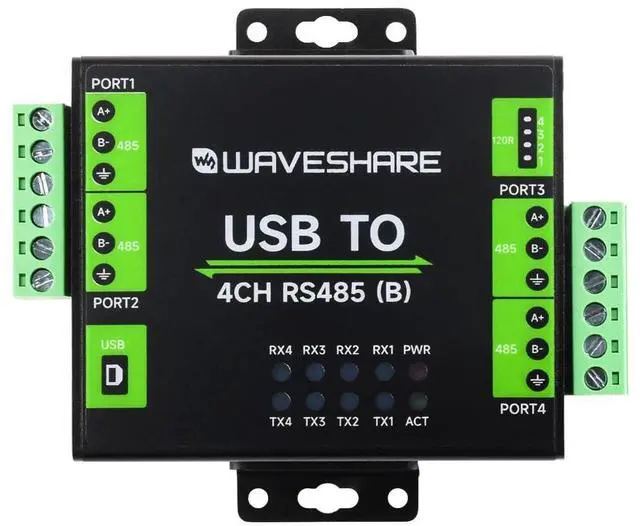

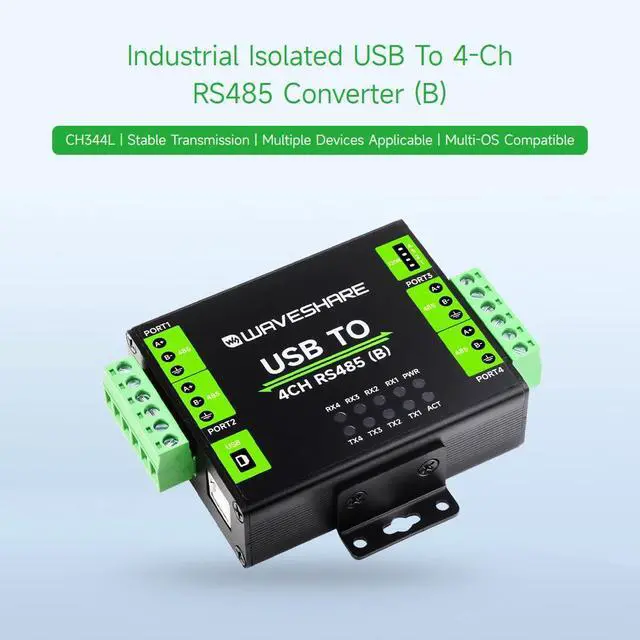

Waveshare Industrial Isolated USB to 4-Ch RS485 Converter (B), CH344L Chip, Multi Protection Circuits, Multi Systems Support, Aluminium Alloy Case, Wall-Mount & Rail-Mount Support

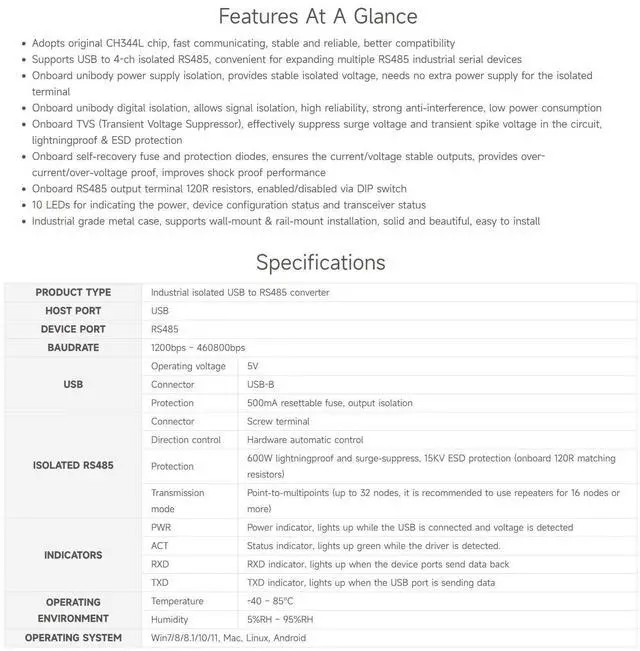

- Adopts original CH344L chip, fast communicating, stable and reliable, better compatibility
- Supports USB to 4-ch isolated RS485, convenient for expanding multiple RS485 industrial serial devices

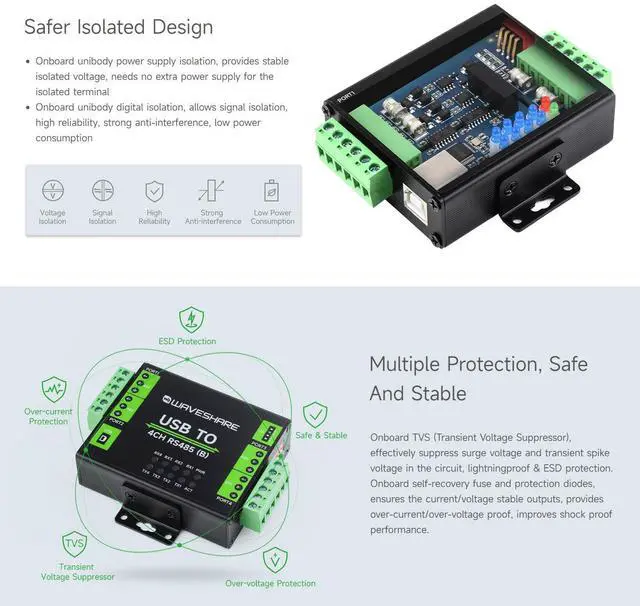

- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
- Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
- Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
- Onboard RS485 output terminal 120R resistors, enabled/disabled via DIP switch
- 10 LEDs for indicating the power, device configuration status and transceiver status
- Industrial grade metal case, su
+
+
Overview
Specs
Reviews
Waveshare Industrial Isolated USB to 4-Ch RS485 Converter (B), CH344L Chip, Multi Protection Circuits, Multi Systems Support, Aluminium Alloy Case, Wall-Mount & Rail-Mount Support
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by LMSshop Return Policy
Manufacturer Contact Info
- For a directory of all our manufacturers, please click below.
- Manufacturers Directory
