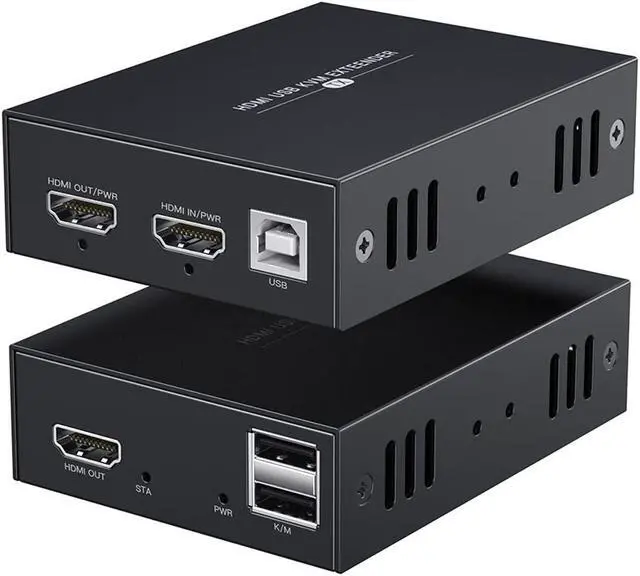

HDMI KVM USB Extender 1080P Over Cat5e/6 Ethernet Cable 50m (164ft) for Mouse and Keyboard Control Remote Signals
Limited time offer, ends 04/08 By PRIX Tech
- TRANSMIT AUDIO/VIDEO LOSSLESSLY : Send HDMI signal to remote monitor as smooth as direct connection. Support 1080P FHD and 3D video, compliant with HDMI 1.3.
- HDMI OVER ETHERNET : Transmit up to 50m/164ft by Cat6/7 cable, 40m/130ft by Cat5e cable. For better audio&video quality and longer transmission distance, we recommend Cat6 or Cat7.
- SIMPLER CONNECTION : Power over cable, only one power adapter is needed to get the device running completely.
- USB&KVM: On the receiver side, can connect the mouse and keyboard to control the remote computer on the transmitter side.
- APPLICATION : Stable signal connection scheme. Suitable for home security system, camera monitoring, conference hall broadcasting, restaurant projection and more
+
+
Overview
Specs
Reviews
HDMI EXTENDER WITH KVM

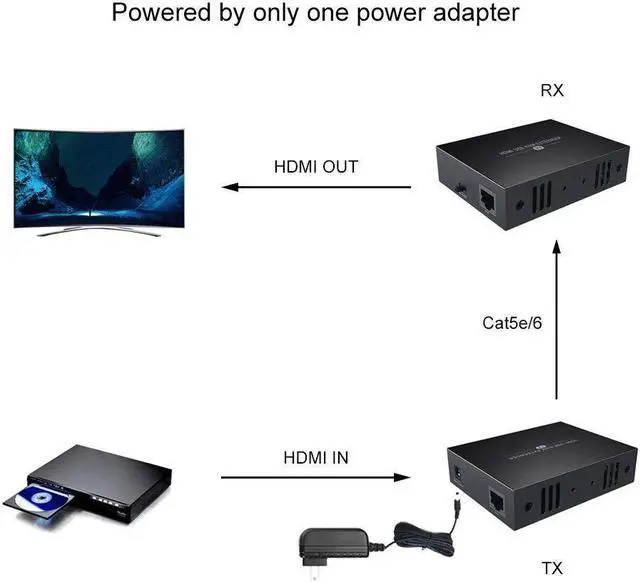

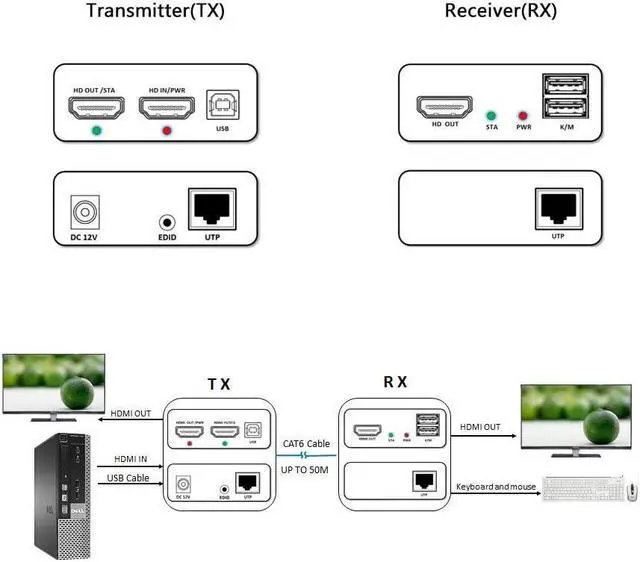

Change the mode of audio and video signals for longer distance transmission, HDMI IN --- CAT X --- HDMI OUT.
1. Video
* Standards---HDMI 1.3
* Maximum pixel clock---165MHz
* Maximum data rate--- 6.75G bps
* Resolution---1920X1080@60Hz
* Connector---HDMI-A
* Impedance---100O
2. Ethernet
* Interface---RJ45
* Transmission distance---CAT6---50m/164ft; CAT5E---40m/130ft; CAT5-30m/100ft
3. USB
* Interface protocol---USB 1.1
* Interface type --- PC: USB-B; KVM: USB-A
* Signal type --- Digital signal
4. Others
* Power supply--- Input: 110~220V; Output: 12V/1A
* Power dissipation---MAX 3W
* Temperature---Operating: -5 ~ +70
* Humidity---Operating: 5% ~ 90%
* Dimension---94*71*26 mm
5. Packing list
* HDMI transmitter---1 pcs
* HDMI receiver---1 pcs
* USB-B Cable---1 pcs
* Power adapter---1 pcs
* User manual---1 pcs
Change the mode of audio and video signals for longer distance transmission, HDMI IN --- CAT X --- HDMI OUT.
Specifications
:1. Video
* Standards---HDMI 1.3
* Maximum pixel clock---165MHz
* Maximum data rate--- 6.75G bps
* Resolution---1920X1080@60Hz
* Connector---HDMI-A
* Impedance---100O
2. Ethernet
* Interface---RJ45
* Transmission distance---CAT6---50m/164ft; CAT5E---40m/130ft; CAT5-30m/100ft
3. USB
* Interface protocol---USB 1.1
* Interface type --- PC: USB-B; KVM: USB-A
* Signal type --- Digital signal
4. Others
* Power supply--- Input: 110~220V; Output: 12V/1A
* Power dissipation---MAX 3W
* Temperature---Operating: -5 ~ +70
* Humidity---Operating: 5% ~ 90%
* Dimension---94*71*26 mm
5. Packing list
* HDMI transmitter---1 pcs
* HDMI receiver---1 pcs
* USB-B Cable---1 pcs
* Power adapter---1 pcs
* User manual---1 pcs
