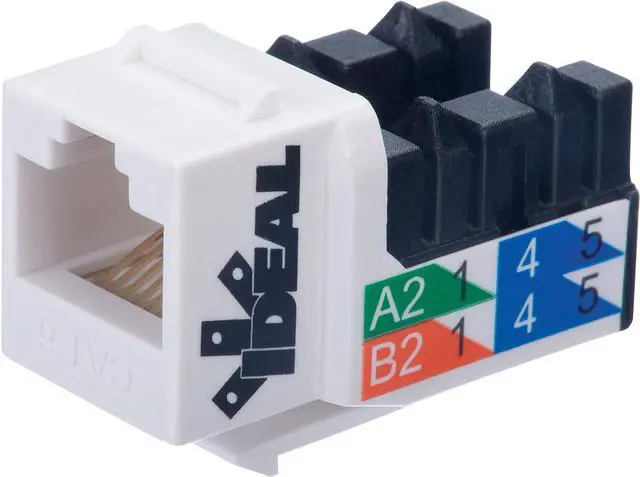

IDEAL Industries, Inc. 89-761WH CAT6 Keystone Modular Jacks, White, 10 Modular Jack Connectors for CAT6 22-24 AWG Conductors
- IDEAL KEYSTONE JACKS: Each modular jack connector is designed to exceed the CAT6 requirements of ANSI/TIA-568-C.2. These connectors are ideal for residential and commercial installations for applications such as Gigabit Ethernet.
- DESIGN: The robust circuit board design of modular jacks help to reduce NEXT (near-end cross talk) and improve RF performance at higher frequencies. The IDC tower design and printed layout simplify and speed up the wiring and termination process.

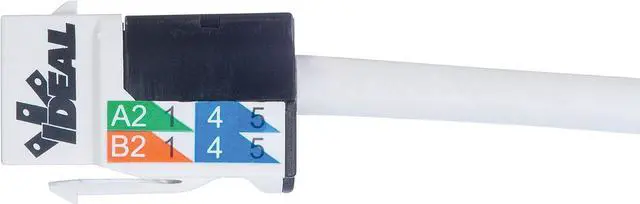

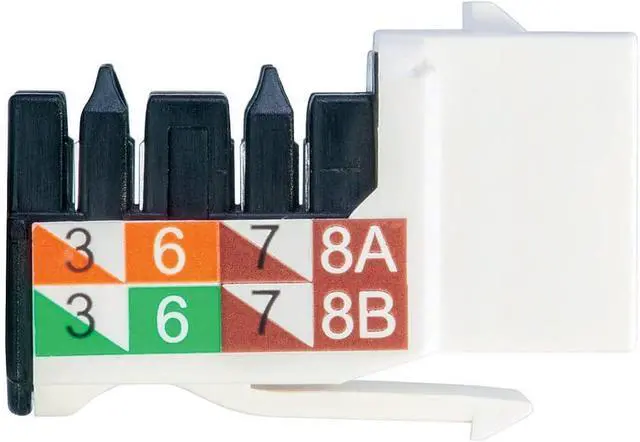

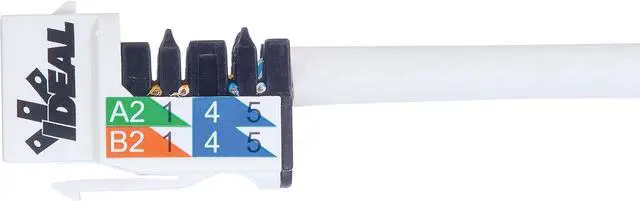

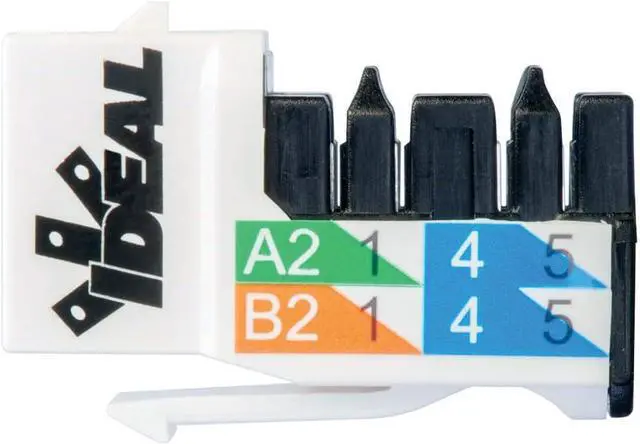

- SIMPLER TERMINATION: Tapered tower tops of posts help to separate each pair into individual IDC slot with no need to untwist. PCB design allows side by side termination and is compatible with most keystone style sized panels, racks, and plates.
- EASY TO USE: CAT6 Keystone Jacks are UL Listed and the connector features a 50-micron gold plating contact area for durability & consistent connectivity after repeated insertions. Internal printed circuit board design offers improved RF performance at 250MHz.
- PRODUCT S
+
+
Overview
Specs
Reviews
IDEAL KEYSTONE JACKS: Each modular jack connector is designed to exceed the CAT6 requirements of ANSI/TIA-568-C.2. These connectors are ideal for residential and commercial installations for applications such as Gigabit Ethernet.
DESIGN: The robust circuit board design of modular jacks help to reduce NEXT (near-end cross talk) and improve RF performance at higher frequencies. The IDC tower design and printed layout simplify and speed up the wiring and termination process.
SIMPLER TERMINATION: Tapered tower tops of posts help to separate each pair into individual IDC slot with no need to untwist. PCB design allows side by side termination and is compatible with most keystone style sized panels, racks, and plates.
EASY TO USE: CAT6 Keystone Jacks are UL Listed and the connector features a 50-micron gold plating contact area for durability & consistent connectivity after repeated insertions. Internal printed circuit board design offers improved RF performance at 250MHz.

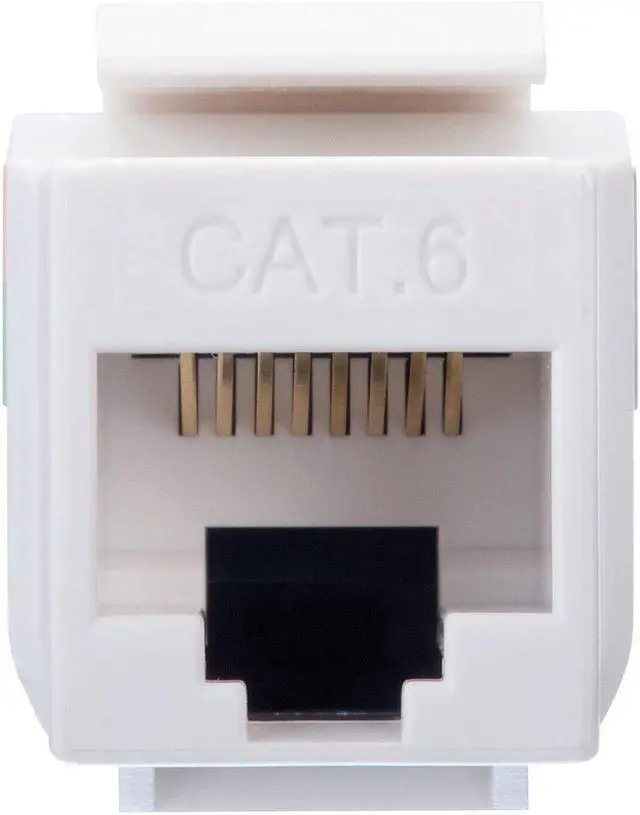

PRODUCT SPECIFICATIONS: Keystone Modular Jacks for CAT6 have an industry standard (14.5mm x 16mm) profile interface and latch location to work with keystone sized openings. Each pack contains 10 connectors.
DESIGN: The robust circuit board design of modular jacks help to reduce NEXT (near-end cross talk) and improve RF performance at higher frequencies. The IDC tower design and printed layout simplify and speed up the wiring and termination process.
SIMPLER TERMINATION: Tapered tower tops of posts help to separate each pair into individual IDC slot with no need to untwist. PCB design allows side by side termination and is compatible with most keystone style sized panels, racks, and plates.
EASY TO USE: CAT6 Keystone Jacks are UL Listed and the connector features a 50-micron gold plating contact area for durability & consistent connectivity after repeated insertions. Internal printed circuit board design offers improved RF performance at 250MHz.
PRODUCT SPECIFICATIONS: Keystone Modular Jacks for CAT6 have an industry standard (14.5mm x 16mm) profile interface and latch location to work with keystone sized openings. Each pack contains 10 connectors.
