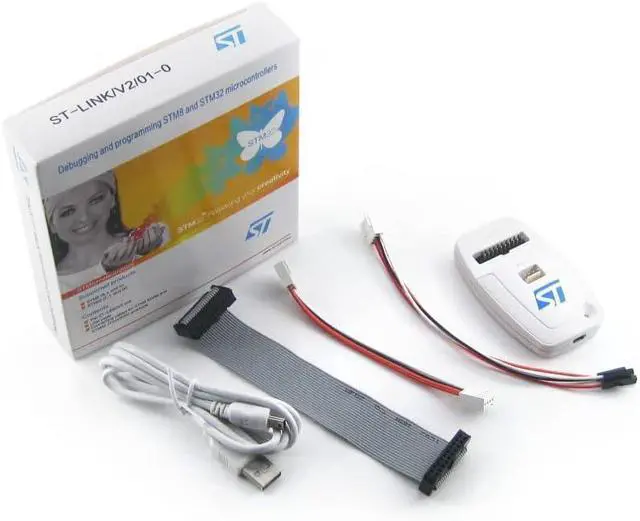

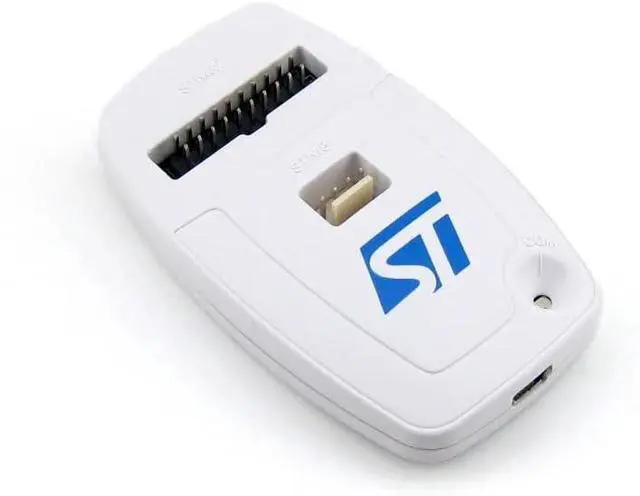

SETCTOP MCU Microcontroller STM8 STM32 JTAG SWD Swim in-Circuit Debugger Programmer Emulator

Debugger V2 is a development tool that can simulate online and download STM8 and STM32!Debugger is a development tool that integrates online simulation and download for ST's STMicroelectronics to evaluate and develop STM8 and STM32 series MCUs.STM8 series is connected to Debugger through SWIM interface; STM32 series is connected to Debugger through JTAG / SWD interface.Debugger is connected to PC via high-speed USB2.0.
Supported software Direct support for official IDE (Integrated Development Environment Software) Visual Develop (STVD) and programming software Visual Program (STVP). Support ATOLLIC, IAR, Keil, TASKING and other STM32 integrated development environmentsSupported devices.Supports all STM8 series microcontrollers with SWIM interface Supports all STM32 series microcontrollers with JTAG / SWD interface.Programming function: Flash ROM, EEPROM, AFR, etc. can be programmed.
Simulation function: support various debugging methods such as full-speed operation, single-step debugging, breakpoint debugging, etc ,you can view the IO status, variable data and so on.,Simulation performance: USB2.0 interface for simulation debugging, single-step debugging, breakpoint debugging, fast response speed! Programming performance: USB2.0 interface for SWIM / JTAG / SWD download, fast download speed!

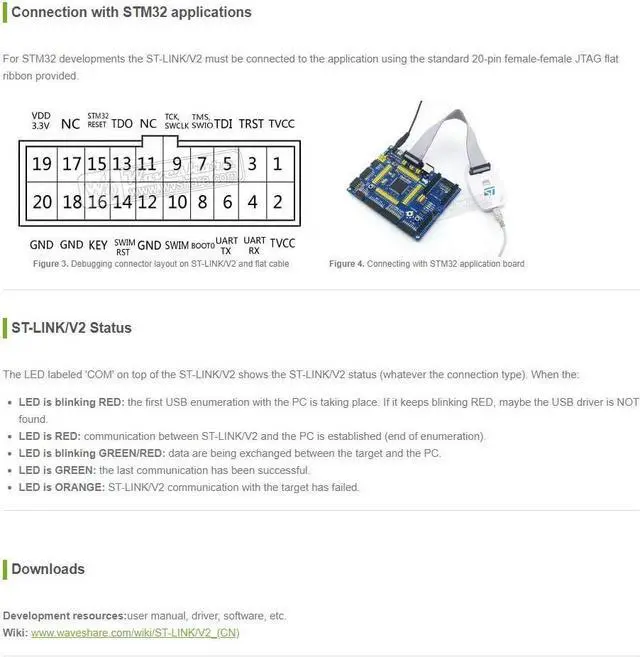

Debugger LED status description: Flashing red: After the Debugger is connected to the computer, the first USB enumeration process · Red: Debugger has established a connection with the computer · Blinking green / red: target board and computer are exchanging data · Green: Communication is complete · Orange (red + green): communication failed
