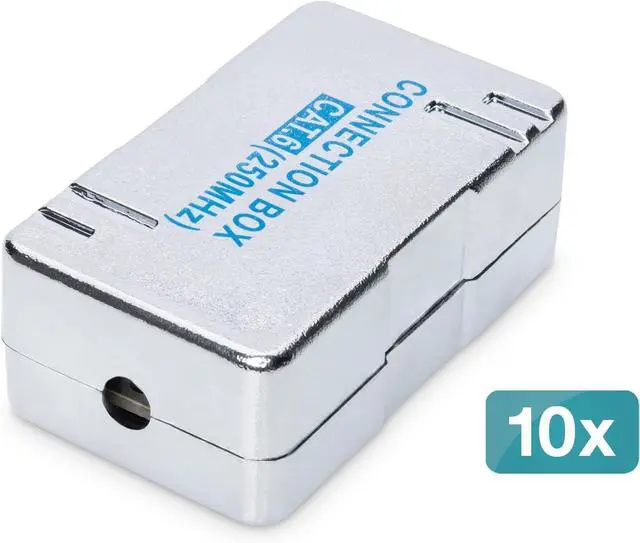

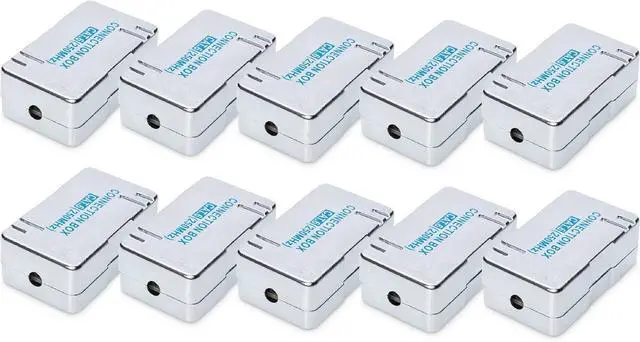

DIGITUS DN-93903 - LSA Connection Module Cat 6 - Pack of 10 - Shielded - Cat6 LSA Insulation Terminal - AWG 22 to AWG 26 - for Ethernet Cable, Network Cable, Installation Cable, Installation Cable -
- Suitable for connecting Cat-6 installation cables, extending Cat.6 cables and replacing defective cable runs (250 MHz, 1GBase-T)
- Suitable for installation in the parapet duct, flush-mounted and surface-mounted. Cable installation via LSA strips, colour-coded according to EIA/TIA 568 A & B (AWG 22-26). Integrated strain relief
- Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C // Contact RJ45 socket: nickel-plated phosphor bronze, 0.5 gold-plated contact//RJ-45 shielding: nickel-plated bronze
- Material housing: ABS UL-94V-0 // Circuit board: FR4, UL 94V-0 // LSA cutting terminal: Crown LSA+, UL 94V-0, galvanized phosphor bronze
- Wire intake: 22-26 AWG solid and stranded conductors // Insulation resistance: > 500 MOhm // Contact resistance: < 20 mm Ohm // Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
+
+
Overview
Specs
Reviews
Suitable for connecting Cat-6 installation cables, extending Cat.6 cables and replacing defective cable runs (250 MHz, 1GBase-T)
Suitable for installation in the parapet duct, flush-mounted and surface-mounted. Cable installation via LSA strips, colour-coded according to EIA/TIA 568 A & B (AWG 22-26). Integrated strain relief
Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C // Contact RJ45 socket: nickel-plated phosphor bronze, 0.5 gold-plated contact//RJ-45 shielding: nickel-plated bronze
Material housing: ABS UL-94V-0 // Circuit board: FR4, UL 94V-0 // LSA cutting terminal: Crown LSA+, UL 94V-0, galvanized phosphor bronze
Wire intake: 22-26 AWG solid and stranded conductors // Insulation resistance: > 500 MOhm // Contact resistance: < 20 mm Ohm // Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
Suitable for installation in the parapet duct, flush-mounted and surface-mounted. Cable installation via LSA strips, colour-coded according to EIA/TIA 568 A & B (AWG 22-26). Integrated strain relief
Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C // Contact RJ45 socket: nickel-plated phosphor bronze, 0.5 gold-plated contact//RJ-45 shielding: nickel-plated bronze
Material housing: ABS UL-94V-0 // Circuit board: FR4, UL 94V-0 // LSA cutting terminal: Crown LSA+, UL 94V-0, galvanized phosphor bronze
Wire intake: 22-26 AWG solid and stranded conductors // Insulation resistance: > 500 MOhm // Contact resistance: < 20 mm Ohm // Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
