Power IO Cable M12 A-Coded 12 Pin Female Right Angle to Flying Lead for Cognex Data Man 260 280 300 360 380 370 470 580 in Sight 7000 2800 9000 3800 Sensor Reader 8m

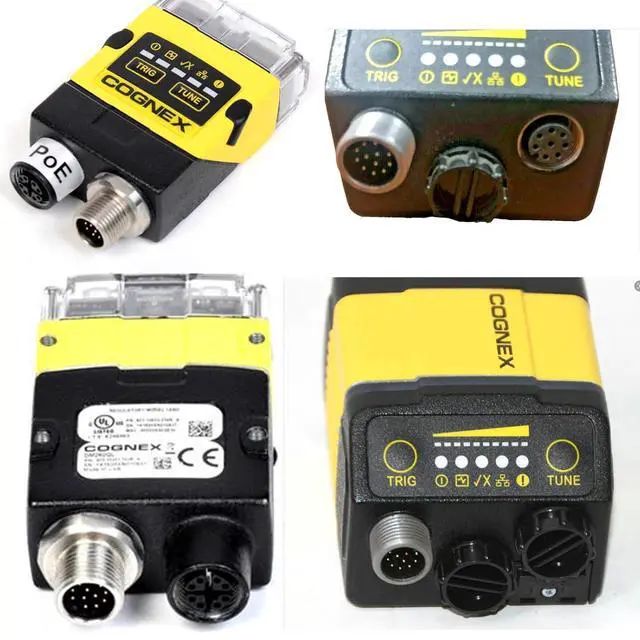

24V power IO cable for Cognex In-Sight 2000 7000 9000 2800 3800 7000Gen2 D900 / Checker 201 202 4G / DataMan 260 280 300 360 380 370 470 580 series vision system camera sensor and reader, part number CCB-PWRIO-01
Power and I/O cable for Keyence IV3 sensor, fro Baumer encoder sensor, for Omron Microscan MicroHAWK V430-F F430-F barcode reader, for Microscan HAWK MV-4000 camera / QX-870 scanner and more vision system with M12 12-pin connector
M12 12-pin A-coding flying lead 24V DC power, general purpose IO, acquisition trigger, and RS-232 cable, 8 meter

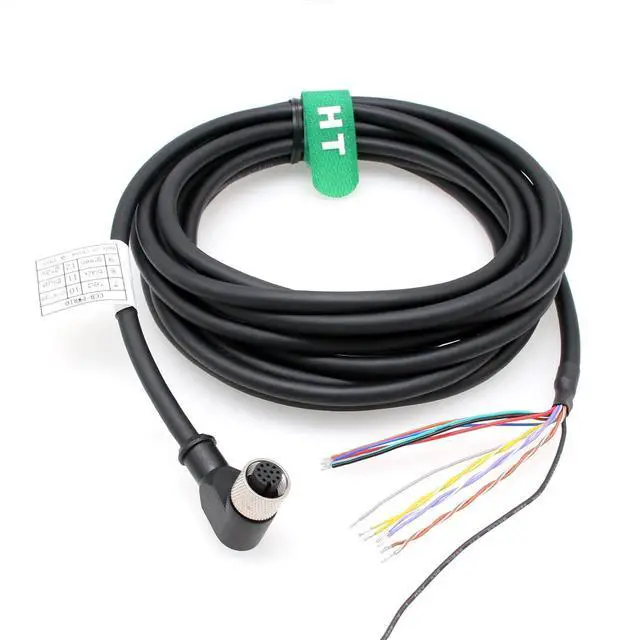

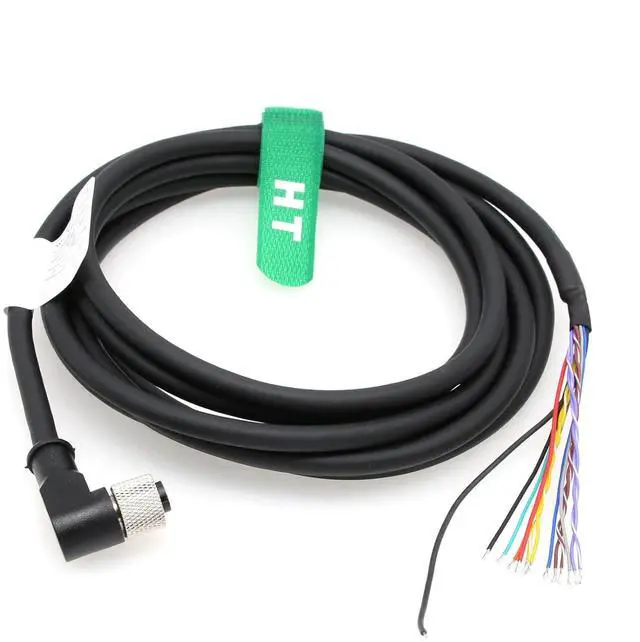

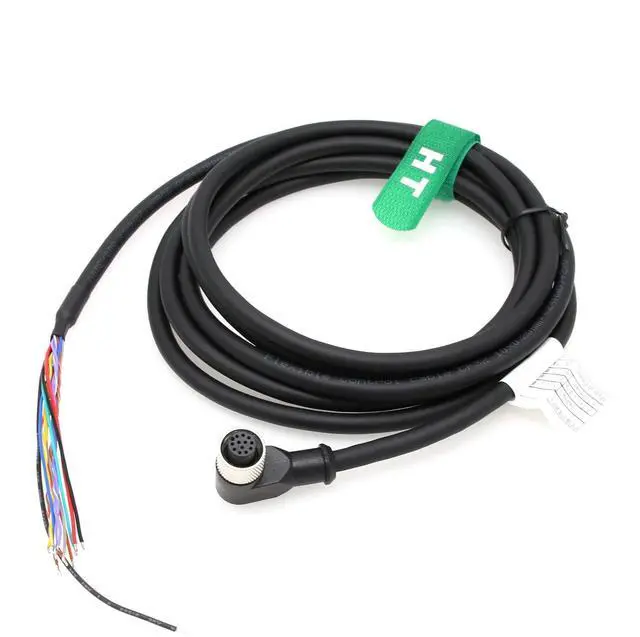

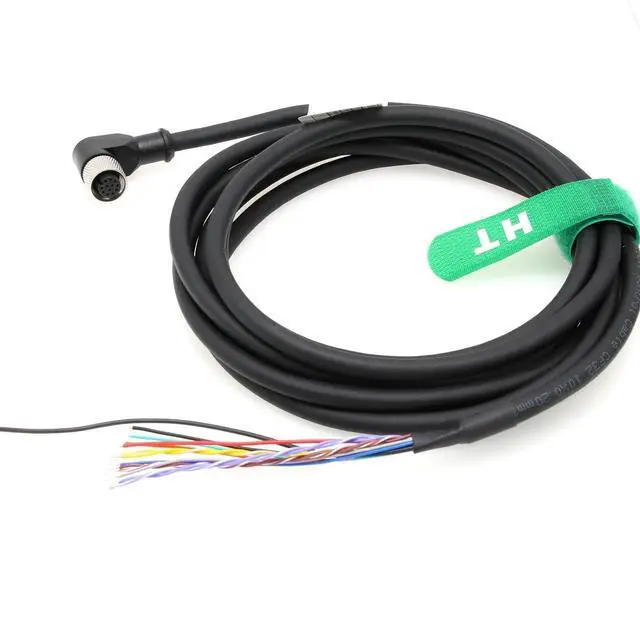

The cable has M12 A-coding 12-pin female plug connector right angle 135-degree on one end, and 12-core bare wire (also called pigtail open flying leads) on the other. Gold-plated contacts, nickel plated brass shell, waterproof, solid and durable connection. Connector with thread locking, anti-vibration, easy quick connect and disconnect

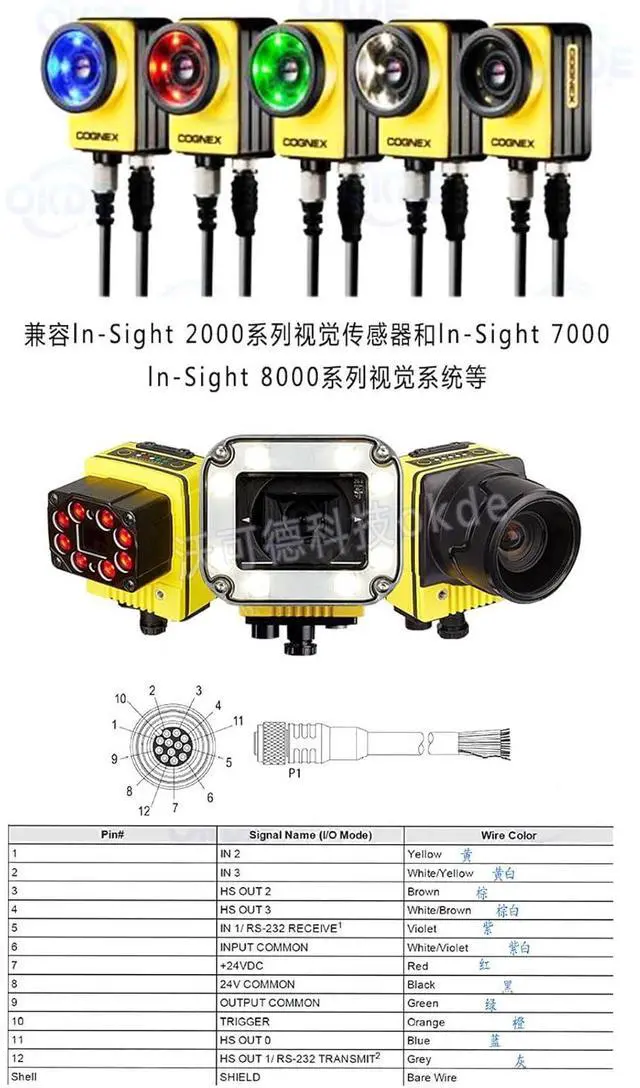

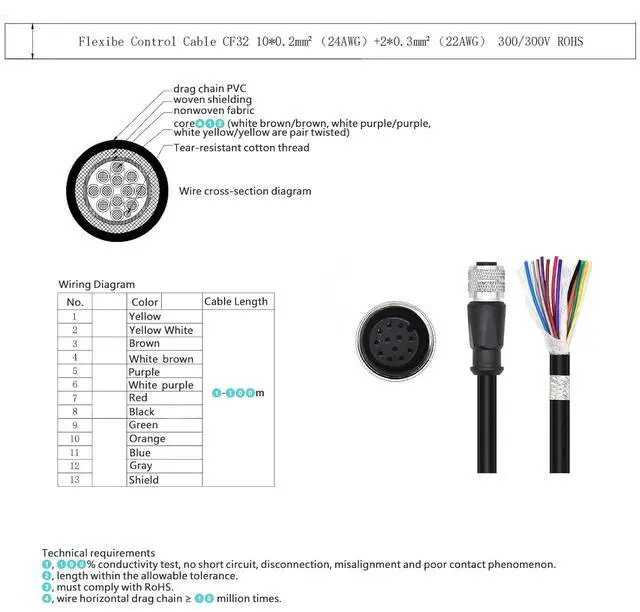

Cable with braided shielded layer, good EMC, provides shielding from electromagnetic disturbance. 23AWG wire outer diameter 7mm. High-flex heavy-duty shielded cable. Cable features: oil-resistant flame-resistant torsion- resistant and heat-resistant. Low friction black PVC material used for sheath. Cable comes with label that shows wire color correspond to each pin
