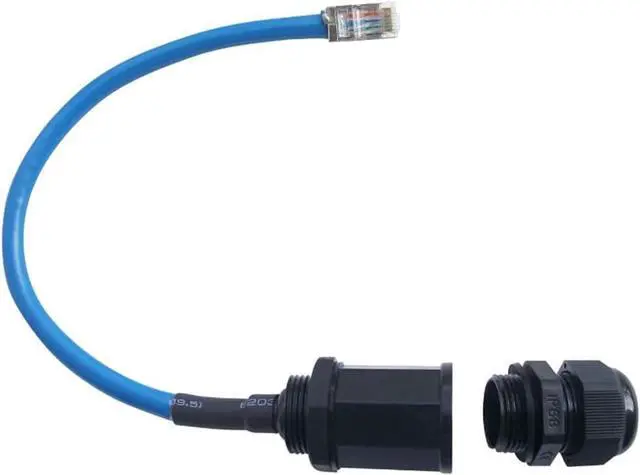

2PCS Panel Mounting RJ45 Waterproof Connector M22 Cat5/5e/6 Ethernet LAN Cable Coupler with Shield Cat6 Network Cable Outdoor LAN Coupler Adapter Male to Female
- PRODUCT FEATURES: Waterproof at one ends, the panel can be fixed, The other end has a 250mm network cable, which can be plugged into any standard RJ45 device that needs to be connected.
- IP67 WATERPROOF: The Waterproof RJ45 Connector are IP 67 Compliant. Prevented from temporary immersion for 30 min in 1 meter depth of water. Prevent the network parts from moisture, dirt and insects for quality connections.

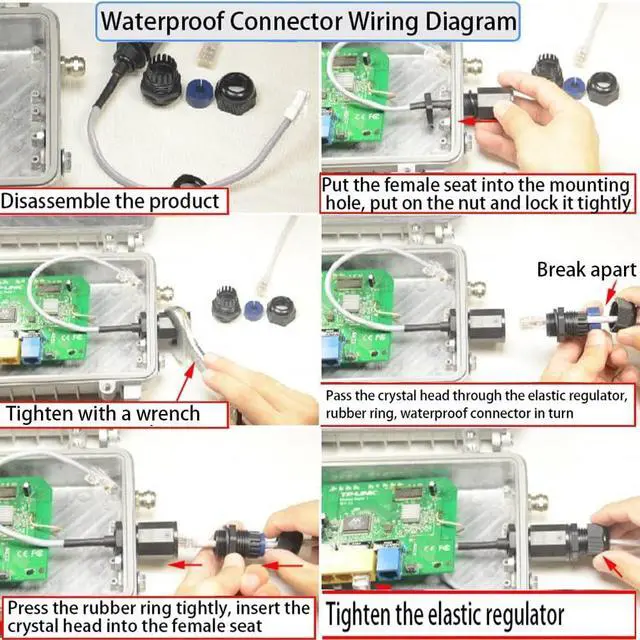

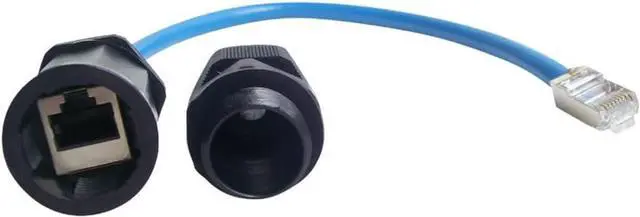

- EASY INSTALLATION: It is miniaturization, and save installation space, RJ45 female to female field installable coupler, no soldering, no installation tools, just plug the standard crystal head directly for quick installation.
- DURABLE: This RJ45 connector is well constructed and robust, flame retardant, UV resistant, and anti-aging.
- Quality Assurance: Professional waterproof connector manufacturer. The product undergoes rigorous inspection before leaving the factory. If you are not satisfied with the product, please feel free to contact us and we will provide a full refund.
+
+
Overview
Specs
Reviews

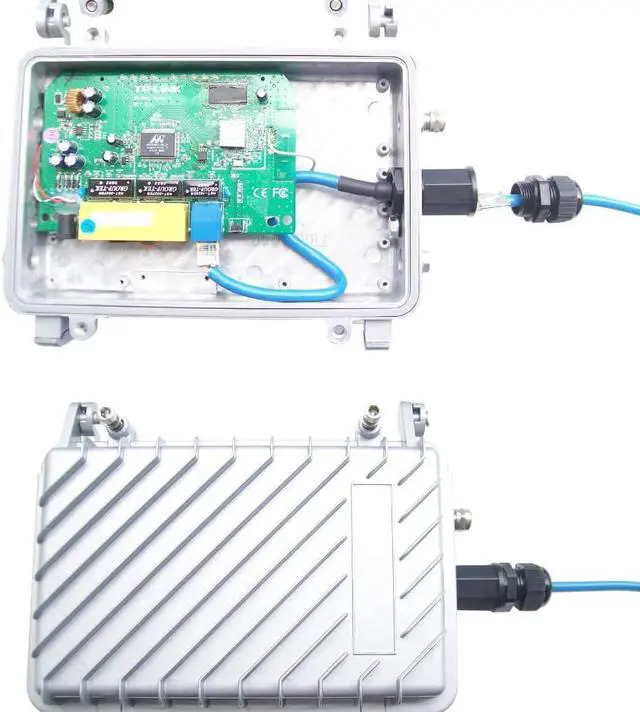

The female to female RJ45 ethernet lan cable coupler is used to turn the standard CAT5/5e patch cord into the waterproof type for the ethernet connecting in the harsh industrial or outdoor environments. A gasket seal provides optimum protection from moisture and other contaminants with an IP67 rating. Using the standards based RJ45 connection system insures compatibility with existing hardware.
Specifications:
Number of cores: 8 PIN
Waterproof rating: IP67
Connection type: RJ45
Flame retardant rating: UL94V-0

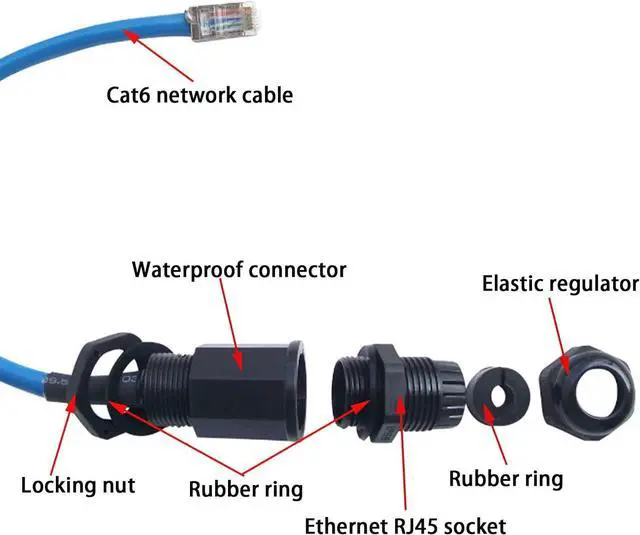

Connection method: plug type + thread pressure lock
Connector wire-in range: OD (38) mm

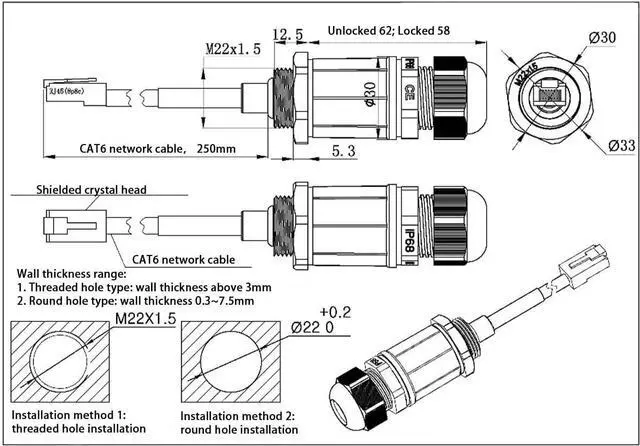

Case wall thickness: Threaded type: >3mm, through-hole type: 0.3~7.5mm
Installation size: M22X1.5
Network cable length: 250mm
Connector transmission classification: CAT6
Transmission speed range: 10BASE-T. 100 BASE-T.1000 BASE-T and 10000 BASE-T network
Electrical parameters:
Rated current: 1.5A
Rated voltage: 125VAC, 75VDC
Insulation resistance: 500M
Compressive strength: AC1000V 50HZ or 60HZ for 1 minute
Contact resistance: 10M
Material:
Shell: Nylon PA66 (UL94V-0)
Socket contact pin: 0.5mm diameter phosphor copper wire
Contact pin gold plating thickness: 6u inch
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40120Celsius
Storage temperature: -2585Celsius
Atmospheric pressure: 86106kPa
Relative humidity: 90% RH
Package Included:

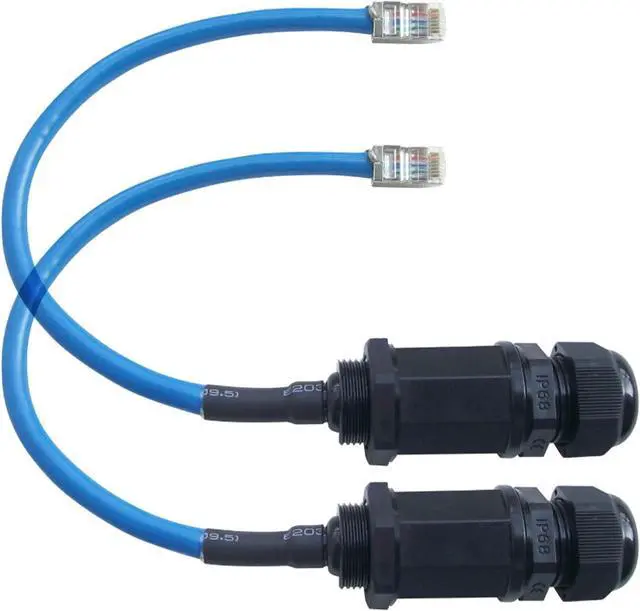

2x Waterproof M22 Cat6 RJ45 Connector
Specifications:
Number of cores: 8 PIN
Waterproof rating: IP67
Connection type: RJ45
Flame retardant rating: UL94V-0
Connection method: plug type + thread pressure lock
Connector wire-in range: OD (38) mm
Case wall thickness: Threaded type: >3mm, through-hole type: 0.3~7.5mm
Installation size: M22X1.5
Network cable length: 250mm
Connector transmission classification: CAT6
Transmission speed range: 10BASE-T. 100 BASE-T.1000 BASE-T and 10000 BASE-T network
Electrical parameters:
Rated current: 1.5A
Rated voltage: 125VAC, 75VDC
Insulation resistance: 500M
Compressive strength: AC1000V 50HZ or 60HZ for 1 minute
Contact resistance: 10M
Material:
Shell: Nylon PA66 (UL94V-0)
Socket contact pin: 0.5mm diameter phosphor copper wire
Contact pin gold plating thickness: 6u inch
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40120Celsius
Storage temperature: -2585Celsius
Atmospheric pressure: 86106kPa
Relative humidity: 90% RH
Package Included:
2x Waterproof M22 Cat6 RJ45 Connector
