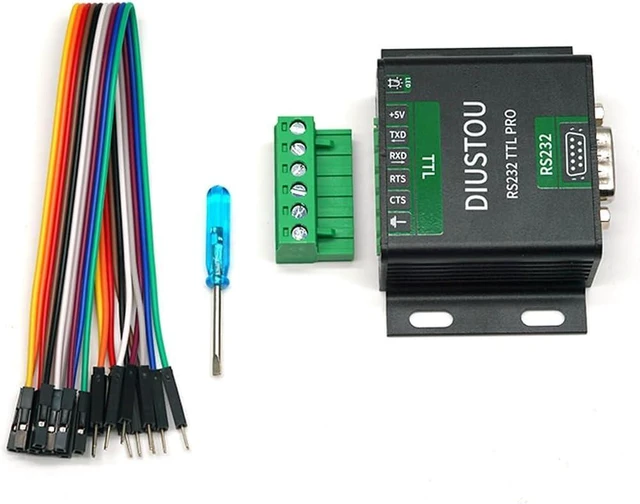

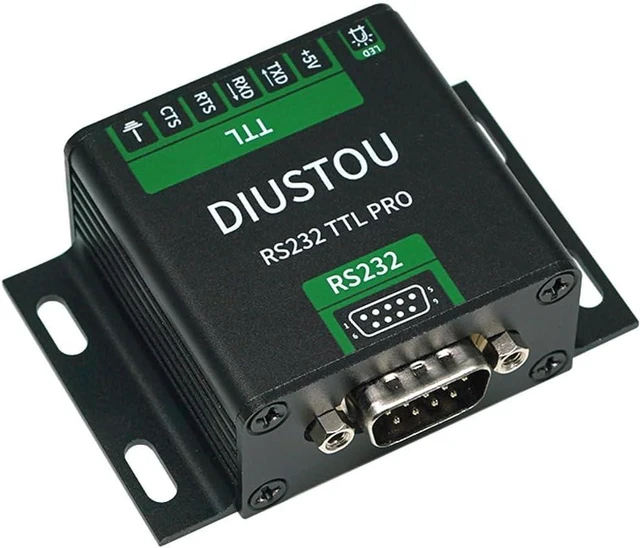

RS232 to TTL Serial Module SP3232 Chip Serial Converter Aluminium Alloy Case Industrial Standard with Insulation Protection Bidirectional Conversion TTL to RS232
- Using the original SP3232 chipset, large package component mode, with independent power supply isolation and magnetic coupling isolation circuit.
- The circuit only adopts 5V power supply mode, the output signal level of TTL signal terminal is 5V (the same as the power supply voltage), the input signal level is 5V (compatible with 3.3V signal input).
- TTL terminal RXD, TXD, RTS, CTS pin with over-current protection. Strong shock resistance. RS232 terminal RXD, TXD, RTS, CTS pin * with over-current protection, electrostatic protection circuit.
- The electrostatic protection circuit will release static electricity to the peripheral metal part of the RS232 plug, for better protection, it is recommended to ground it.
- Aluminium alloy shell, oxidation frosted treatment, with 5.08mm standard terminal block, smooth plugging and unplugging, sturdy and reliable.
+
+
Overview
Specs
Reviews
Using the original SP3232 chipset, large package component mode, with independent power supply isolation and magnetic coupling isolation circuit.
The circuit only adopts 5V power supply mode, the output signal level of TTL signal terminal is 5V (the same as the power supply voltage), the input signal level is 5V (compatible with 3.3V signal input).
TTL terminal RXD, TXD, RTS, CTS pin with over-current protection. Strong shock resistance. RS232 terminal RXD, TXD, RTS, CTS pin * with over-current protection, electrostatic protection circuit.
The electrostatic protection circuit will release static electricity to the peripheral metal part of the RS232 plug, for better protection, it is recommended to ground it.
Aluminium alloy shell, oxidation frosted treatment, with 5.08mm standard terminal block, smooth plugging and unplugging, sturdy and reliable.
The circuit only adopts 5V power supply mode, the output signal level of TTL signal terminal is 5V (the same as the power supply voltage), the input signal level is 5V (compatible with 3.3V signal input).
TTL terminal RXD, TXD, RTS, CTS pin with over-current protection. Strong shock resistance. RS232 terminal RXD, TXD, RTS, CTS pin * with over-current protection, electrostatic protection circuit.
The electrostatic protection circuit will release static electricity to the peripheral metal part of the RS232 plug, for better protection, it is recommended to ground it.
Aluminium alloy shell, oxidation frosted treatment, with 5.08mm standard terminal block, smooth plugging and unplugging, sturdy and reliable.
