GRIDCONNECT CAN 2 Meter Cable with CAN Bus Terminators (GC-CAN-CAB-2MT-GC)

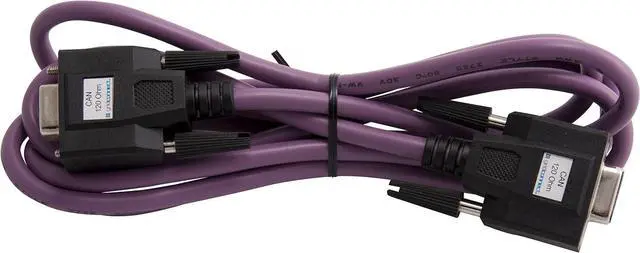

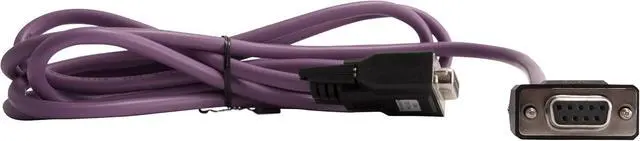

- Durable, High-Quality Construction: 2-meter CAN cable with DB9 female connectors on both ends, featuring 24 AWG stranded copper twisted-pair conductors, electronic grade polyethylene insulation, tinned copper shielding, and a flame-retardant violet PVC jacket.
- Built-in Termination: Includes 120-ohm terminating resistors across CAN_L and CAN_H in each DB9 connector, ensuring proper signal integrity and line balancing for CAN bus systems.
- Standard Compliance: Meets UL-Type AWM specifications and the DB9 connectors conform to CiA DS102-1 standards for reliable and consistent CAN network connectivity.
- Broad Compatibility: Fully compatible with all versions of Peak PCAN adapters including USB, PCI, mini PCI, Compact PCI, Express, PCMCIA, PC/104, PC/104+, and ISA interfaces.
- Wiring Configuration: Signal pin mapping includes twisted-pair connections for CAN_H (pin 7 to 7) and CAN_L (pin 2 to 2), with CAN_GND wired from pin 3 to 3.
+
+
Overview
Specs
Reviews
Durable, High-Quality Construction: 2-meter CAN cable with DB9 female connectors on both ends, featuring 24 AWG stranded copper twisted-pair conductors, electronic grade polyethylene insulation, tinned copper shielding, and a flame-retardant violet PVC jacket.
Built-in Termination: Includes 120-ohm terminating resistors across CAN_L and CAN_H in each DB9 connector, ensuring proper signal integrity and line balancing for CAN bus systems.
Standard Compliance: Meets UL-Type AWM specifications and the DB9 connectors conform to CiA DS102-1 standards for reliable and consistent CAN network connectivity.
Broad Compatibility: Fully compatible with all versions of Peak PCAN adapters including USB, PCI, mini PCI, Compact PCI, Express, PCMCIA, PC/104, PC/104+, and ISA interfaces.
Wiring Configuration: Signal pin mapping includes twisted-pair connections for CAN_H (pin 7 to 7) and CAN_L (pin 2 to 2), with CAN_GND wired from pin 3 to 3.
Built-in Termination: Includes 120-ohm terminating resistors across CAN_L and CAN_H in each DB9 connector, ensuring proper signal integrity and line balancing for CAN bus systems.
Standard Compliance: Meets UL-Type AWM specifications and the DB9 connectors conform to CiA DS102-1 standards for reliable and consistent CAN network connectivity.
Broad Compatibility: Fully compatible with all versions of Peak PCAN adapters including USB, PCI, mini PCI, Compact PCI, Express, PCMCIA, PC/104, PC/104+, and ISA interfaces.
Wiring Configuration: Signal pin mapping includes twisted-pair connections for CAN_H (pin 7 to 7) and CAN_L (pin 2 to 2), with CAN_GND wired from pin 3 to 3.
