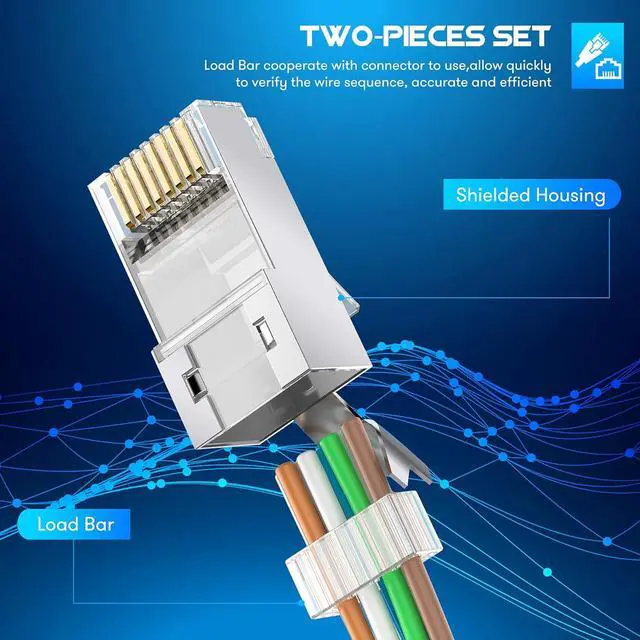

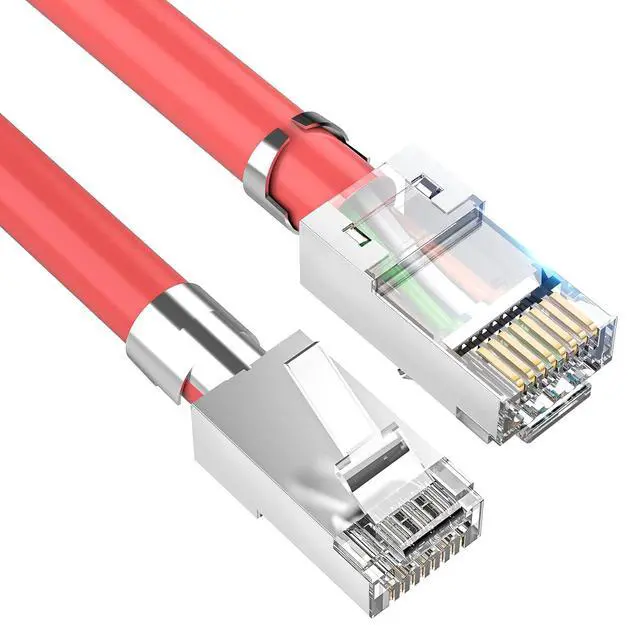

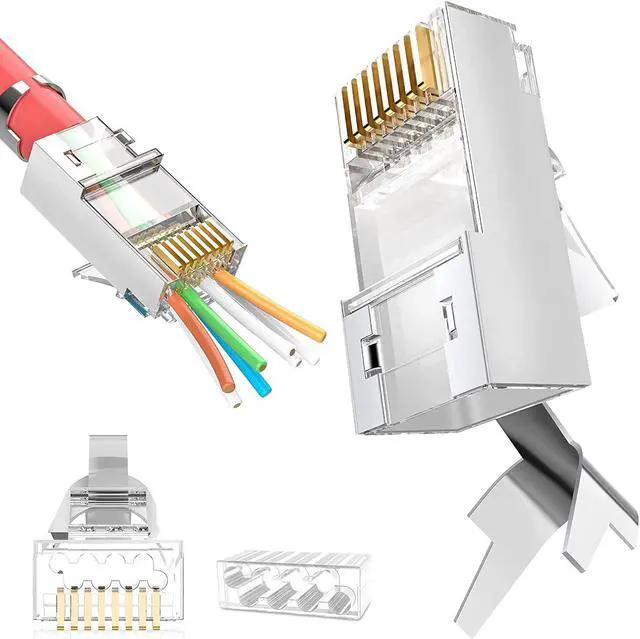

Shielded RJ45 Cat6A Cat7 Pass Through connectors - 3 Prong 8P8C 50U Gold Plated 2-Piece Pass-Through Modular Data Plug for FTP/STP Cable & Solid Wire (30 Pack)

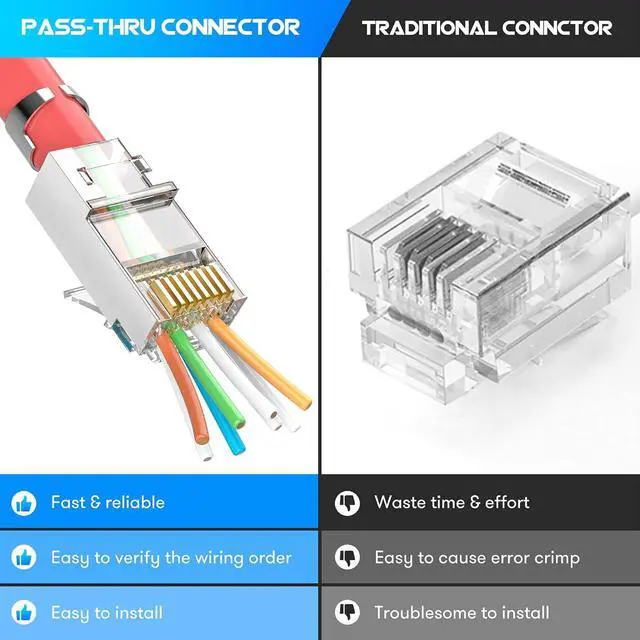

Pass-Thru design make Custom ethernet cables easier and handily
-Simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front
-Technician can easily verify the proper wiring order


Reliable, compliant performance
- Are fully Ro Hs, UL and FCC compliant and are suitable for use in category 6 7 data networks.
-Electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector
-Reduces the distance between the wire twists and contacts improves performance.


Fitment:
Cable Jack Diameter: 6.0-8.5mm

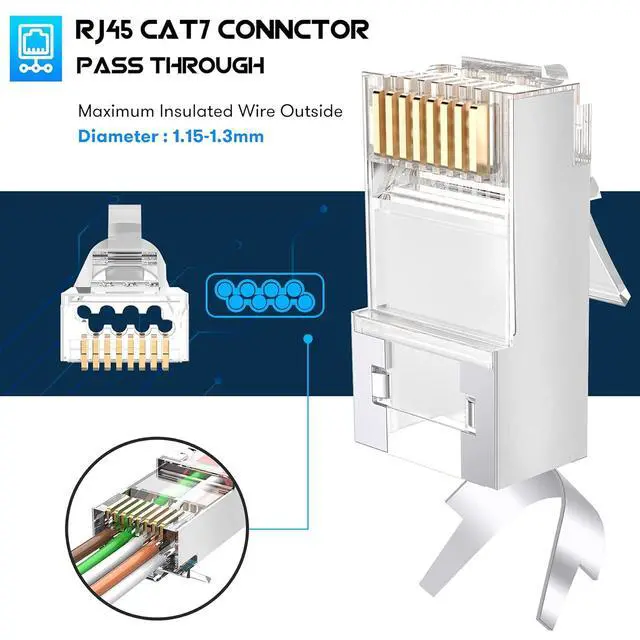

Insulated conductor diameters from 1.1 51. 3mm
Conductor Type: Solid or stranded copper conductors


For the RJ45 connector you will need to know:
Cable jacket OD that the plug is capable of accepting
Conductor insulation diameter that the plug is capable of accepting
If the plug is 2 prong or 3 prong. 3 prong plugs work with stranded and solid copper conductors. 2 prong plugs work with stranded copper only.
Using 3-prong style RJ45 connectors creates a much better connection as it doesn't break the conductorthe 3-prongs style connection wraps around the conductor instead of penetrating it.


Tips:

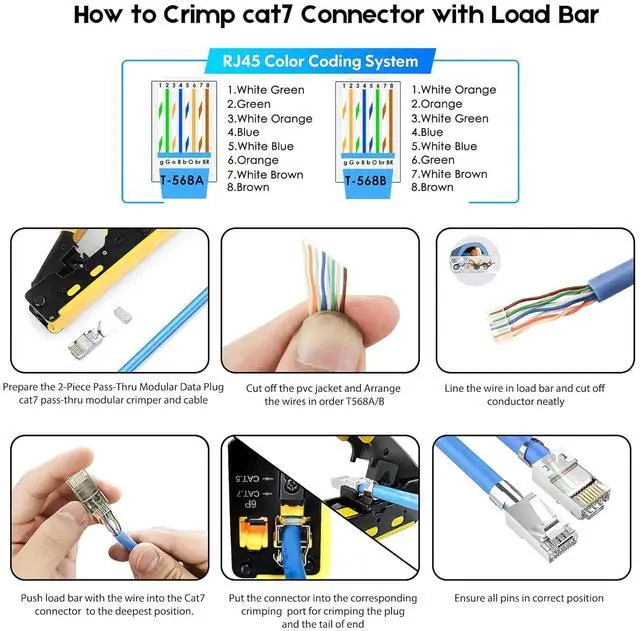

1.Please straighten the wires and cut it neatly so that pass through easier
2. Please Works with CAT 7 Pass-Thru crimping tool
Note: If you use a regular crimper, you'll need a utility knife to slice off the wires right at the end of the plug as they come out, when you're done crimping. Simply cutting the wires will not do,because the tiny stubs left will prevent the plug from going into the socket
Please do not hesitate to contact us if any queries .Thank you !
