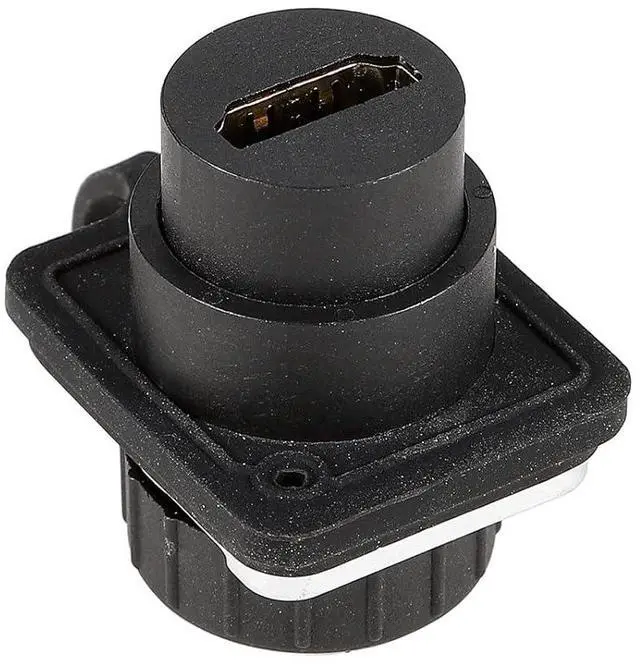

2PCS HDMI IP67 Panel Mount Waterproof Connector, PA6BG33 Housing Female to Female HDMI Bulkhead Coupler with Weatherproof Dust Cap

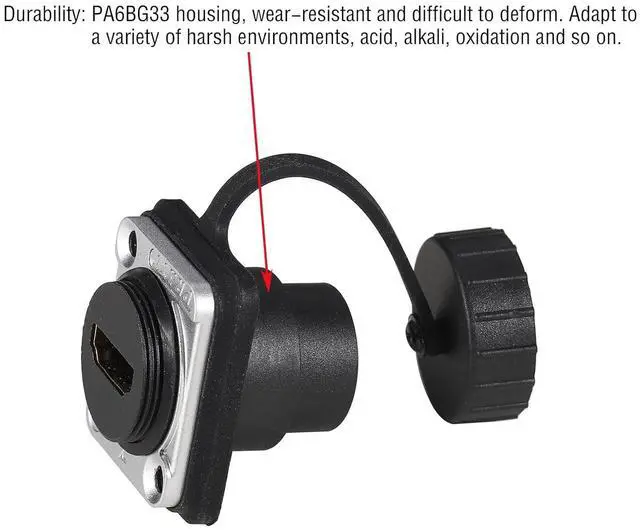

- DURABLE: This HDMI connector is made of PA6BG33, flame retardant, UV resistant, and anti-aging.
- Perfectly supports 4K HDR 1080P 60FPS. Bandwidth up to 18Gbps. Support HDMI signals from devices such as TV Box, Xbox Series, PS5, Blu-Ray Player, PC, TV Stick, Laptop for HDTV, Monitor, Projector and more.
- The contact pin is phosphor bronze (CuSn8) plated with 7µm Au, which is more sensitive to contact.
- Ideal for extend and accomplish the data transfer in your car, boat, motorcycle, support very easy access to your accessory inputs.

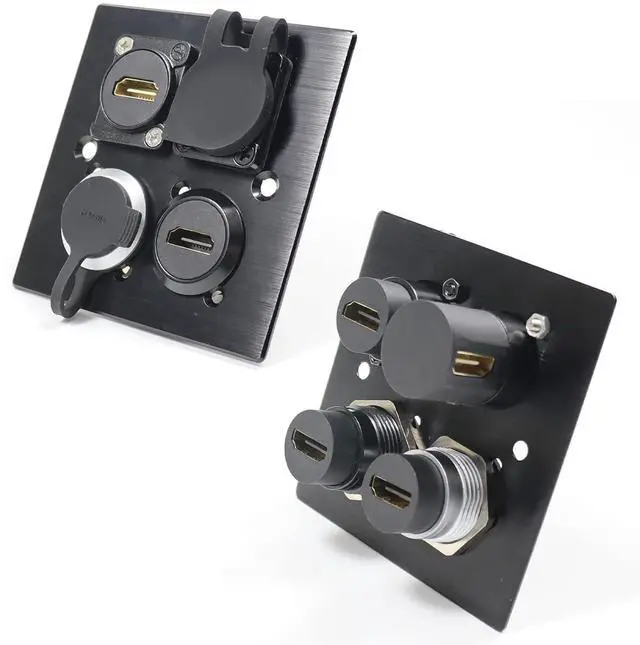

- Standard D-Series Connector for Panel-Mount Installations, and save installation space, HDMI female to female field installable coupler, no soldering, no installation tools, just plug the standard hdmi head directly for quick installation.
+
+
Overview
Specs
Reviews
Technical Specifications:
Number of cores: 19 pin
Waterproof rating: None (without waterproof cover), IP67 (with waterproof cover)
Connection type: HDMI (standard port)
Flame retardant rating: UL94V-0
Connection method: plug type
Thread size: 24*1.5
Electrical parameters:
Rated current: 1.5A
Rated voltage: 50V
Insulation resistance: 500M
Dielectric strength: DC1000V
Contact resistance: 10m
Material:
Shell: PA6BG33
Contact material: Bronze (CuSn8)
Contact pin gold plating: 7µm Au over Ni plating
Insulator material: PBTP 15% GR
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40120Celsius
Storage temperature: -2585Celsius
Atmospheric pressure: 86106kPa
Relative humidity: 90% RH
Mechanical parameters:
Insertion pressure: less than 10N
Withdrawal pressure: less than 10N
Service life: more than 1000 times
Installation panel thickness: min 2.0mm-max 10mm

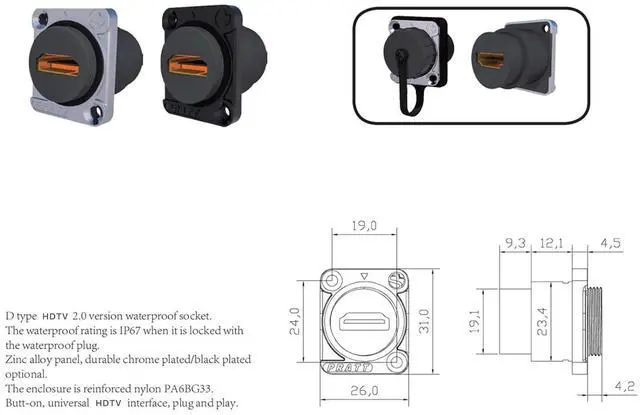

Base shape: D type
NOTE:The industrial panel mount bulkhead includes a water/dust cap, that with characters of fire safety, compression, anti-explosion and anti-deformation, meets IP67 Water Protection. It is not waterproof without water/dust cap.
Package includes:

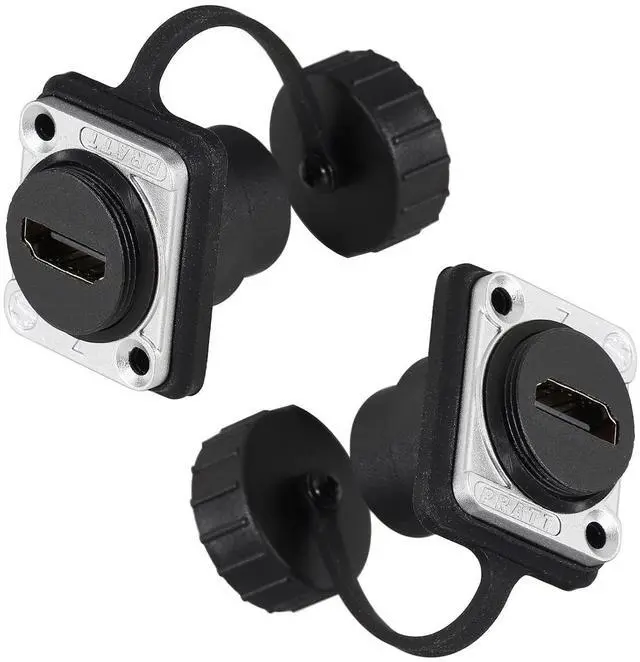

2 x Panel Mounting HDMI Waterproof Connector
Number of cores: 19 pin
Waterproof rating: None (without waterproof cover), IP67 (with waterproof cover)
Connection type: HDMI (standard port)
Flame retardant rating: UL94V-0
Connection method: plug type
Thread size: 24*1.5
Electrical parameters:
Rated current: 1.5A
Rated voltage: 50V
Insulation resistance: 500M
Dielectric strength: DC1000V
Contact resistance: 10m
Material:
Shell: PA6BG33
Contact material: Bronze (CuSn8)
Contact pin gold plating: 7µm Au over Ni plating
Insulator material: PBTP 15% GR
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40120Celsius
Storage temperature: -2585Celsius
Atmospheric pressure: 86106kPa
Relative humidity: 90% RH
Mechanical parameters:
Insertion pressure: less than 10N
Withdrawal pressure: less than 10N
Service life: more than 1000 times
Installation panel thickness: min 2.0mm-max 10mm
Base shape: D type
NOTE:The industrial panel mount bulkhead includes a water/dust cap, that with characters of fire safety, compression, anti-explosion and anti-deformation, meets IP67 Water Protection. It is not waterproof without water/dust cap.
Package includes:
2 x Panel Mounting HDMI Waterproof Connector
