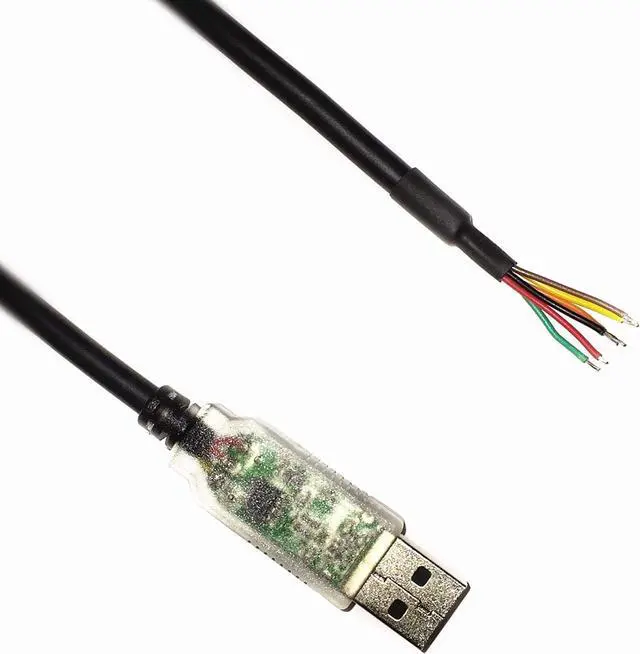

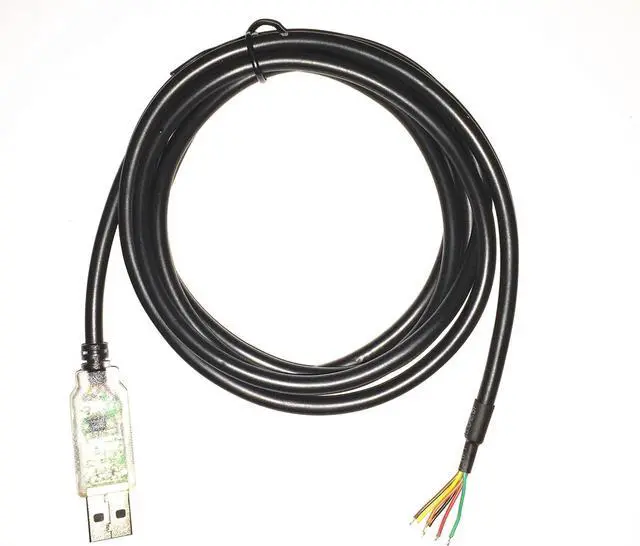

FTDI Chip usb to RS485 Cable with TX/RX LEDs, Wire End, 1.5m, USB-RS485-WE compatible, EZSync010
- USB-RS485 converter cable provides a USB to RS485 serial interface with customised end connectors.
- Entire USB to RS485 translation protocol handled by the electronics over-molded in the cable
- ESD Protection for RS-485 I/O's ±15kV Human Body Model (HBM) ±15kV EN61000-4-2 Air Gap Discharge
- EIA/TIA-485 communication interface with low power requirements. Overmolded FT232R chipset provides

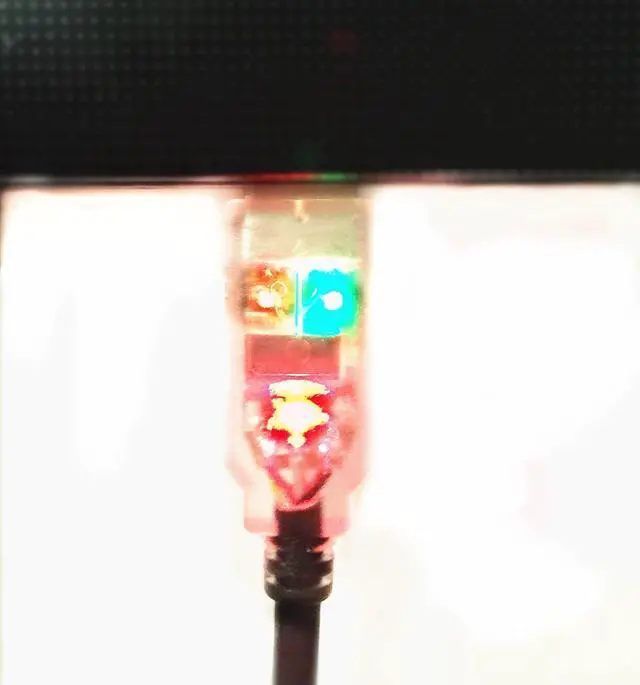

- Visual indication of Tx and Rx traffic via LEDs in the transparent USB connector.
+
+
Overview
Specs
Reviews
Every EZSync cable is built to last for years with high quality industrial grade materials. The cable works with all Windows and Mac OS versions including the latest Windows 10 and Mac OS X 10.10(Yosemite) and 10.11(EI Capitan). The USB-RS485 cable is a USB to RS485 levels serial UART converter cable incorporating FTDIs FT232RQ USB to serial UART interface IC device which handles all the USB signalling and protocols. The cable provides a fast, simple way to connect devices with a RS485 interface to USB. This cable has 6 outputs: GND(Black), Data-(Yellow), 5vPower(RED), Terminator1(Brown), Data+(Orange), Terminator 2(Green).
