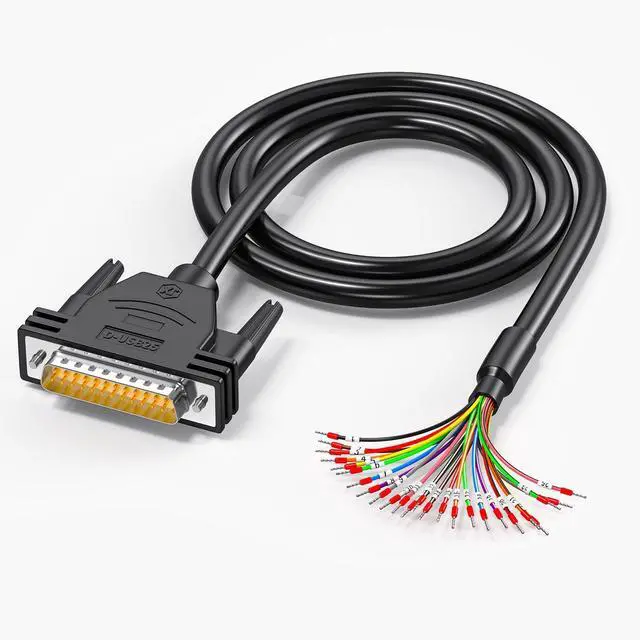

DB25 Male to Bare Cable with Cable Marker 1m, D-SUB Connector 25-Pin RS232 Serial Cable, 25 Strands All Provided with Wiring Terminals - Black

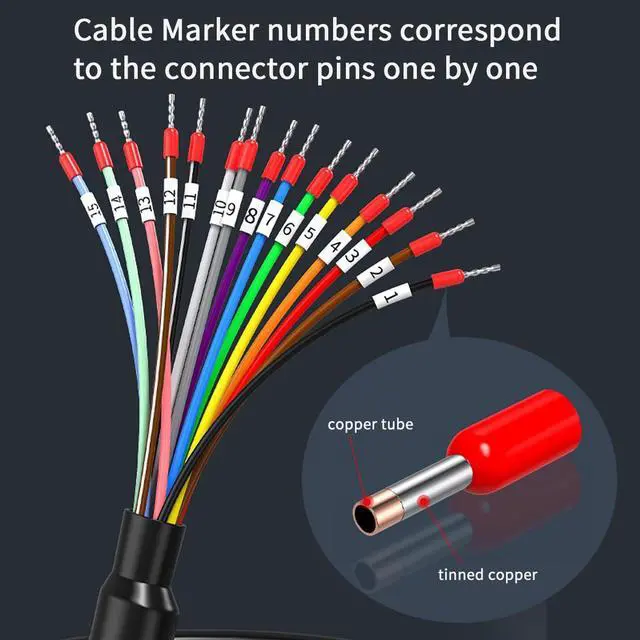

1m DB25 male to bare wire adapter with wire marker, each end of the wires is equipped with red cold crimp terminals (red copper material) and wire marker, which are tightly crimped and will not fall off, easy to use
25 Pin PIN-RS232 Series Connector All pins are gold plated connectors with copper core, with good plug resistance and good contact. Bare DB25 cable adopts molded black PVC and injection molded housing
25 cable cores are made of 24AWG tinned copper, with a diameter of 1mm per core and an outer diameter of the wire of 8mm. Covered with aluminum foil+high-density woven mesh to form a double-layer shielding, with strong anti-interference ability.
DB25 to wire sequence: 1-black, 2-brown, 3-red, 4-orange, 5-yellow, 6-green, 7-blue, 8-purple, 9-grey, 10 white, 11 pink, 12 light green, 13 black white, 14 brown white, 15 orange white, 16 yellow white, 17 green white, 18 blue white, 19 purple white, 20 red black, 21 orange black. 22 Yellow Black, 23 Green Black, 24 Grey Black, 25 Pink Black
Multiple communication protocols: DB25 cable with direct attach cabling (i.e. pin 1 to pin 1) design as per industry standards. DB25 to bare wire can be used for automatic control equipment, server, CNC, electrical equipment, UPS, PLC, servo driver, communication instrument, electronic scale, medical equipment, etc.
