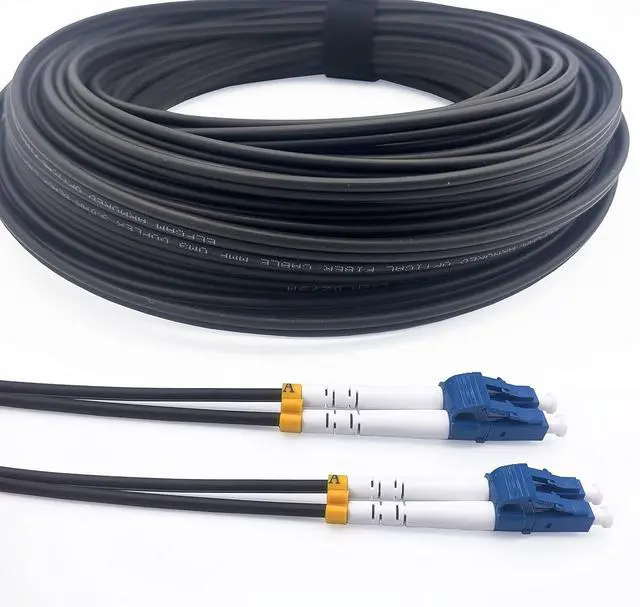

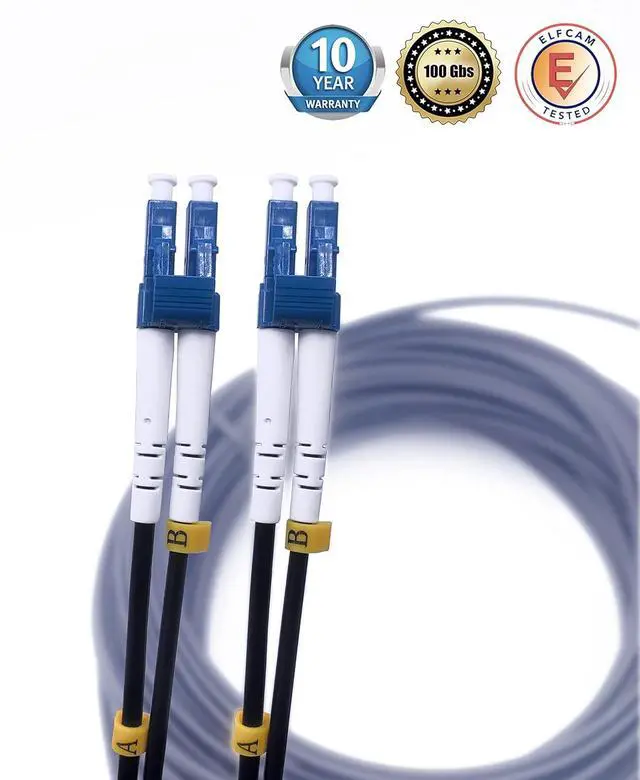

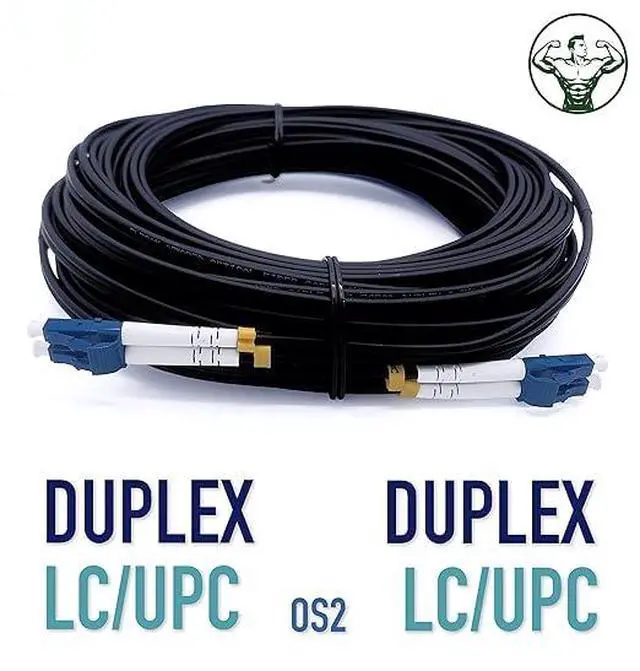

Elfcam® - 60m/196.8ft Outdoor and Indoor Shielded Armored Fiber Optic Cable LC/UPC to LC/UPC OS2 Singlemode Duplex 9/125m LSZH, Black 60 Meters

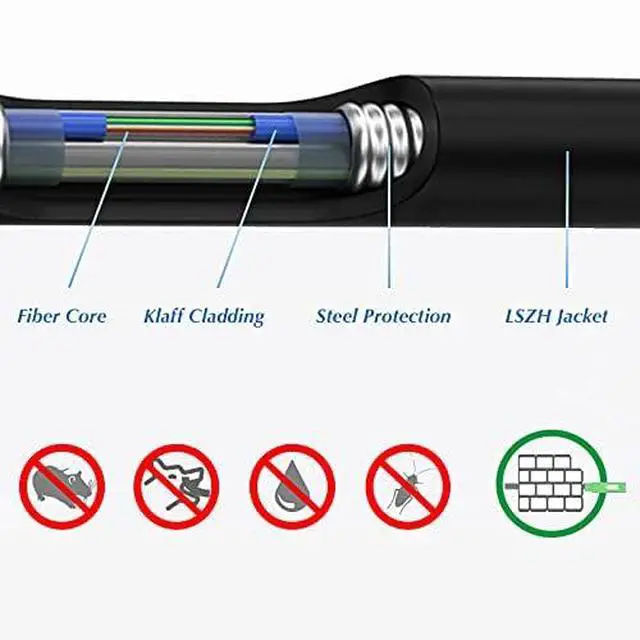

- Armored steel fiber optic cable for outdoor and indoor LC/UPC to LC/UPC OS2 singlemode duplex, 9/125 um. Shielded steel tape inside the outer jacket resists damage caused by harsh environments, stress, and rodent bites. High-quality fiber ensures reliable connections in harsh environments (machinery, factories, railroads, churches, etc.).
- PROTECT YOUR COMMUNICATIONS: ELFCAM's fiber optic patch cords are designed for outdoor installations (fiber optic cables are not affected by the weather) and concealed projects. The reinforced shielding better protects its core and ensures you a better communication experience.
- Testing and certification: ELFCAM assures you that all our cables are stress tested and certified. They are also ITU G657A2/B2 certified. Cable diameter: 3.0 mm (one fiber). Sheath material: Armored steel and LSZH (zero halogen and low smoke).
- Connects to 10GBase-LR, 10G SFP+, 25G SFP28 and 40G QSFP+, 100G QSFP28 transceivers for 10Gb/25Gb/40Gb/Gb networks. Insertion Loss:
+
+
Overview
Specs
Reviews
Fiber Cable Type2 (Duplex) Fiber ModeOS2 Singlemode G657A2/B2Connector ALC/UPCConnector BLC/UPCCable JacketLSZHJacket ColorBlackOuter Cable Diameter 3.0 mm (One Fiber) Minimum Bending Radius10D/20D(Static/Dynamic)Insertion Loss (dB) 0.30 dBReturn Loss (dB) 50dB (UPC) Tensile Strength (N) 300N (Long Term) /1000N (Short Term) Crush Load(N/mm)500N/mm (Long Term) /1000N/mm (Short Term) Technical
Specifications
of Armored Parthcord LC/UPC to LC/UPC Singlemdoe Duplex Outdoor & indoor use for tough environmentsAnti-erosion design Connects to 1G/10Gb/25G/40G/100G transceivers Easy to separate for installationWarranty & Returns
