HMI PLC All in One 7in TFT LCD Display Industrial Control Board with 12 Inputs 8 Outputs for FX3U 20 40 48MRT WSB7020R HMI DC24V 5A
- [HMI PLC All in One] Equipped with 32 bit 240MHz ARM9 processor and 128M NAND FLASH memory, compatible with for FX3U 20 40 48MRT. The touch screen has low power consumption, fast running speed, and

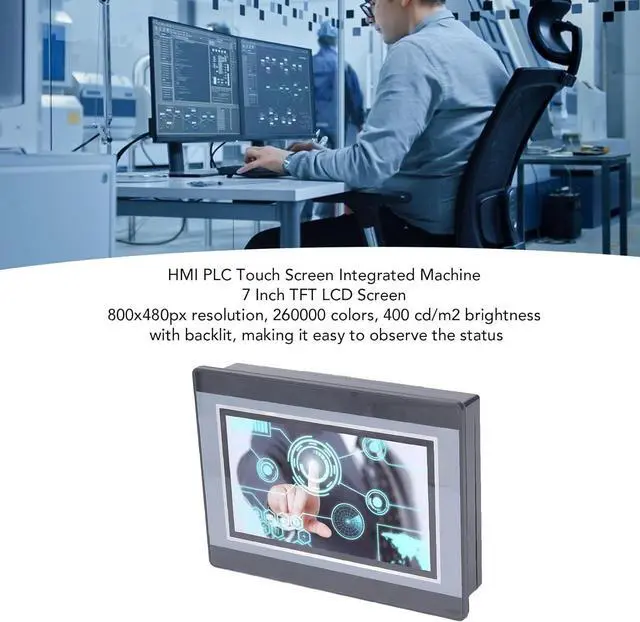

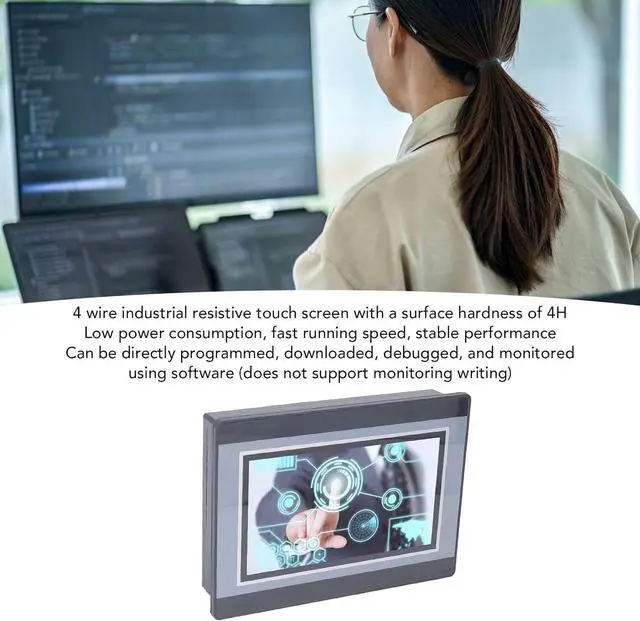

- [7in TFT LCD Display] Featuring 800x480px resolution, 260,000 colors, and 400 cd/m2 brightness with backlit display, providing easy observation of status. The 4 wire industrial resistive touch screen ensures durability with 4H hardness.

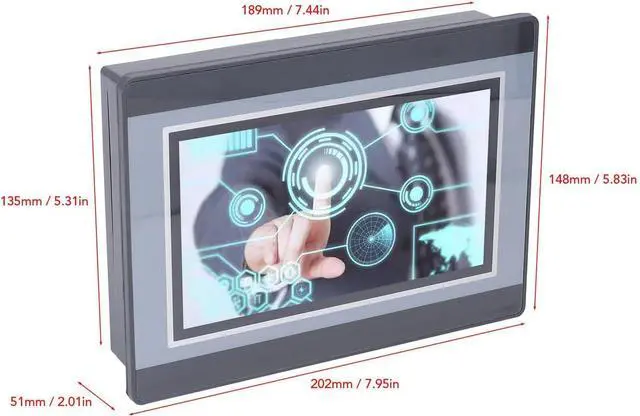

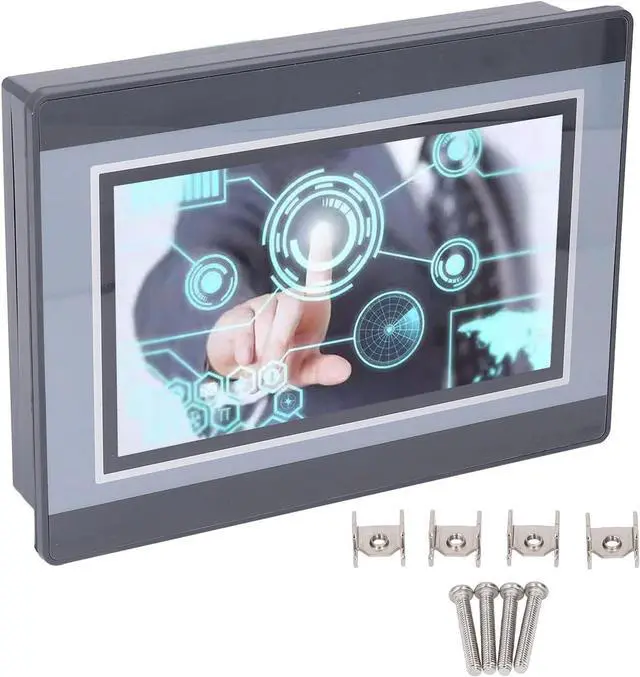

- [Simple Installation] With a hole size of 190x135 mm and complete with screws and fixing accessories, the HMI PLC all in one machine can be directly installed without hassle.
- [HMI Programming] Use for HMI Studio 5.1 software for programming, download for HMI program using a USB male to male cable.
- [PLC Download and Programming] The download speed is 38.4Kbps, you can directly use for GX Developer or for GX Works2 for programming, downloading, debugging, and monitoring (monitoring writing is not supported).
+
+
Overview
Specs
Reviews
[HMI PLC All in One] Equipped with 32 bit 240MHz ARM9 processor and 128M NAND FLASH memory, compatible with for FX3U 20 40 48MRT. The touch screen has low power consumption, fast running speed, and
[7in TFT LCD Display] Featuring 800x480px resolution, 260,000 colors, and 400 cd/m2 brightness with backlit display, providing easy observation of status. The 4 wire industrial resistive touch screen ensures durability with 4H hardness.
[Simple Installation] With a hole size of 190x135 mm and complete with screws and fixing accessories, the HMI PLC all in one machine can be directly installed without hassle.
[HMI Programming] Use for HMI Studio 5.1 software for programming, download for HMI program using a USB male to male cable.
[PLC Download and Programming] The download speed is 38.4Kbps, you can directly use for GX Developer or for GX Works2 for programming, downloading, debugging, and monitoring (monitoring writing is not supported).
[7in TFT LCD Display] Featuring 800x480px resolution, 260,000 colors, and 400 cd/m2 brightness with backlit display, providing easy observation of status. The 4 wire industrial resistive touch screen ensures durability with 4H hardness.
[Simple Installation] With a hole size of 190x135 mm and complete with screws and fixing accessories, the HMI PLC all in one machine can be directly installed without hassle.
[HMI Programming] Use for HMI Studio 5.1 software for programming, download for HMI program using a USB male to male cable.
[PLC Download and Programming] The download speed is 38.4Kbps, you can directly use for GX Developer or for GX Works2 for programming, downloading, debugging, and monitoring (monitoring writing is not supported).
