VSDISPLAY 14 Inch NV140XTM-N52 IPS LCD Screen 3840x1100 14'' Display Panel with Type C LCD Controller Board VS-RT2795T4K-V5
- Specifications:14 Inch NV140XTM-N52 3840X1100 IPS LCD screen EDP interface with USB C LCD controller board,R support
- Feature:The bezel is thin and lightweight, display, max 3840x2160 60Hz support CP2.2
- Application:Widely usage,DIY compenents,can be used for computer case,panel replacement,game cabinet display screen or DJ setup,you can according to your needs to DIY
- Service:All the products are tested before package and shipment,if any question,please feel free to contact us
- Packing list:1× USB C LCD Controller;1× 14 inch NV140XTM-N52 3840X1100 IPS LCD Screen;1× Signal Cable;1× Keyboard With Cable(Please notice that there is no power supply in the packing list)
+
+
Overview
Specs
Reviews

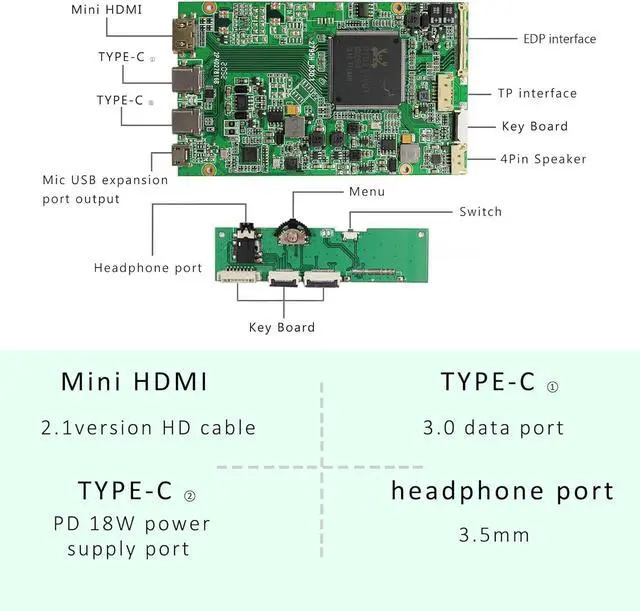

LCD Controller Board:
USB C Board For 4 Lane eDP Support Max 4096x2160 60Hz LCD Screen
Input Power Adapter: PD 5V dc USB C 18W
Come In Standby Model When Not Input Signal
Standby Model <1.2W
R: Support
Video Input
( max 3840x2160 60Hz Support CP2.2)
USB-C (Data Transmission Image Display 5V Max 3A output)
Audio Output: Earphone
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English French German Spanish Italian And So On

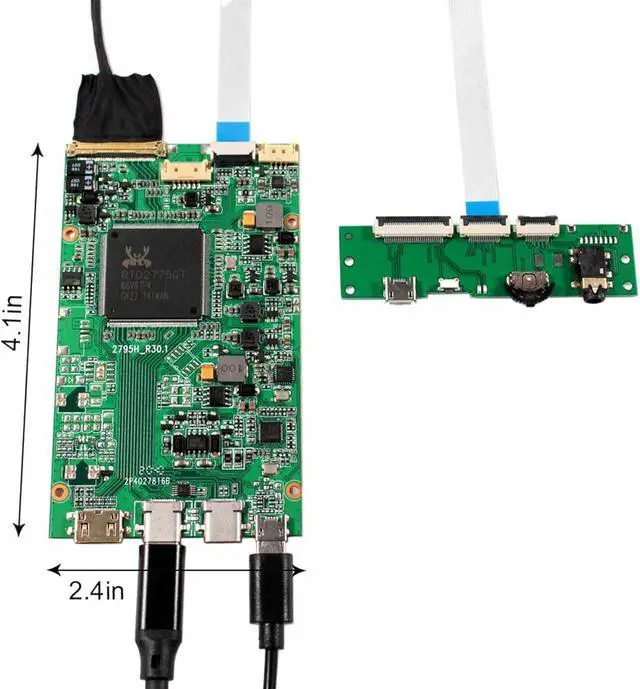

Board Size: 104.0mm x 62mm x 5mm
14" LCD Screen NV140XTM:
Display Mode AAS, Normally Black, Transmissive
Resolution 3840 (RGB)×1100
Outline Size 350.52(W)×118.65 (H) ×2.5(D) mm
Display Area 344.218(W)×98.604(H) mm
Brightness 300 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR10) [Left / Right / Up / Down]
Signal Interface eDP (4 Lanes) , Connector ,30 pins
Backlight WLED
Input Voltage 3.3V (Typ.)

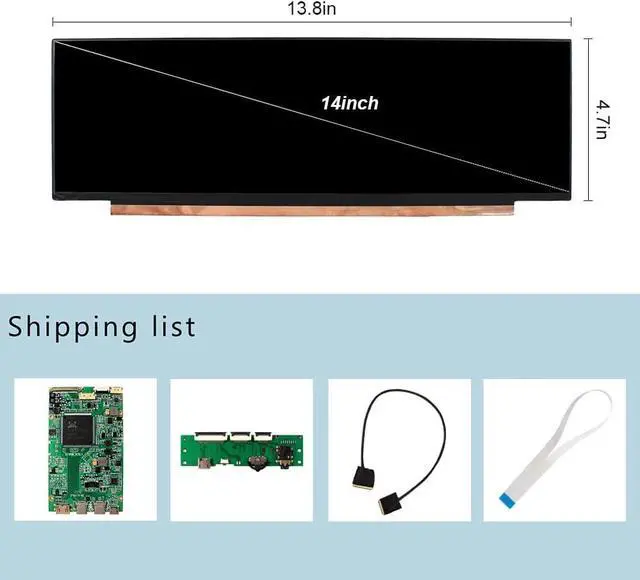

Packing list:
1× USB C LCD Controller
1× 14 inch NV140XTM-N52 3840X1100 IPS LCD Screen
1× Signal Cable
1× Keyboard With Cable
(Please notice that there is no power supply in the packing list,please prepare by yourself)
USB C Board For 4 Lane eDP Support Max 4096x2160 60Hz LCD Screen
Input Power Adapter: PD 5V dc USB C 18W
Come In Standby Model When Not Input Signal
Standby Model <1.2W
R: Support
Video Input
( max 3840x2160 60Hz Support CP2.2)
USB-C (Data Transmission Image Display 5V Max 3A output)
Audio Output: Earphone
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English French German Spanish Italian And So On
Board Size: 104.0mm x 62mm x 5mm
14" LCD Screen NV140XTM:
Display Mode AAS, Normally Black, Transmissive
Resolution 3840 (RGB)×1100
Outline Size 350.52(W)×118.65 (H) ×2.5(D) mm
Display Area 344.218(W)×98.604(H) mm
Brightness 300 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR10) [Left / Right / Up / Down]
Signal Interface eDP (4 Lanes) , Connector ,30 pins
Backlight WLED
Input Voltage 3.3V (Typ.)
Packing list:
1× USB C LCD Controller
1× 14 inch NV140XTM-N52 3840X1100 IPS LCD Screen
1× Signal Cable
1× Keyboard With Cable
(Please notice that there is no power supply in the packing list,please prepare by yourself)
